Allied Telesis AT-8000S Series User Manual

Configuring Device Security
Configuring Management Security
Page 39

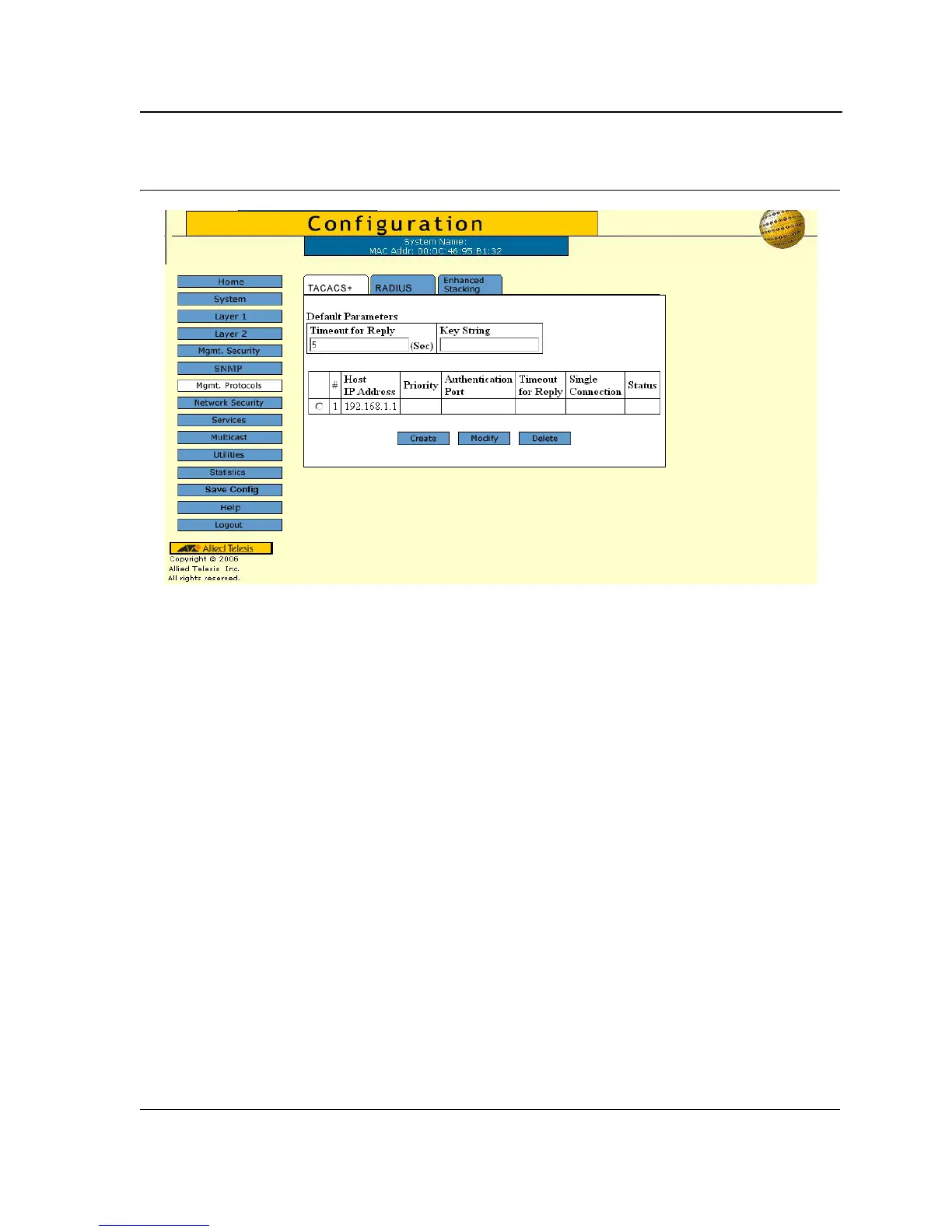

Figure 20: TACACS+ Configuration Page
The TACACS+ Configuration Page contains the following fields:
• Timeout for Reply — Defines the time interval in seconds that passes before the connection between the
device and the TACACS+ server times out. The field range is 1-60 seconds and the default is 10 seconds.
• Key String — Defines the default key string.
• Server # — Displays the server number.
• Host IP Address — Displays the TACACS+ server IP address.
• Priority — Defines the order in which the TACACS+ servers are used. The field range is 0-65535. The
default is 0.
• Authorization Port — Identifies the authentication port. The authentication port is used to verify the
TACACS+ server authentication.
• Timeout for Reply — Defines the time interval in seconds that passes before the connection between the
device and the TACACS+ server times out. The field range is 1-60 seconds and the default is 10 seconds.
• Single Connection — Maintains a single open connection between the device and the TACACS+ server.
The possible field values are:
– Checked — Enables a single connection.
– Unchecked — Disables a single connection.
• Status — Indicates the connection status between the device and the TACACS+ server. The possible field
values are:
– Connected — Indicates there is currently a connection between the device and the TACACS+ server.
– Not Connected — Indicates there is not currently a connection between the device and the TACACS+
server.
2. Click Create. The Add TACACS+ Page opens.

Allied Telesis AT-8000S Series Specifications

General

Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Humidity	5% to 95% non-condensing
Switching Capacity	104 Gbps
Forwarding Rate	77.4 Mpps
VLANs	4, 094
Layer 3 Features	Static routing, RIP v1/v2
Management	Web-based
Operating Humidity	10% to 90% non-condensing
