Allied Telesis AT-8000S Switch
Web Browser Interface User’s Guide
• Flow Control — Displays the flow control status of the trunk.
• LACP — Indicates if LACP is enabled on the trunk. The possible values are:
– Enable — LACP is enabled on the trunk.
– Disable — LACP is disabled on the trunk.
2. Click Modify. The Trunk Settings Page opens:

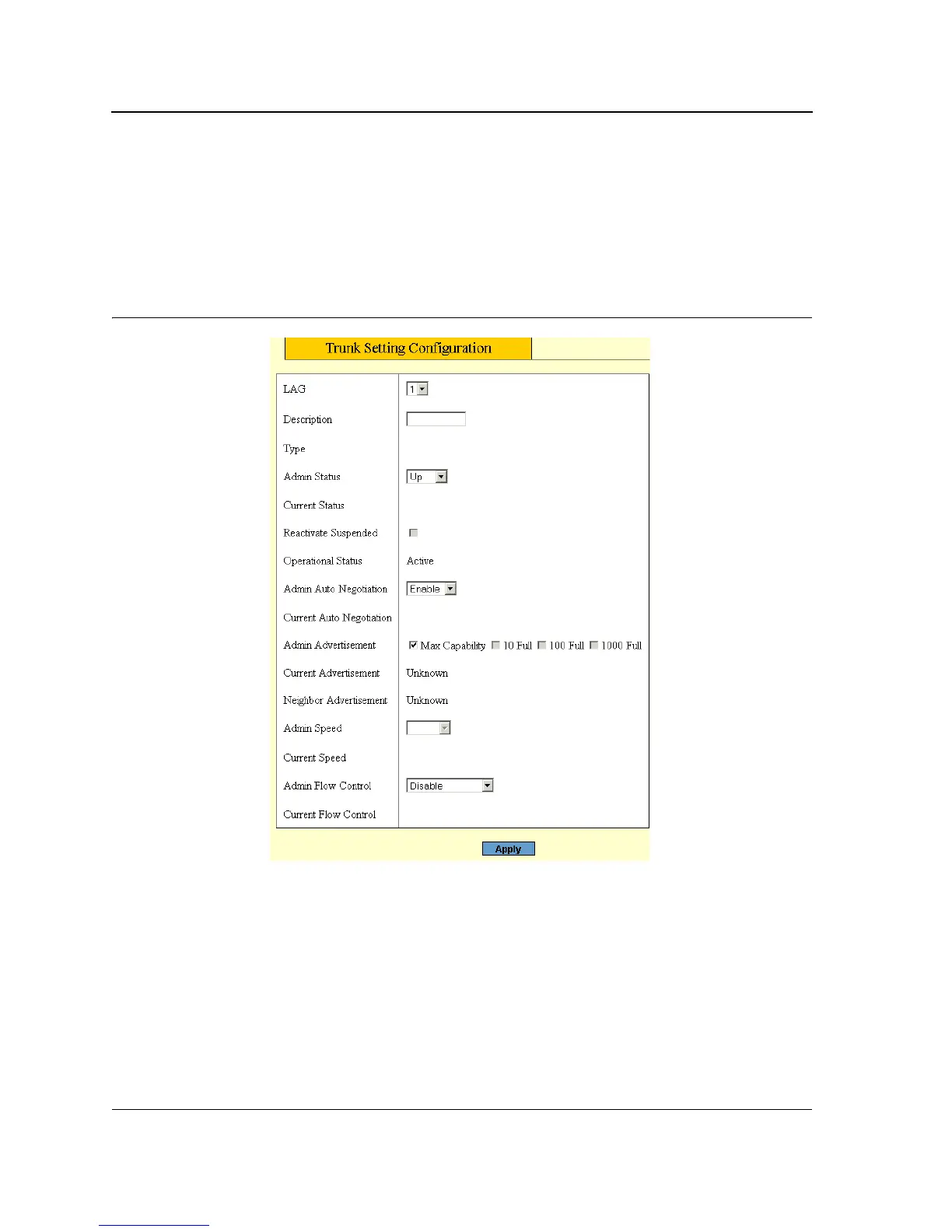

Figure 38: Trunk Configuration Settings Page
The Trunk Settings Page contains the following fields:
• Trunk— Lists the names of configured trunks.
• Description — Provides a user-defined trunk description.
• Type — Indicates the type of trunk.
• Admin Status — Displays the link operational status. Changes to the trunk state are active only after the
device is reset. The possible field values are:
– Up — Indicates that the trunk is currently operating.

Allied Telesis AT-8000S Series Specifications

General

Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Humidity	5% to 95% non-condensing
Switching Capacity	104 Gbps
Forwarding Rate	77.4 Mpps
VLANs	4, 094
Layer 3 Features	Static routing, RIP v1/v2
Management	Web-based
Operating Humidity	10% to 90% non-condensing
