Allied Telesis AT-8000S Switch
Web Browser Interface User’s Guide

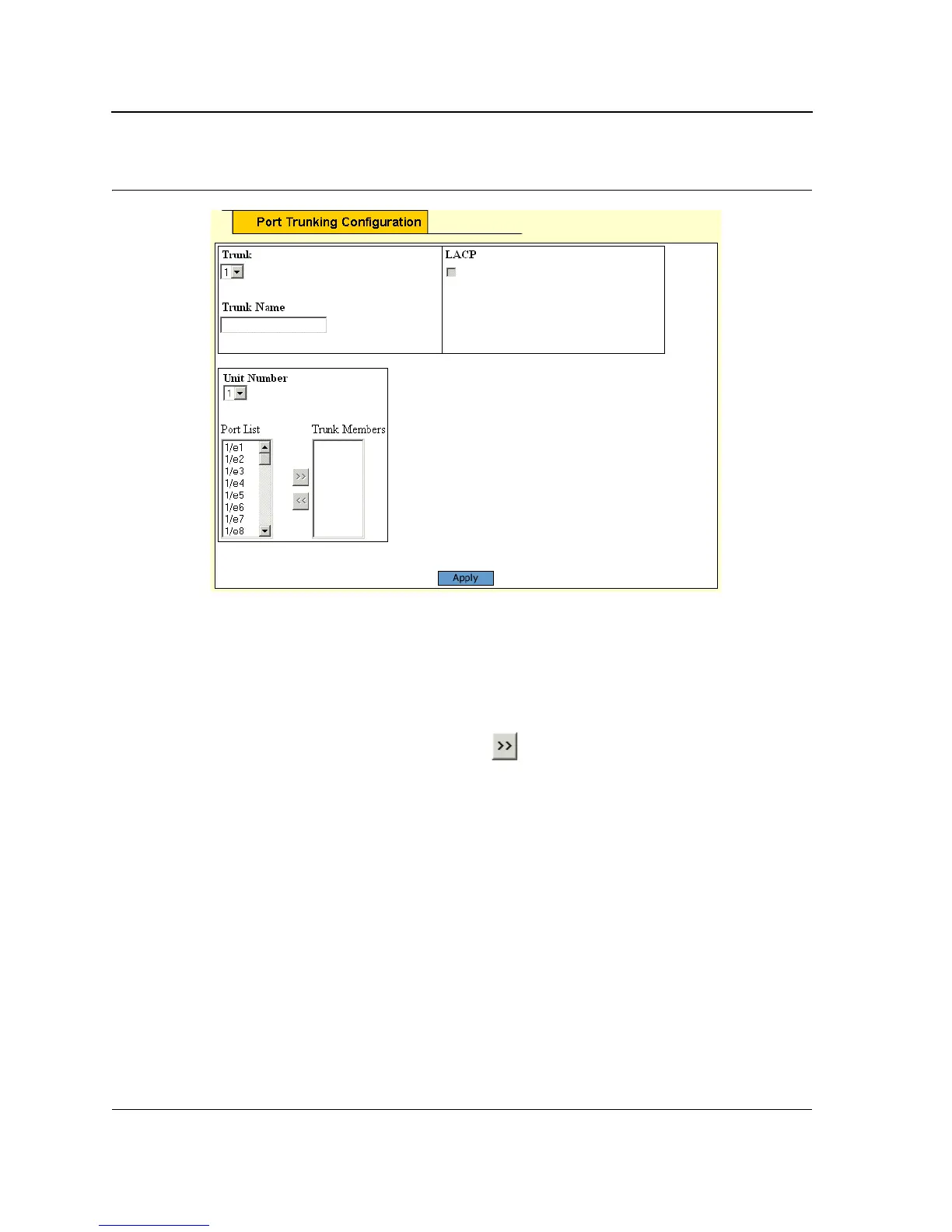

Figure 40: Modify Trunk Page
In addition to the fields in the The Port Trunking Page , the Modify Trunk Page contians the following additional
field:
• LACP — Indicates if LACP is enabled on the trunk. The possible field values are:
– Checked — Enables LACP on the trunk.
– Unchecked — Disables LACP on the trunk. This is the default value.
4. Modify the Trunk ID, LACP, Unit Number, and Trunk(LAG) Name fields.
5. Select the ports for the trunk from the Port List using the arrow. The selected ports are displayed as
Trunk Members.
6. Click Apply. Trunking information is modified and the device is updated.
7. Click Save Config in the Trunk Settings Page menu to permanently save the changes.

Allied Telesis AT-8000S Series Specifications

General

Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Humidity	5% to 95% non-condensing
Switching Capacity	104 Gbps
Forwarding Rate	77.4 Mpps
VLANs	4, 094
Layer 3 Features	Static routing, RIP v1/v2
Management	Web-based
Operating Humidity	10% to 90% non-condensing
