Allied Telesis AT-8000S Series User Manual

Configuring Spanning Tree
Configuring Classic Spanning Tree
Page 93

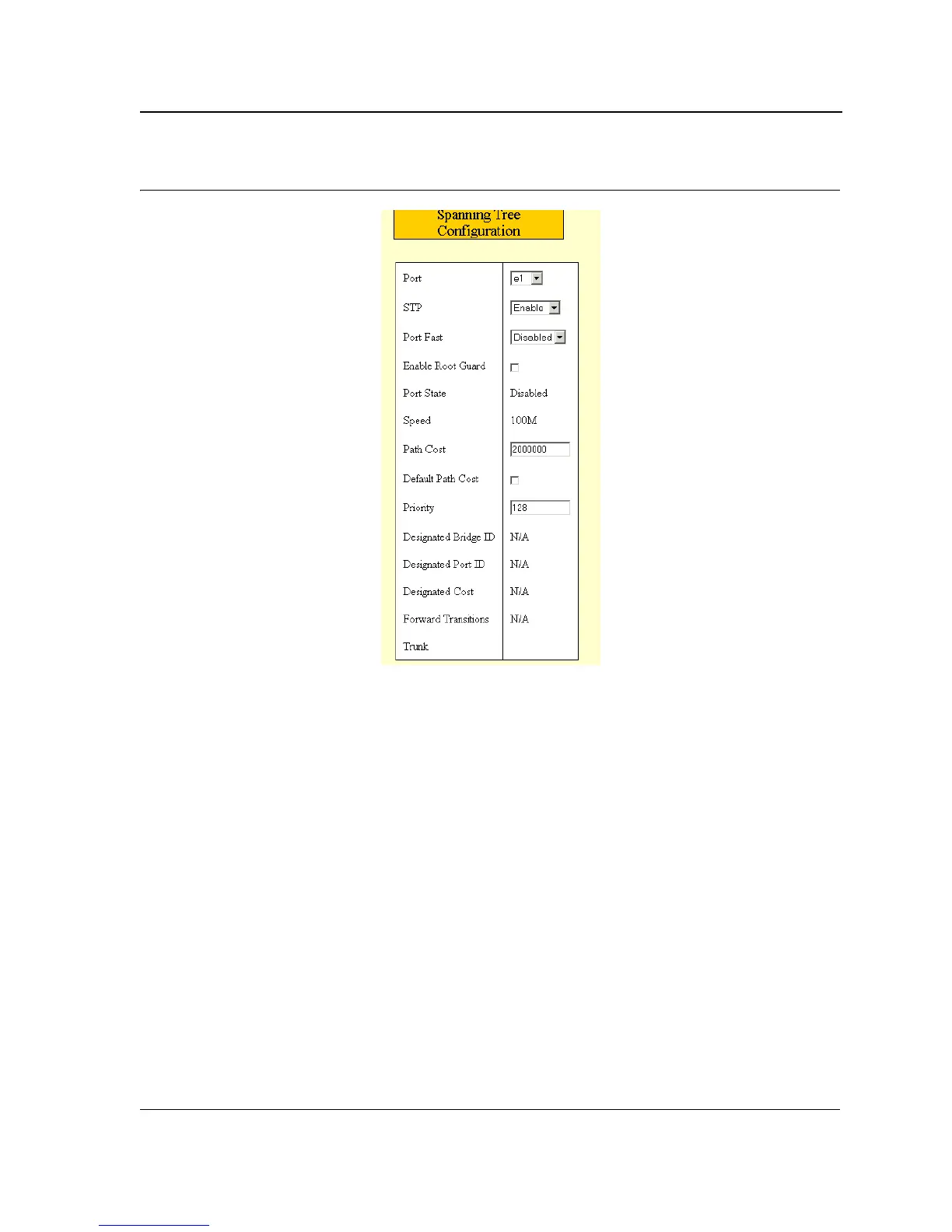

Figure 56: STP Modify Interface Configuration Page
5. Select Enable in the STP field.
6. Define the Port Fast, Enable Root Guard, Path Cost, Default Path Cost, and Priority fields.
7. Click Apply. STP is enabled on the interface, and the device is updated.

Allied Telesis AT-8000S Series Specifications

General

Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Humidity	5% to 95% non-condensing
Switching Capacity	104 Gbps
Forwarding Rate	77.4 Mpps
VLANs	4, 094
Layer 3 Features	Static routing, RIP v1/v2
Management	Web-based
Operating Humidity	10% to 90% non-condensing
