Temperature Control
The Temperature Control dialog box contains temperature control param-
eters for all of the temperature zones measured by the analyzer.
‘**’ following the parameter names below indicates the parameter
should only be modified by a trained technician.
See also “Optical Bench Temperature Control,” “Measuring Cell
(Oven) Temperature Control (Optional),” or “Column Block Tempera-
ture Control” in the following pages.
Bench
The measure Range (°C) for the Optical Bench.
Cell
The measure Range (°C) for the Measuring Cell/Oven (optional).
Column
The parameters for the Column Block.
Setpoint
The control setpoint for each temperature zone (°C). This value is the
temperature control setpoint at which an alarm Warning or Fault will
be set and displayed in the software, and is used to alert the operator to
analyzer operating conditions.
NOTE
NOTE

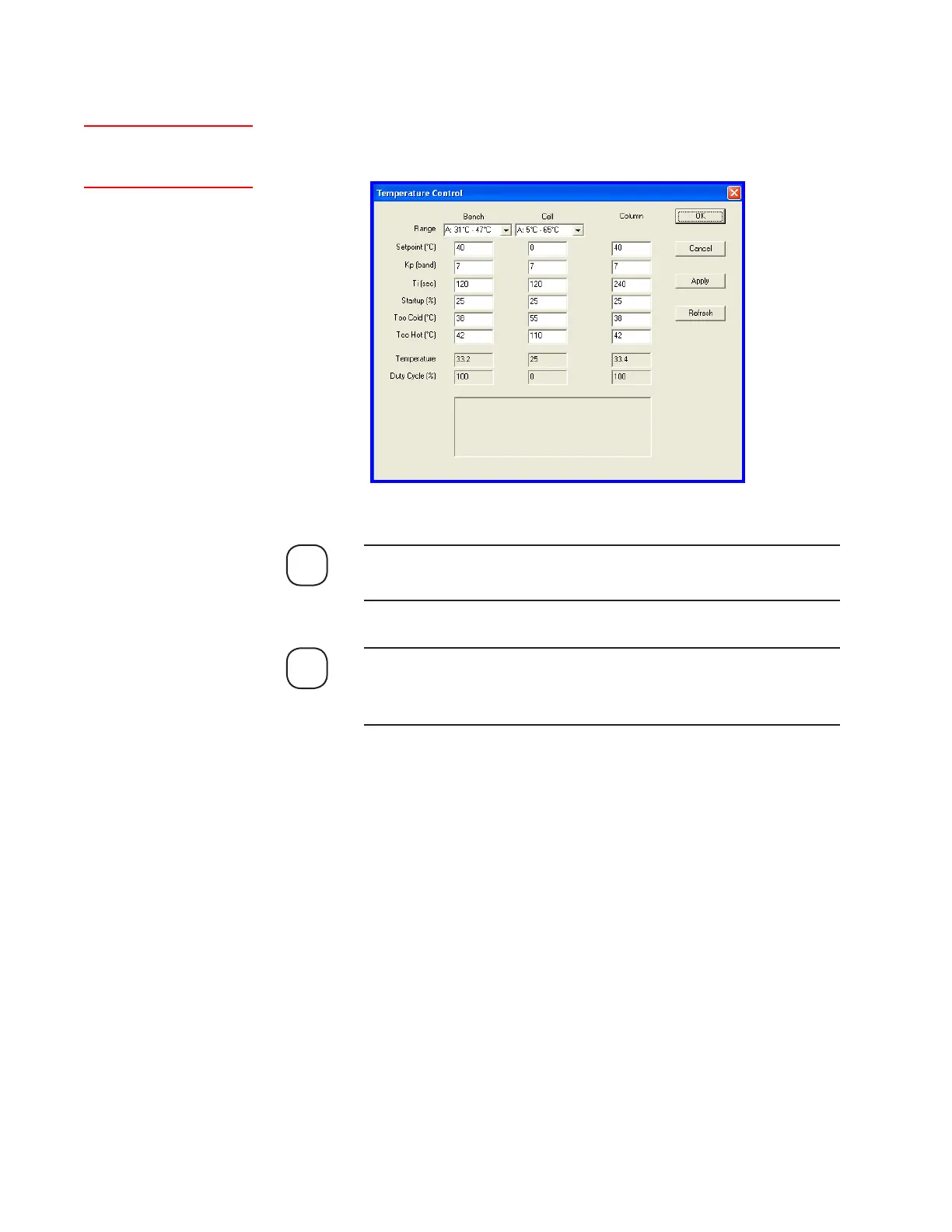

Figure 4-12.
Temperature Control
dialog box.
