A-22 | Model 933S UV
Analyzer
LAYOUT MAY NOT BE EXACTLY AS SHOWN
LOOSE
CLAMPED
OPTICAL BENCH REMOVAL/INSTALLATION

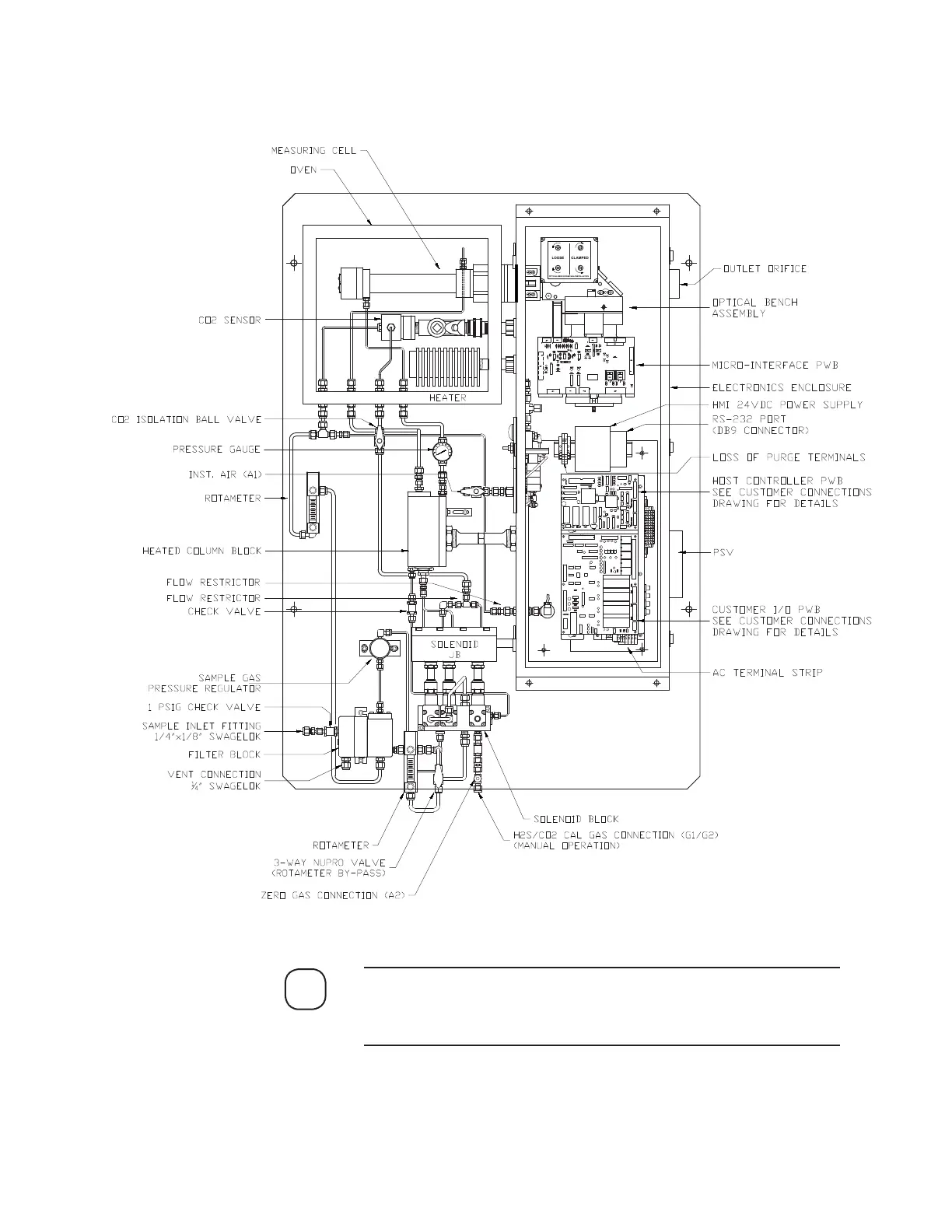

Backpan Component Layout, Division 2
Analyzer with Sensor
(Example)
Refer to the Final “
As-Built” drawings for analyzer models similar
to this. These drawings are located in the Documentation P
ack
age
shipped with the analyzer
.
NOTE
285
287
