Controller / User Interface | 4-47
Matrix
The Matrix dialog box displays information that is responsible for partially
calculating the concentration output and negating the effects of cross-talk
by interfering gas species.
‘**’ following the parameter names below indicates the parameter
should only be modified by a trained technician.
Species**
Designates which gas species are currently configured.
Row/Filter**
Displays the value for each species of gas (Row 1–6) and each column
(Filter 1–6) in the calculation matrix.

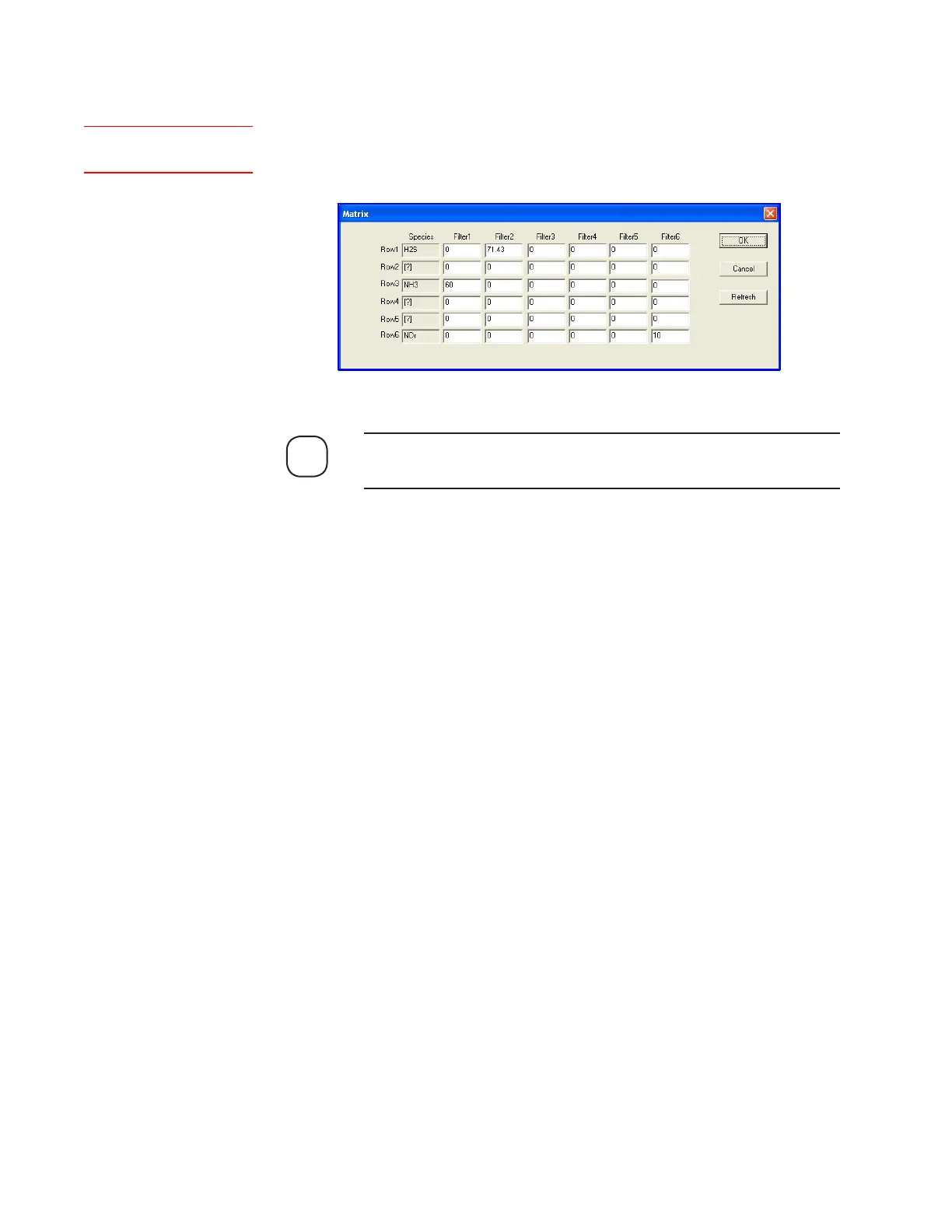

Figure 4-16.
Matrix dialog box.
NOTE
Setup (tab)Matrix
To Next Page
