4-62 | Model 933S UV Analyzer
Viewing Analyzer Data
The Status, Analyzer Data, and Optical Bench tabs allow you to view
real-time and historical analyzer data. These screens are particularly
useful when performing analyzer diagnostics.
To exit these screens or to view or set up other system information,
choose another tab. Clicking OK or Cancel will take you back to the
Configurator Software main window. To re-establish computer-ana-
lyzer communications, double-click Dev1 (<<Device Name>>) on
the Devices & Log window.
Status Tab
The Status tab displays live species concentration values and any active
system alarm conditions (current and historical) associated with the HC
Scode (Host Controller Status Code) and MC Scode (Microcontroller
Status Code).

NOTE

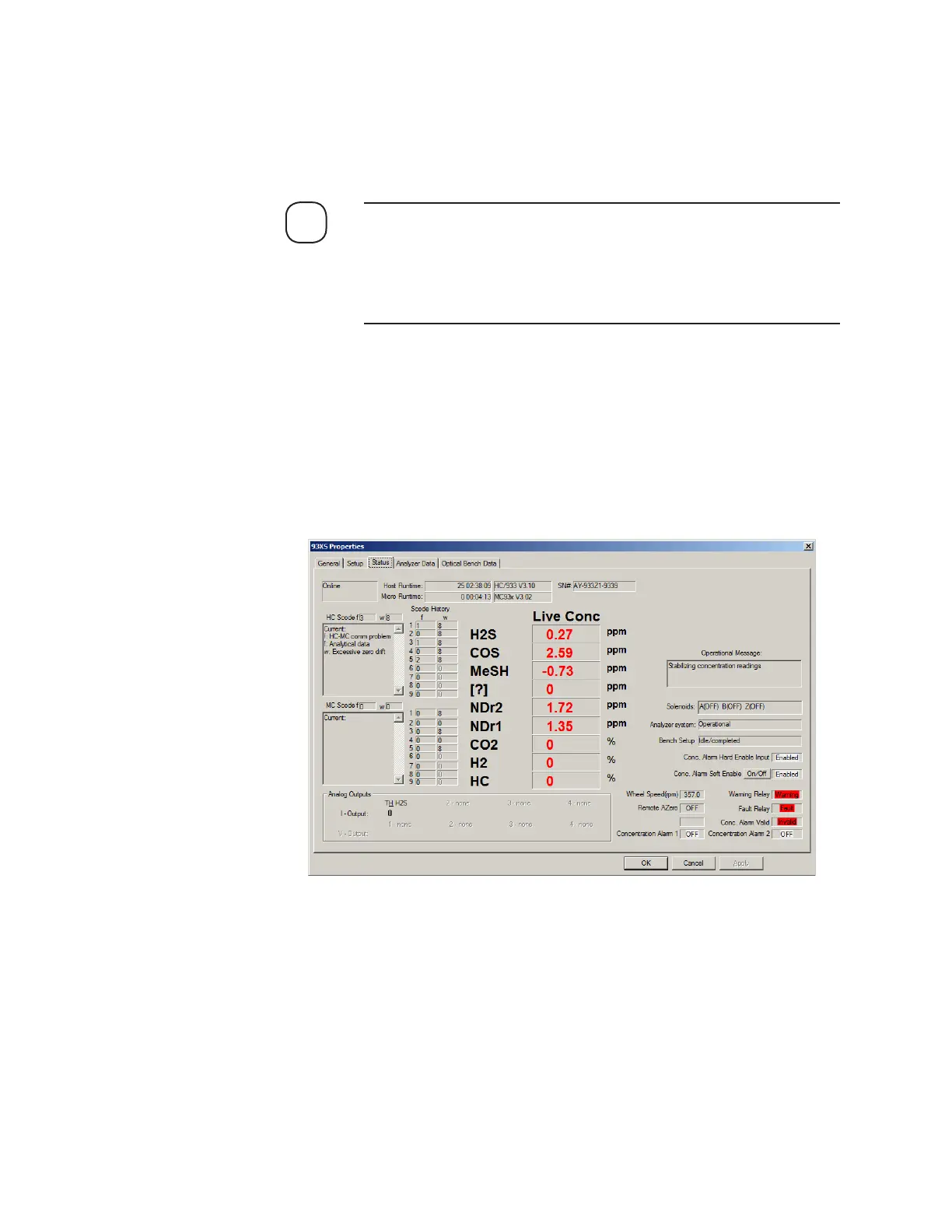

Figure 4-23.
Status tab.
System Status Messages along the top portion of this screen display in-
formation about the analyzer and the Configurator Software, includ-
ing:
Analyzer Status
Displays the communication status between the analyzer and the
Configurator Software. Messages that can appear here include:
Online, OFFLINE, DISABLED, Wrong Device (if the analyzer can-
not be recognized), or DEMO.
