4-56 | Model 933S UV Analyzer
Alarm Setting and Stream Switch Parameters
The Alarm Setting and Stream Switch Parameters dialog box contains gas
species information and sample system control parameters.
Species to Auto-Span Mapping
Species Defines the species to be auto-spanned. This
is a calibration function, and is related to the
parameters on the Gas Calibration dialog
box.
Span 1 The available options will vary, depending
on the application.
Span 2 The available options will vary, depending
on the application.

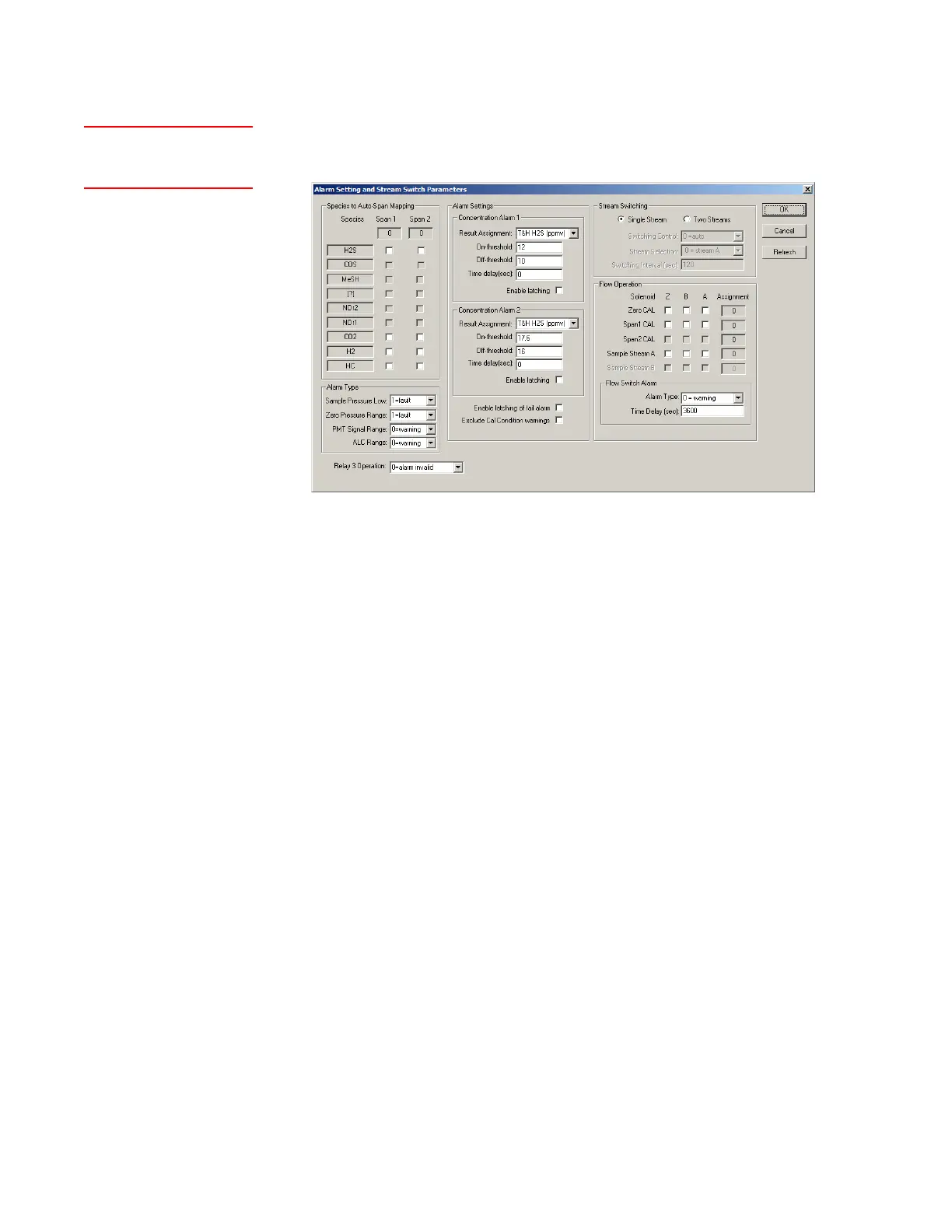

Figure 4-20.
Alarm Setting and
Stream Switch
Parameters dialog
box.
Setup (tab)Alarm/
Stream Switch
To Next Page
