Overview | 1-5

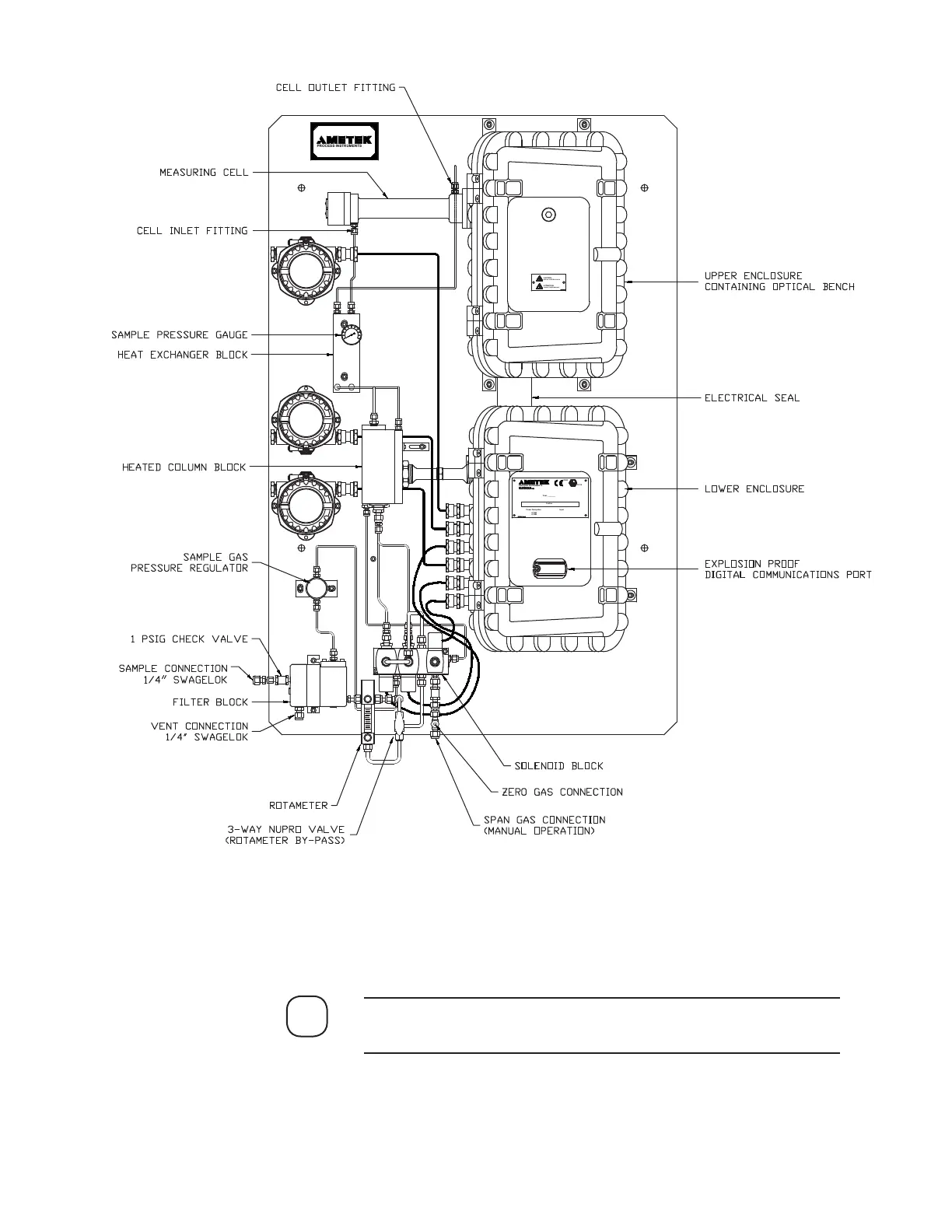

Figure 1-3.
Backpan component layout
(European).
See Appendix A for a North American style drawing (or Final “As-
Built” drawings, if ordered, in the analyzer Documentation Package).
NOTE
MAY NOT BE EXACTLY AS SHOWN
Certificate No: KEMA 02ATEX2247, EEx d IIB T3 (T amb. 0°C...50°C)
Western Research Model 933 Analyzer
Serial No. __________________
Do not open when an explosive gas atmosphere is present.
120VAC 50/60Hz 2A max.
240VAC 50/60Hz 1A max.
GAS ATMOSPHERE IS PRESENT
DO NOT OPEN IF A HAZARDOUS
SERIAL COMMUNICATIONS PORT
