Maintenance and T
roubleshooting
|
6-51
c.
Disconnect the ter
minals of the green/yellow ground wire that
runs from the interior bottom of the Upper Enclosure to the Opti-
cal Bench.
d.
Optional:
If your analyzer uses the Optical Bench Purge, discon-
nect the purge line (black tube) from the Optical Bench Purge
Fitting (F
igure 6-14).

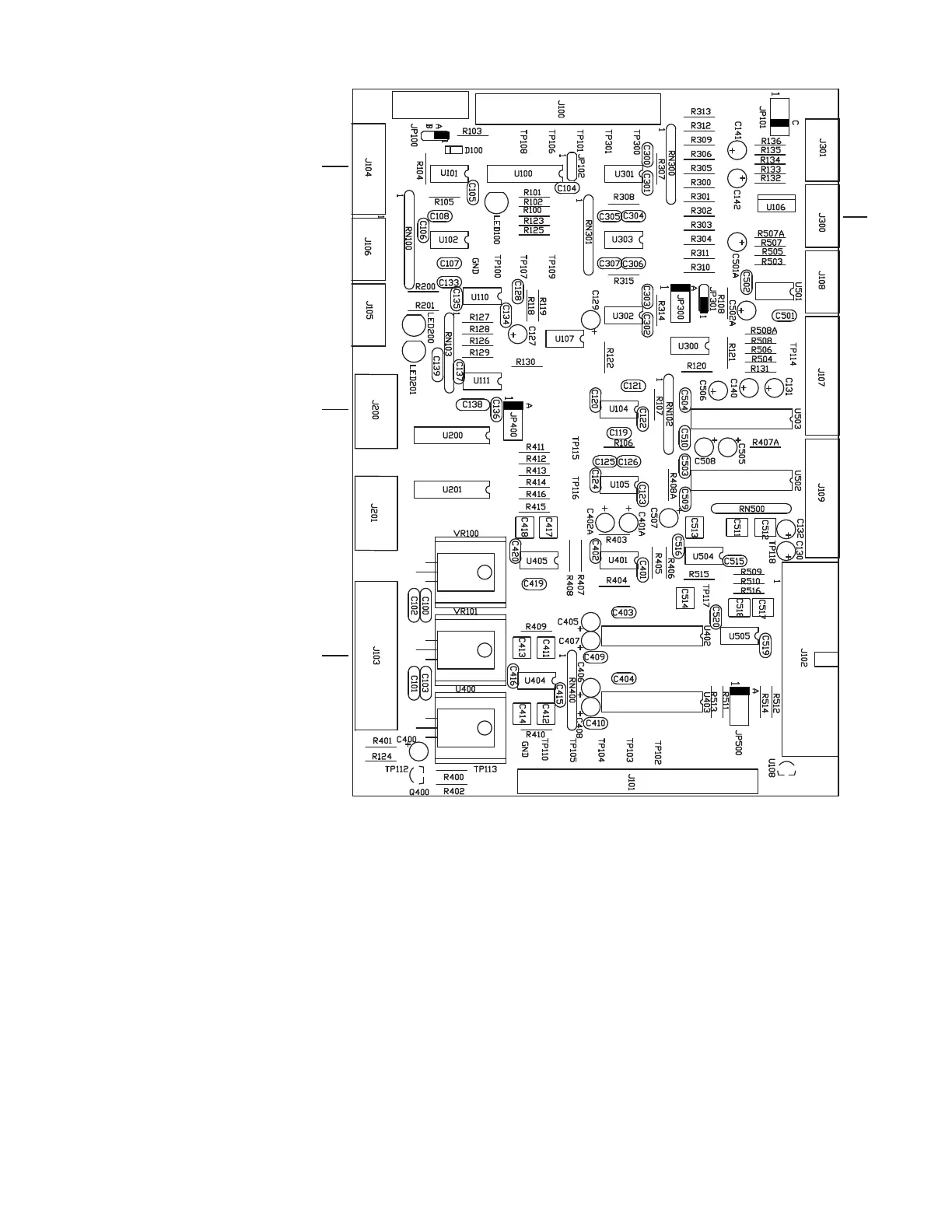

Figure 6-13.
Micro-Interface board
(100-2231).
J103
J104
J200
J300
226
228
