Page 6

EVACU ELITE

INSTALLATION, COMMISSIONING AND USER MANUAL

4 System Description

4.1 General

The EvacU

ELITE

is a modular EWIS that consists of a number of cards supported in one or more universal

rack frames, with a scalable power supply and graphical user interface, housed in a metal cabinet. The

cabinet is available in two cabinet sizes: 13U and 24U.

Both cabinets can accommodate a FireFinder

PLUS

in the top section when a COMBO solution is

required.

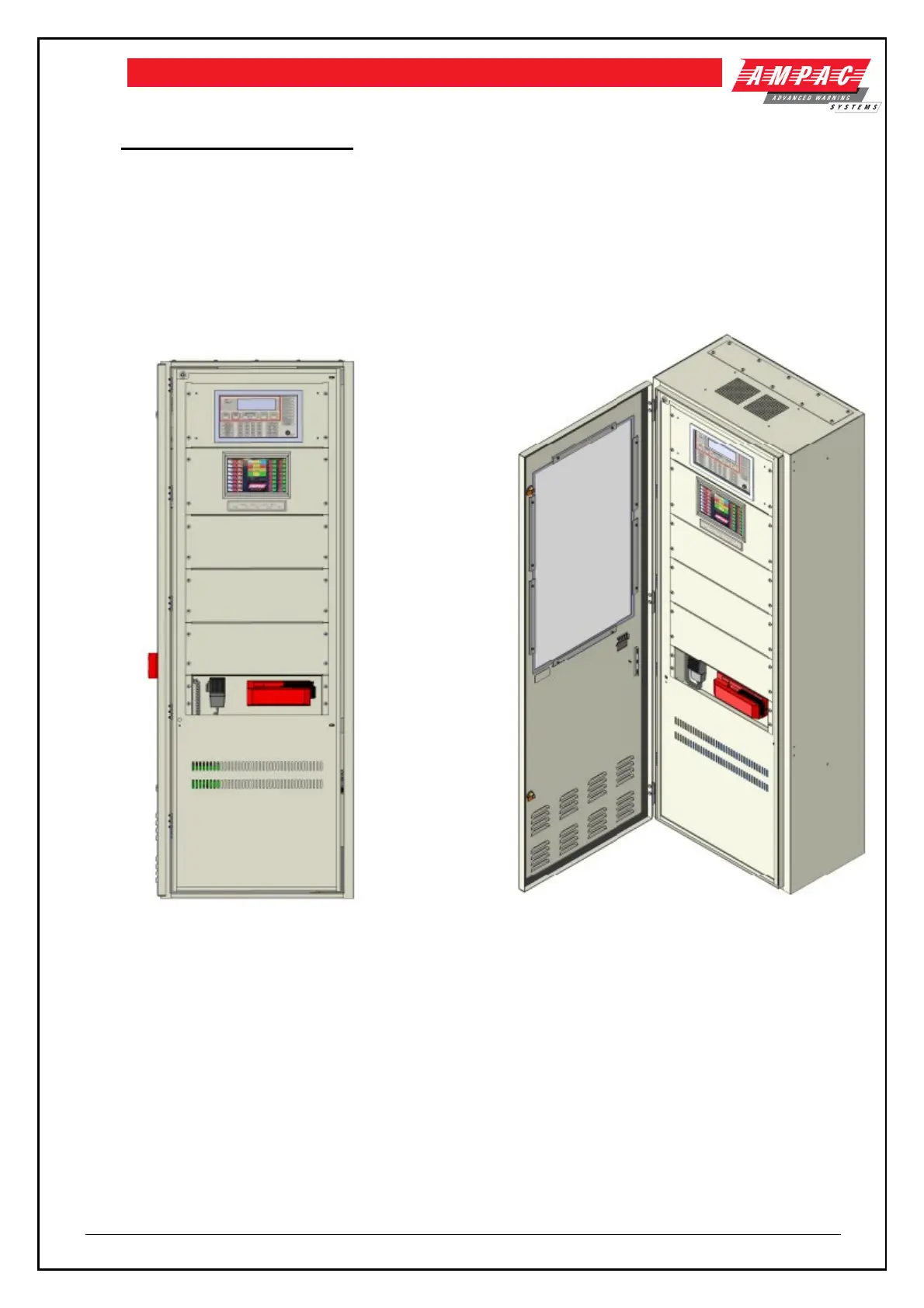

Figure 4-1 - EvacU

ELITE

and FireFinder

PLUS

24U COMBO unit - external view

Figure 4-1 above shows an external view of the EvacU ELITE and FireFinder PLUS. The cabinet size

is 24U. Cabinet has been designed so all controls are 750mm from floor level.
