EVACU ELITE INSTALLATION, COMMISSIONING AND USER MANUAL

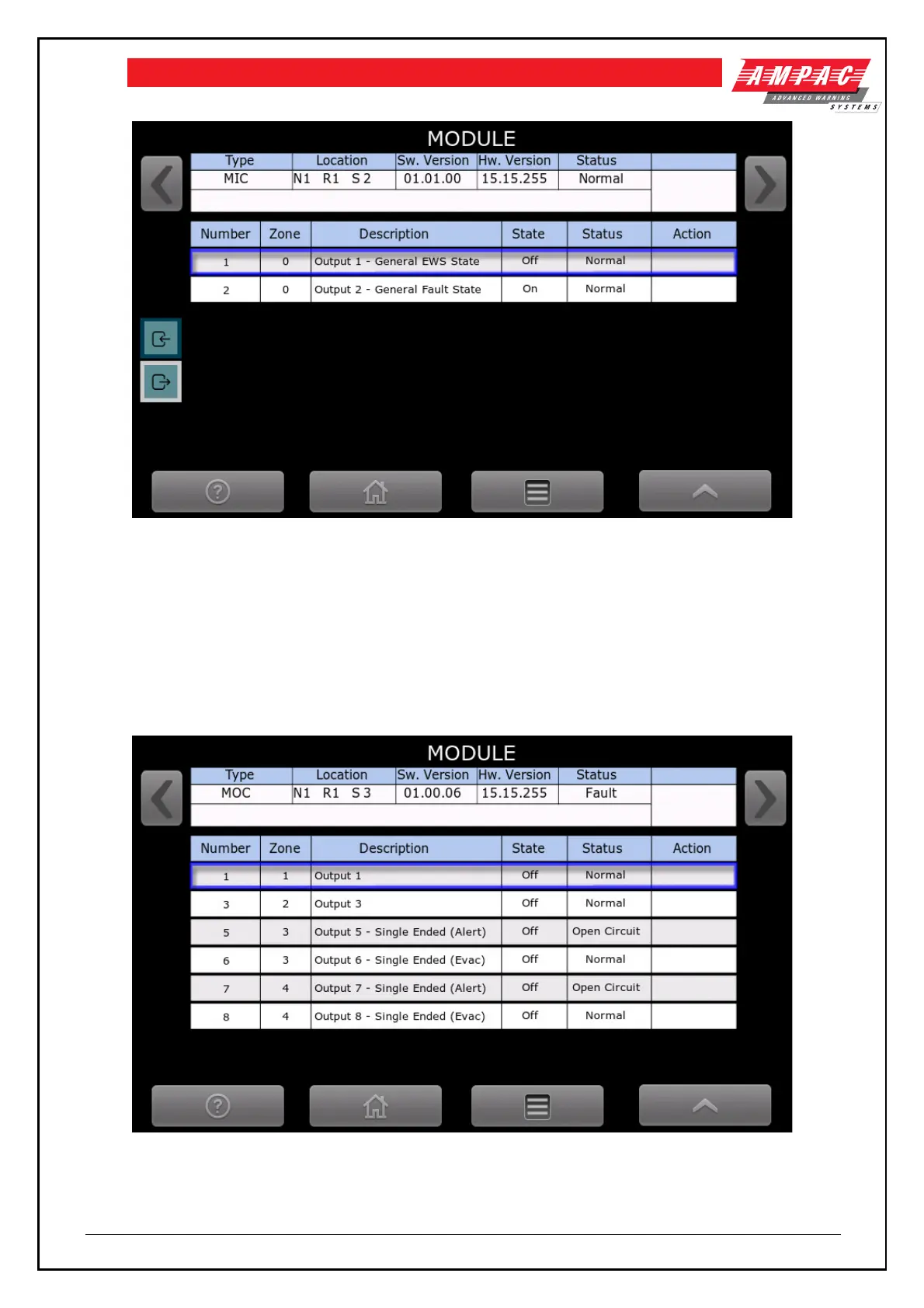

Figure 6-11 Multi-purpose interface card showing the outputs
There is a record for each of the 2 outputs, showing the output type, allocated zone number, descriptor, state
and status.
6.3.4 Multi-purpose output card
The multi-purpose output card has 8 outputs, and outputs can be formed into pairs. (refer to section 4.2.4.2).
The status screen for the Multi-purpose output card shows the modules status and the status of the outputs
as follows:
Figure 6-12 Multi-purpose output card status screen
