Ampac EvacU Elite - Figure 4-18 150-Way Amplifier

To Next Page

To Previous Page

Page 19

EVACU ELITE

INSTALLATION, COMMISSIONING AND USER MANUAL

4.2.4.6 150Watt Amplifier Card

Occupies two slots

Provides one 150watt amplifier with an integrated 4way audio splitter. Each audio output is individually

switchable and DC supervised with a nominal 47kΩ.

Audio output #1 is rated at 150watt, and the remaining audio outputs (2, 3 and 4) are rated at 75watt

max each.

Note 1: * items not covered by LPCB certification at this point in time.

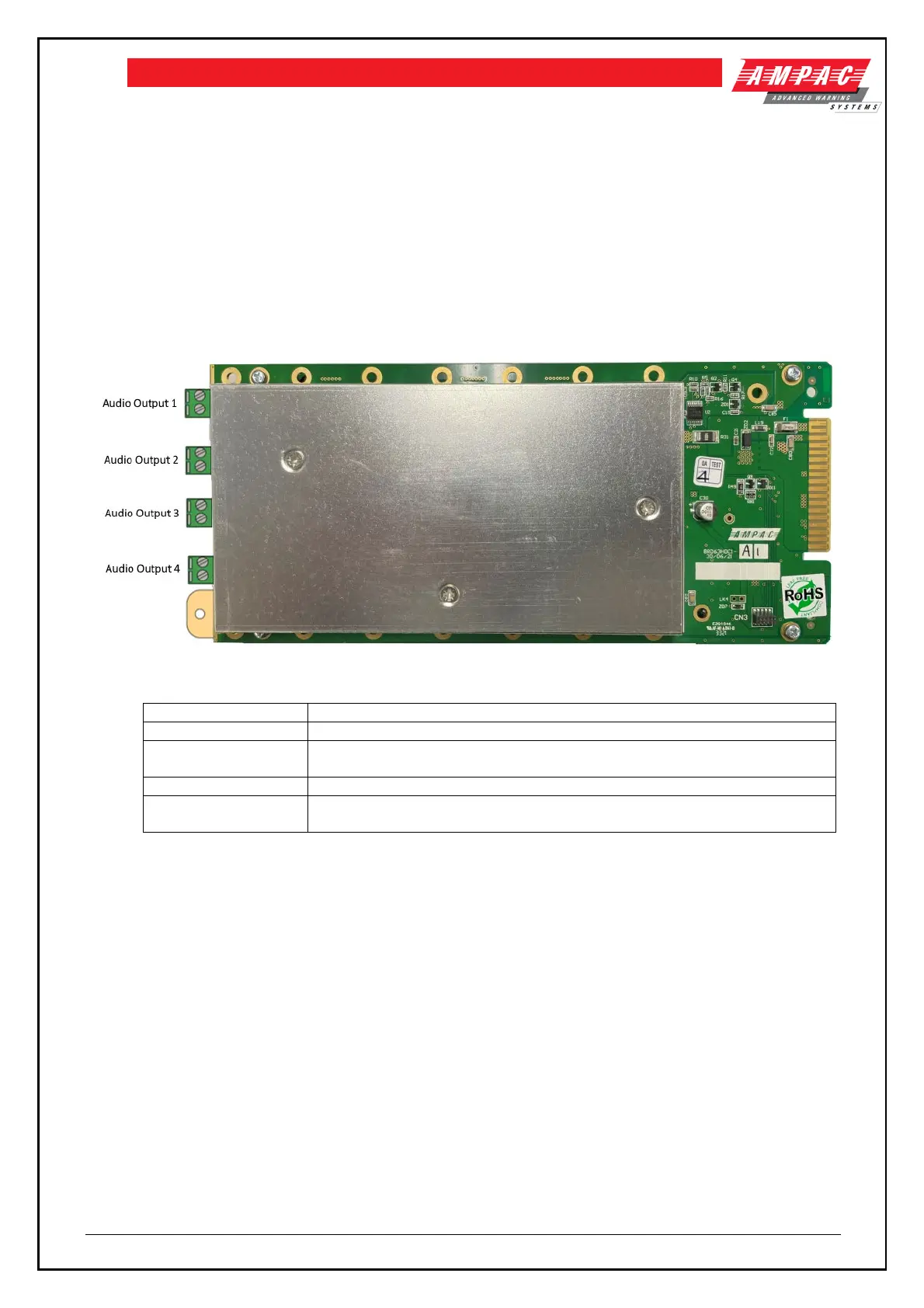

Figure 4-18 150-way amplifier

Max Drive Voltage

100V rms @ full load

Distortion

<=0.3%@ 150Watt x1

Frequency Response

(AS 4428.16)

300 Hz to 10kHz +/- 1dB w.r.t. 1kHz

150 Hz to 12kHz +/- 3dB w.r.t. 1kHz

SNR

>=70db

Speaker Circuit

Monitoring

DC, nominal 47kΩ

4.2.4.7 Quad Radial EIS line card

Occupies one slot

Provides 4 individually supervised interfaces to a handset and associated manual call point.
