EVACU ELITE

INSTALLATION, COMMISSIONING AND USER MANUAL

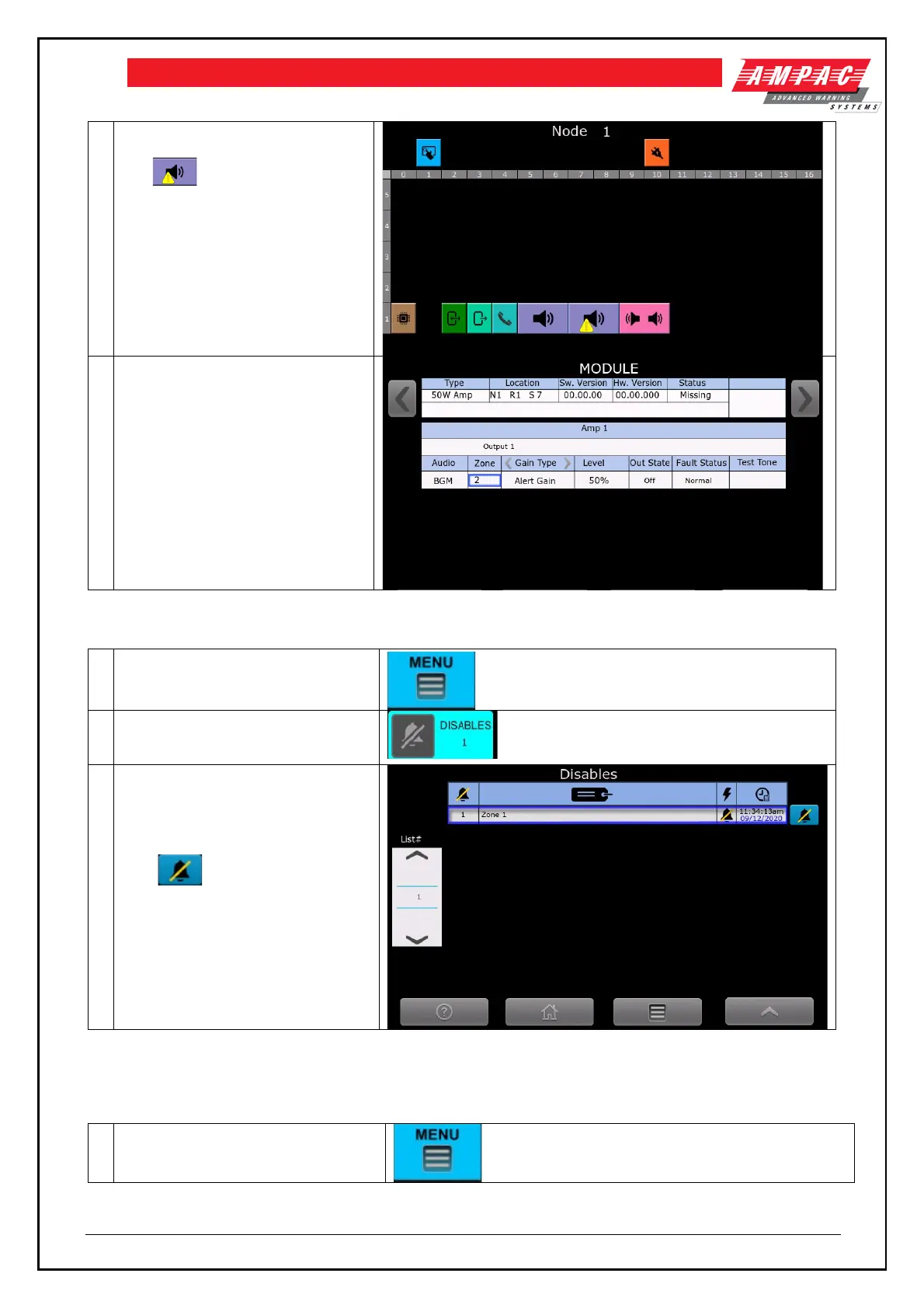

Node 1 Screen

The shows there is a fault on

the 50watt amplifier in slot 7/8

Amplifier status screen

From the status screen – the status

of the module is missing

6.8 Disables

Menu control

Disables control – only if there is at

least one emergency zone disable.

Control shows 1 disable condition

Disable Screen

Shows a list of

zones that are

disabled, with a date and time tag.

The control

will toggle the

disable state.

6.9 Logs

To access the Logs screen, the following controls are activated

Menu control

Main Page
