EVACU ELITE INSTALLATION, COMMISSIONING AND USER MANUAL

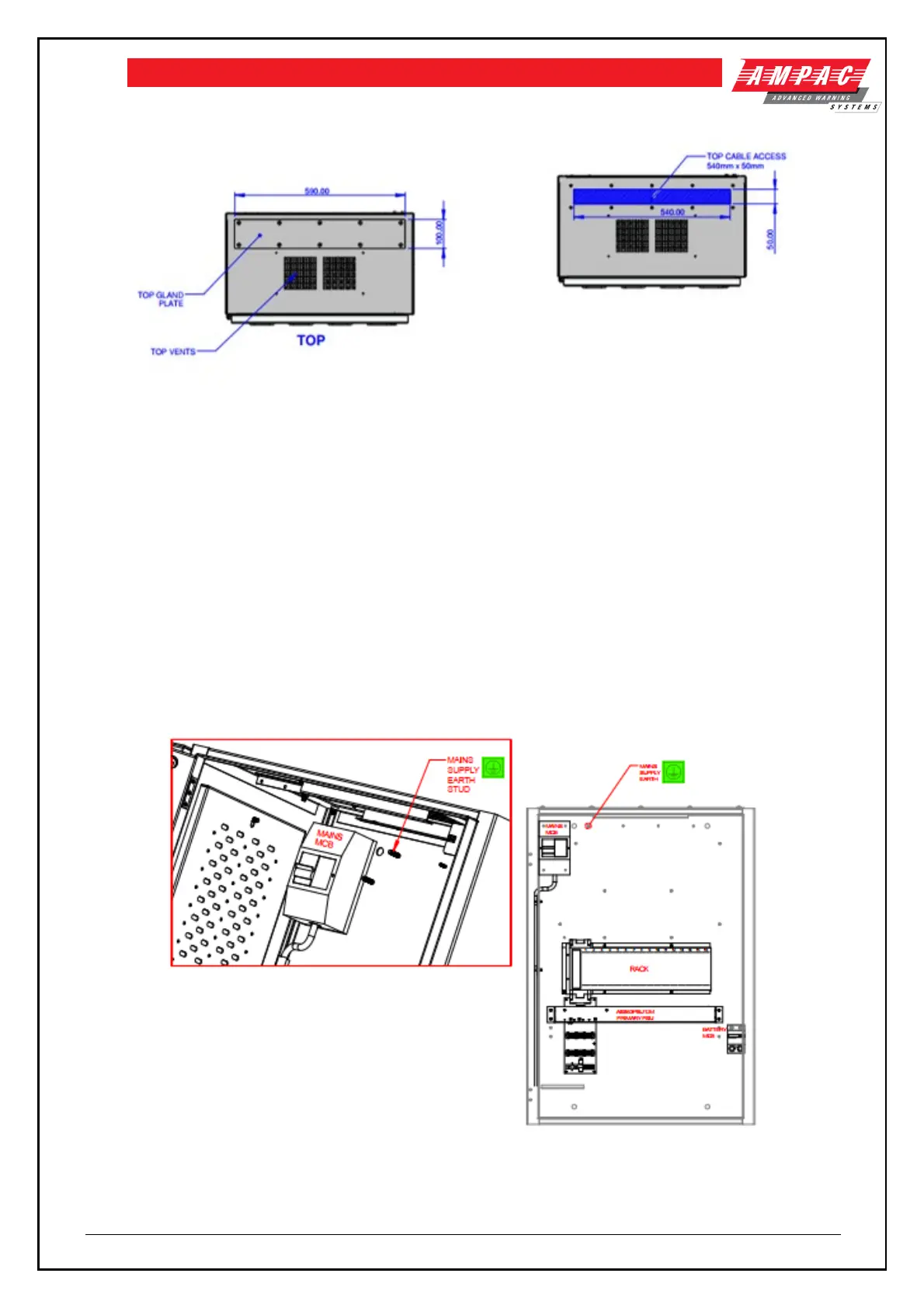

Figure 7-6 13U Cabinet - Top view showing gland plate and cable entry
7.5 Mains termination
The cabinets (13U and 24U) are fitted with a mains isolator and earth stud, located in the top left-hand corner
of the cabinet.
Please ensure the mains is connected – using the appropriately rated cable. The mains cable should conform
to one of the following standards: AS/CA S008, AS/NZS 3191, AS/NZS 5000.1, AS/NZS 3808 or marked with
VW-1.
The circuit breaker in the 24U is rated at 25 amps and 16 amps for the 13U cabinet. Recommended cable for
the 24U is 2.5mm
2
and 1.5mm
2
for the 13U.
Following diagrams show the location of the mains isolator and earth point.
Figure 7-7 13U Cabinet showing the mains isolator, earth point and battery isolator
