Ampac EvacU Elite - Figure 4-7 Secondary Power Supply Labelling

To Next Page

To Previous Page

Page 11

EVACU ELITE

INSTALLATION, COMMISSIONING AND USER MANUAL

Following labelling is used on the secondary power supply module

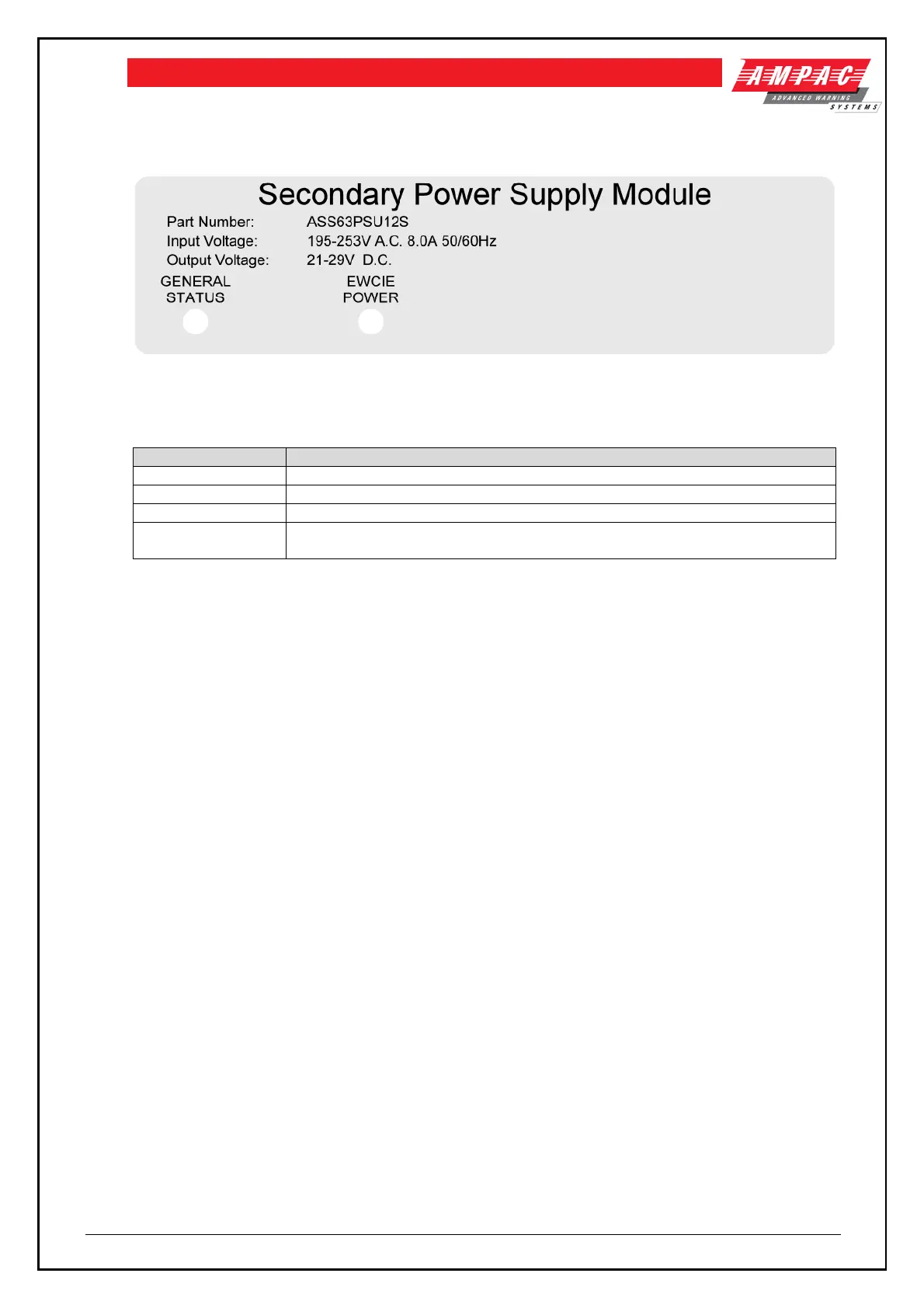

Figure 4-7 Secondary power supply labelling

General Status

LED Indication

Condition

Off

No power

Green steady

Normal – mains available

Green flashing

Mains is off – running from the standby power source

Yellow flashing

Fault – for example blown fuse, incorrect checksum, PSU fault, bus fault,

charger damage

EWCIE Power – indicator lit when power is available to the EWCIE

4.2.2.3 Power Distribution Board

The power distribution board routes the power from the power supply modules to the cards mounted in the

universal racks and provides termination for the main power source and standby power source.
