Page 16
EVACU ELITE INSTALLATION, COMMISSIONING AND USER MANUAL

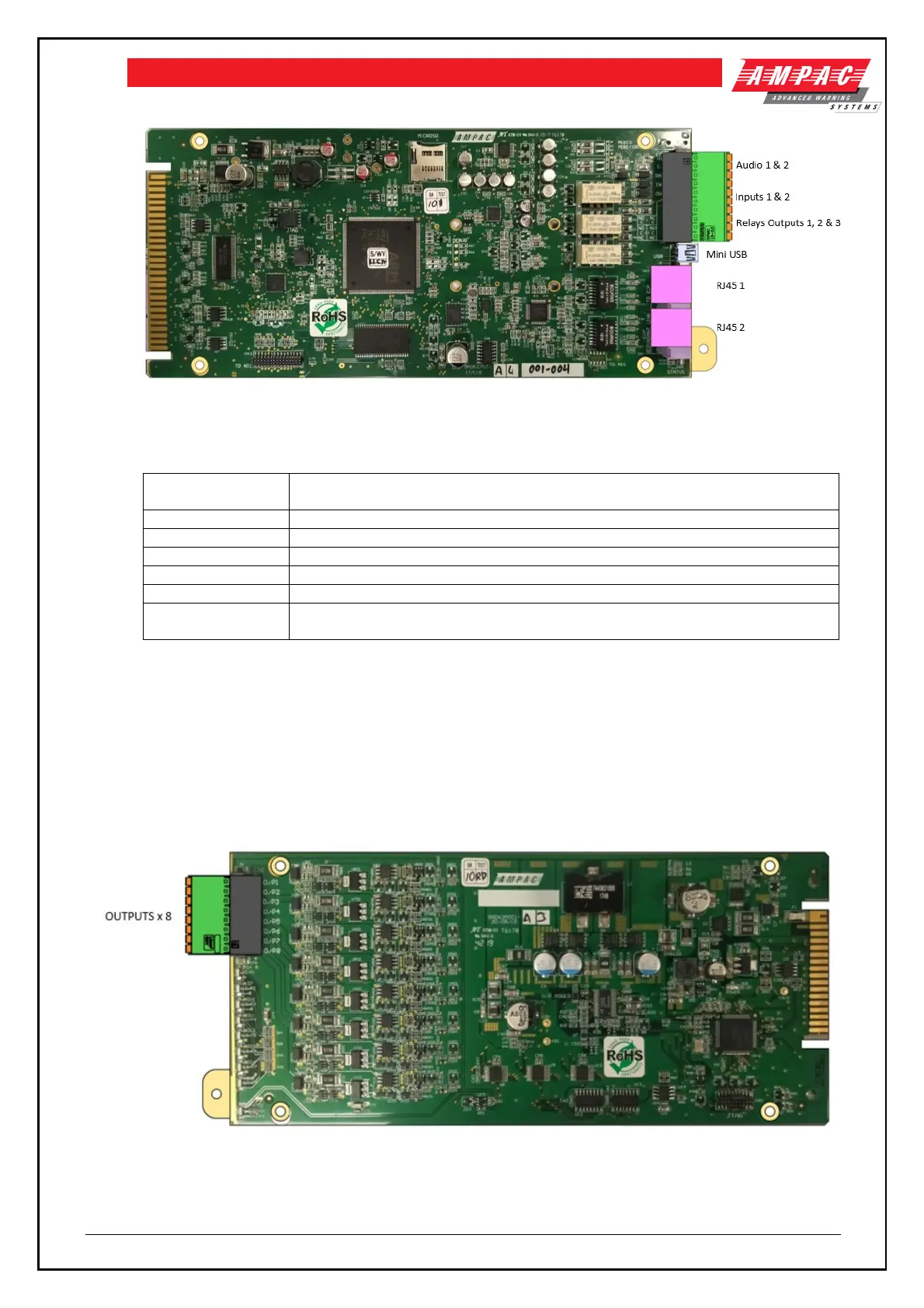

Figure 4-13 Distribution CPU
The distribution CPU provides the following connections:
Audio 1 & 2
Analog line level audio input (hot, cold and shield), 10kΩ impedance, max
input +4dBu
Input 1 & 2
Supervised input, selectable EOL, common reference.
Relay 1
Double pole, single throw (1 x NO, 1 x NC, 2 x COM)
Relay 2 & 3
Single pole, double throw (COM, NO, NC)
Mini USB
For future use
RJ45 1
Provides a CAT5/6 network connection to the front panel GUI
RJ45 2
Redundant CAT 5/6 ethernet connection to the front panel GUI / Remote
paging consoles
4.2.4.2 Multi-purpose output card
Occupies one slot.
Provides eight single ended supervised outputs, suitable for driving alarm warning devices such as
strobes (VADs) or vibrating pads.
Each pair of outputs can be configured as a reverse polarity output, suitable for driving Ampac
alert/evac strobes. Refer to section 8.3 for suitable alert and evac strobes.
Figure 4-14 Multi-purpose output card
