EVACU ELITE INSTALLATION, COMMISSIONING AND USER MANUAL
4107-1156
VXB-VW Wall mount red flash deep red body
4107-1157
VXB-VW Wall mount white flash shallow red body
4107-1158
VXB-VW Wall mount white flash deep red body
4107-1159
VXB-VW Wall mount amber flash shallow white body
4107-1160
VXB-VW Wall mount amber flash deep white body
Dual ceiling mount strobes
Item Number
Description
4107-1131
Dual VXB Ceiling mount red and white flash shallow white body
4107-1132
Dual VXB Ceiling mount red and white flash deep white body
4107-1133
Dual VXB Ceiling mount red and amber flash shallow white body
4107-1134
Dual VXB Ceiling mount red and amber flash deep white body
Cabling
No. of
Devices
1.0mm
2
Field Wiring
1.5mm
2
Field Wiring
10
444m
620m
20
222m
310m
30
148m
207m
40
111m
155m

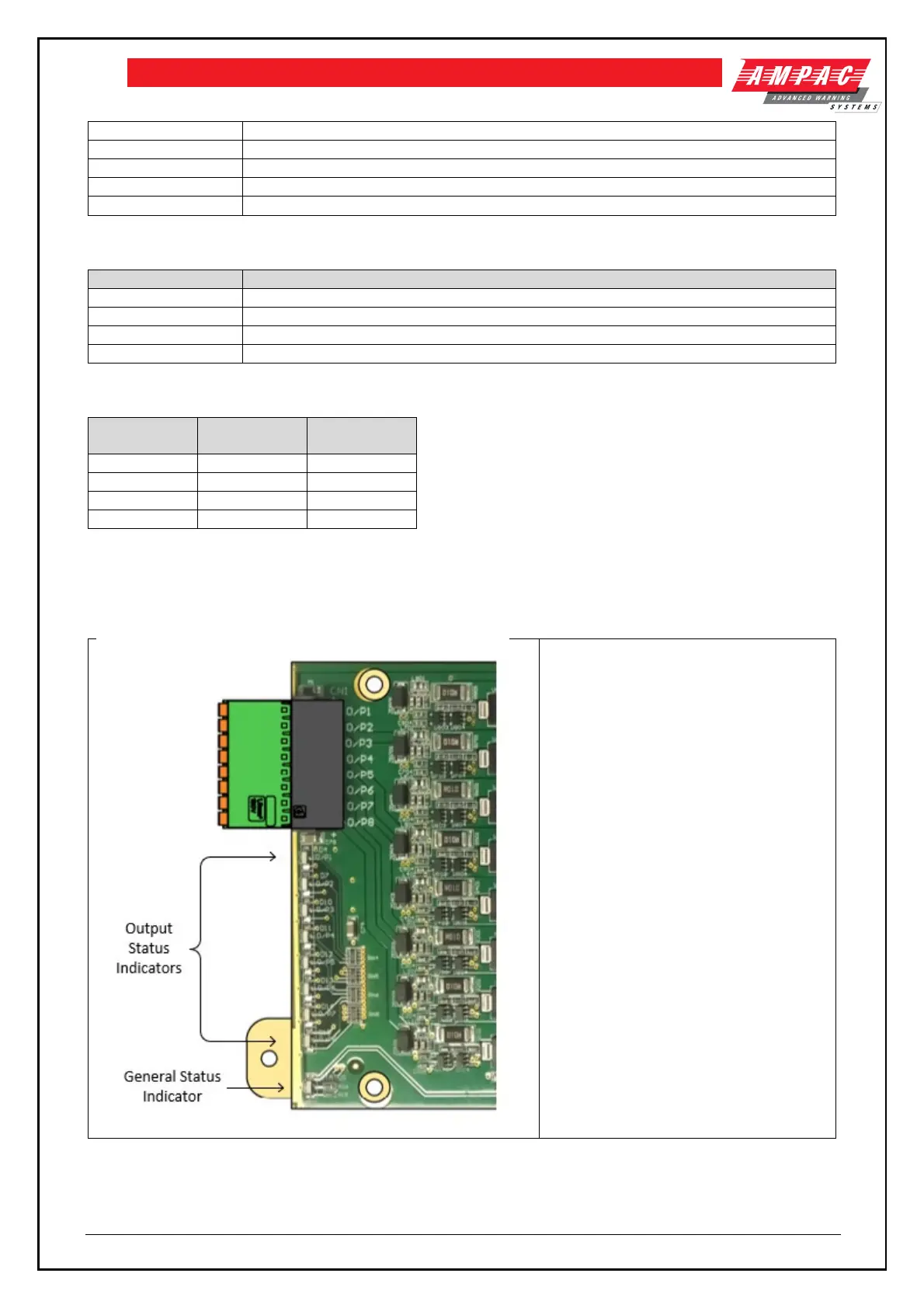

8.3.2 Indicators
The Multi-purpose output card (MOC) has one status indicator per output (8) and a general status indicator.
See below
Output Status Indicators
Dual indicators
RED: Output is activated
FLASHING AMBER – Fault condition
General Status Indicator
OFF: cards have no power or processor
is fault
FLASHING GREEN: board is operating,
no faults
FLASHING AMBER: board has a fault
condition
STEADY AMBER: Not receiving
commands from the Distribution CPU
8.3.3 Field wiring
