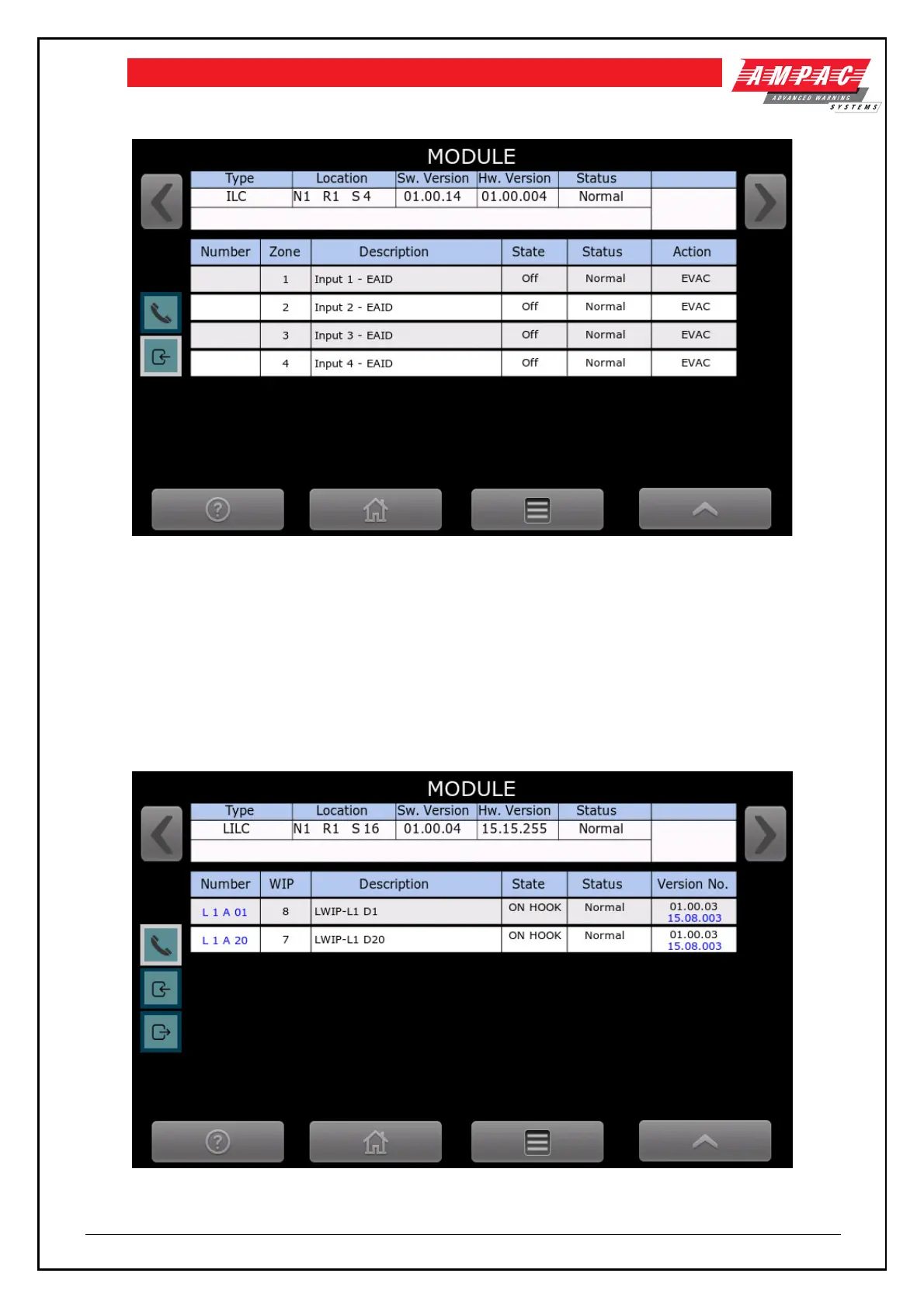

Figure 6-18 Quad radial EIS card status showing the inputs
There are four inputs (one associated with each handset), and the inputs are digital, assigned to a zone, have
a description, state and status.
6.3.6 Dual loop EIS line card
The Dual loop EIS line card supports 2 fault tolerant (redundant) loops, with each loop supporting up to 20
WIP handsets. Each handset supports an input (which is normally interfaced to an MCP), refer to section
4.2.4.8. The default status screen for the Dual loop EIS line card shows the modules status and the status of
the configured handsets as follows:
Figure 6-19 Dual loop EIS line card status screen
