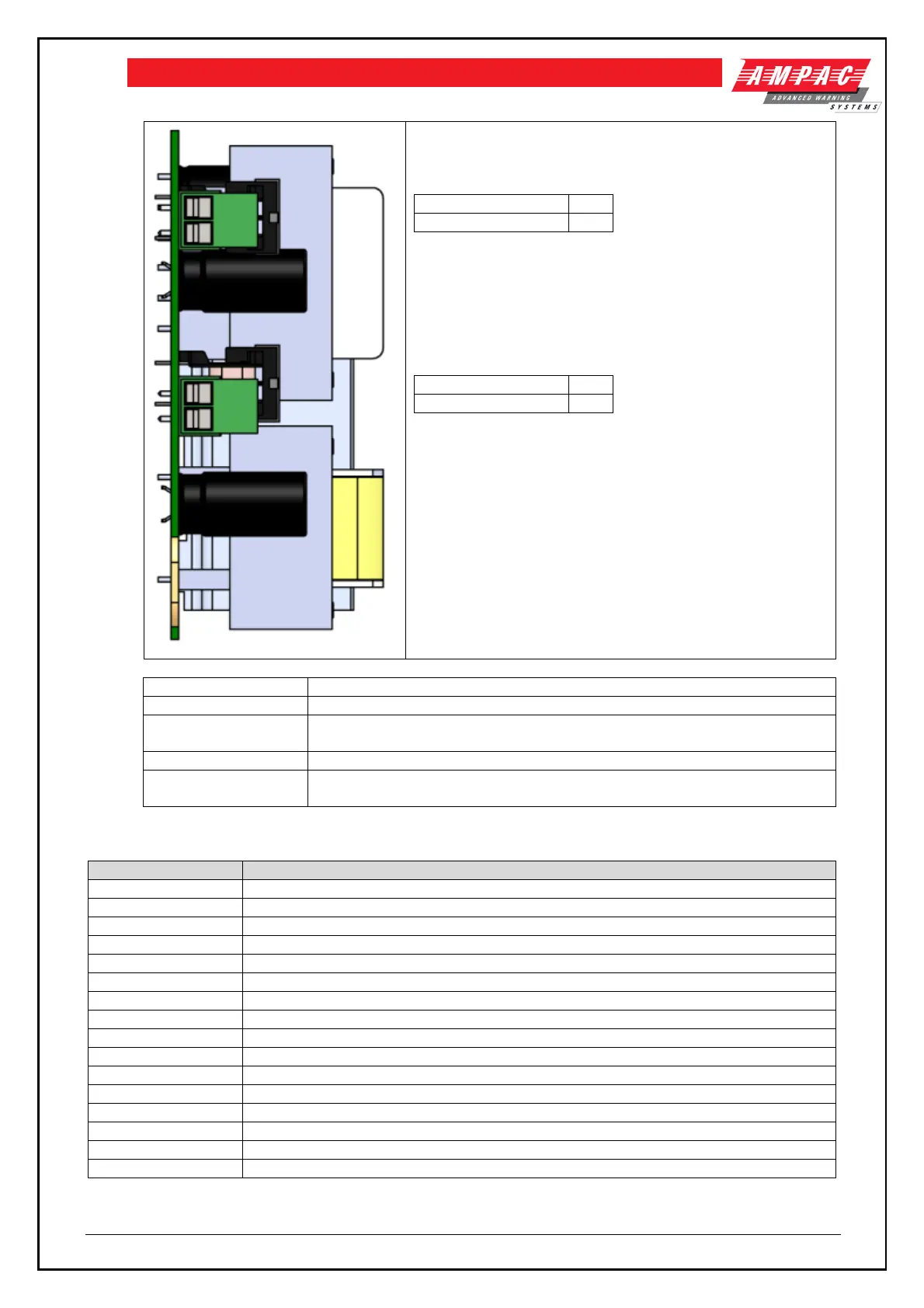

EVACU ELITE INSTALLATION, COMMISSIONING AND USER MANUAL
OUTPUT 1 (-VE)
1
OUTPUT 1 (+VE)
2
OUTPUT 2 (-VE)
3
OUTPUT 2 (+VE)
4
Max Drive Voltage
100V rms @ full load
Distortion
<=0.1%@ 25Watt x2
Frequency Response
(AS 4428.16)
400 Hz to 10kHz +/- 1dB w.r.t. 1kHz
200 Hz to 12kHz +/- 3dB w.r.t. 1kHz
SNR
>=70%
Speaker Circuit
Monitoring
DC, nominal 47kΩ
Applicable Ampac speaker item numbers
Item Number
Description
4113-1006
Ceiling speaker 4” 5W white
4113-1007
Ceiling speaker 4” 5W black
4113-1014 / 54
Ceiling speaker 4” 5W white low profile / grommets
4113-1015 / 55
Ceiling speaker 4” 5W black low profile /grommets
4113-1016 / 56
Ceiling speaker 4” 5W white low profile aluminium grill / grommets
4113-1017 / 57
Ceiling speaker 4” 5W black low profile aluminium grill / grommets
4113-1020
Grey 10W horn speaker
4113-1021
Black 10W horn speaker
4113-1022
Red 10W horn speaker
4113-1023
White 10W horn speaker
4113-1030
Surface mount speaker 4” 5W white
4113-1031
Surface mount speaker 4” 5W black
4113-1034
Surface mount speaker 8” 15W white
4113-1035
Surface mount speaker 8” 15W black
4113-1074
Ceiling speaker 8” 15W low profile white
4113-1075
Ceiling speaker 8” 15W low profile black
