Anritsu Spectrum Master MS2720T Maintenance Manual

Chapter 5 — Assembly Replacement 5-9 LCD Assembly Replacement
MS2720T MM PN: 10580-00342 Rev. D 5-11
3. Remove the 6 screws securing the LCD Bracket to the front case.
4.
5. Remove the LCD bracket assembly and turn the LCD bracket assembly.

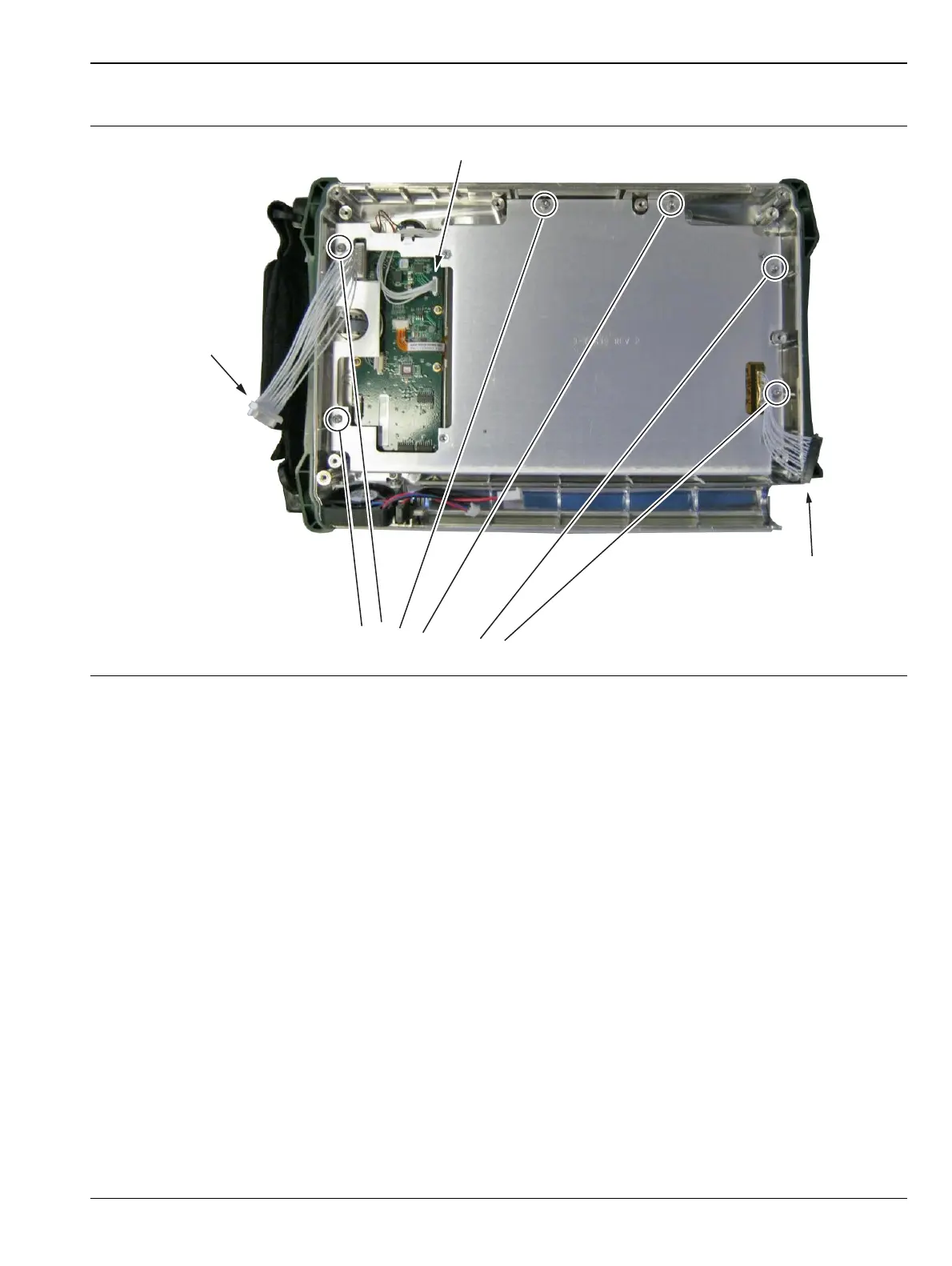

Figure 5-9. Remove LCD Bracket Screws
Remove 6 screws to remove LCD bracket
Disconnect LCD Backlight Cable
LCD Cable
to Main PCB
Socket Connection
to Keyboard PCB
(Section 5.6)
