5-9 LCD Assembly Replacement Chapter 5 — Assembly Replacement
5-12 PN: 10580-00342 Rev. D MS2720T MM
6. Remove the four screws securing the LCD Display to the bracket assembly (Figure 5-10).
7. Carefully remove the LCD, and disconnect the LCD backlight cable and the LCD cable from the LCD.
8. Reverse the above steps to install the replacement LCD.

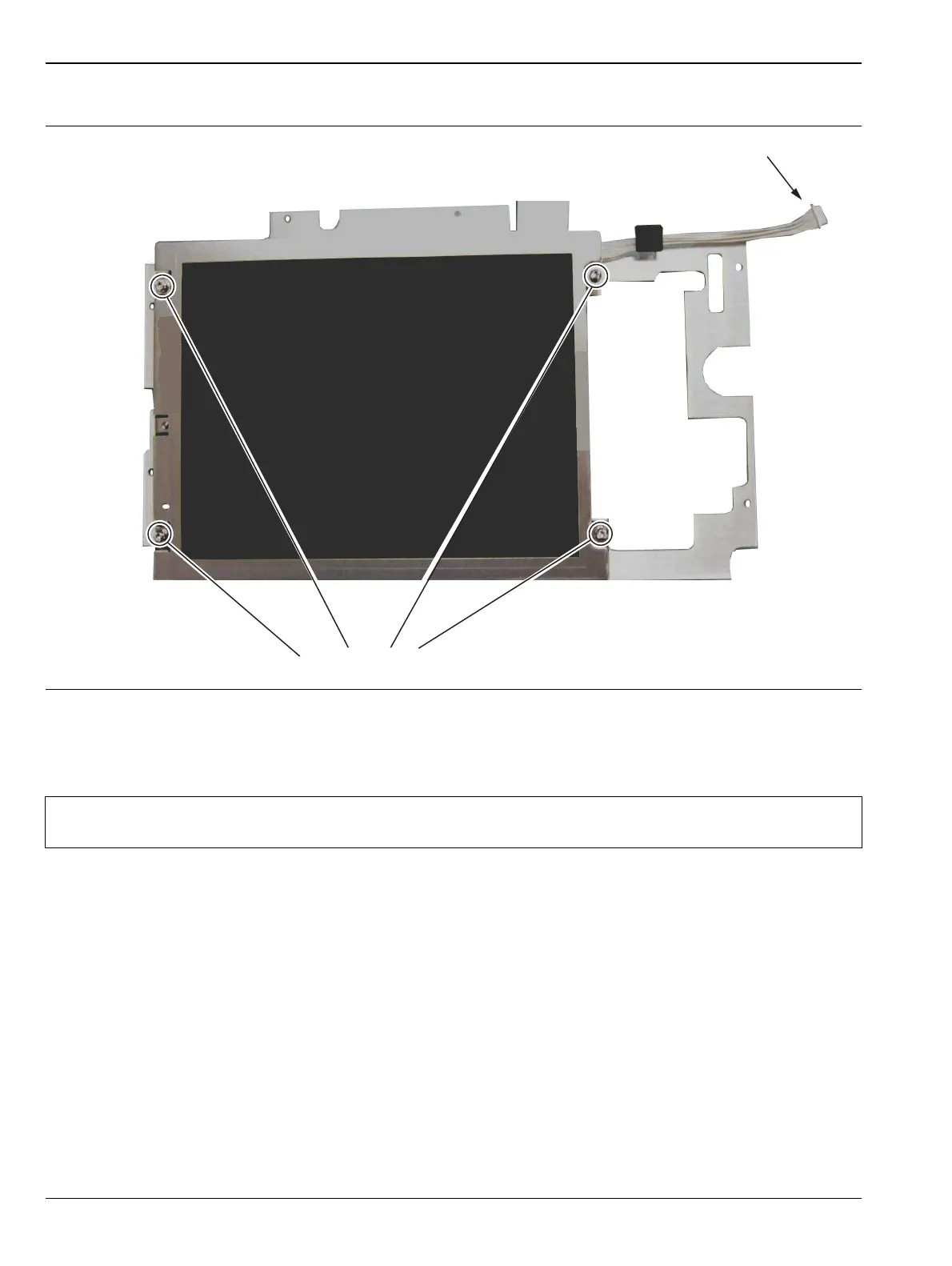

Figure 5-10. Replacing the LCD
Note
Pay attention to the routing of the LCD Backlight Cable. The cable must be positioned so it is not
pinched when the assembly is reattached to the front panel.
Remove 4 screws to replace LCD
Disconnect LCD
Backlight Cable
To Next Page
