C.6 Option 07: Inlet Power Supply Description
C.6.1 85 to 264 VAC, 47 to 440 Hz, 110 to 370 VDC, IEC–320 Connector
Option 07 provides an ac/dc power module, which includes an IEC-320 type inlet and mating ac
cord. Input voltages are 85 to 264 VAC, 47 to 440 Hz or 110 to 370 VDC, less than 20 Volt-Amps
typical. Various plug styles are available as Options P01 through P10.

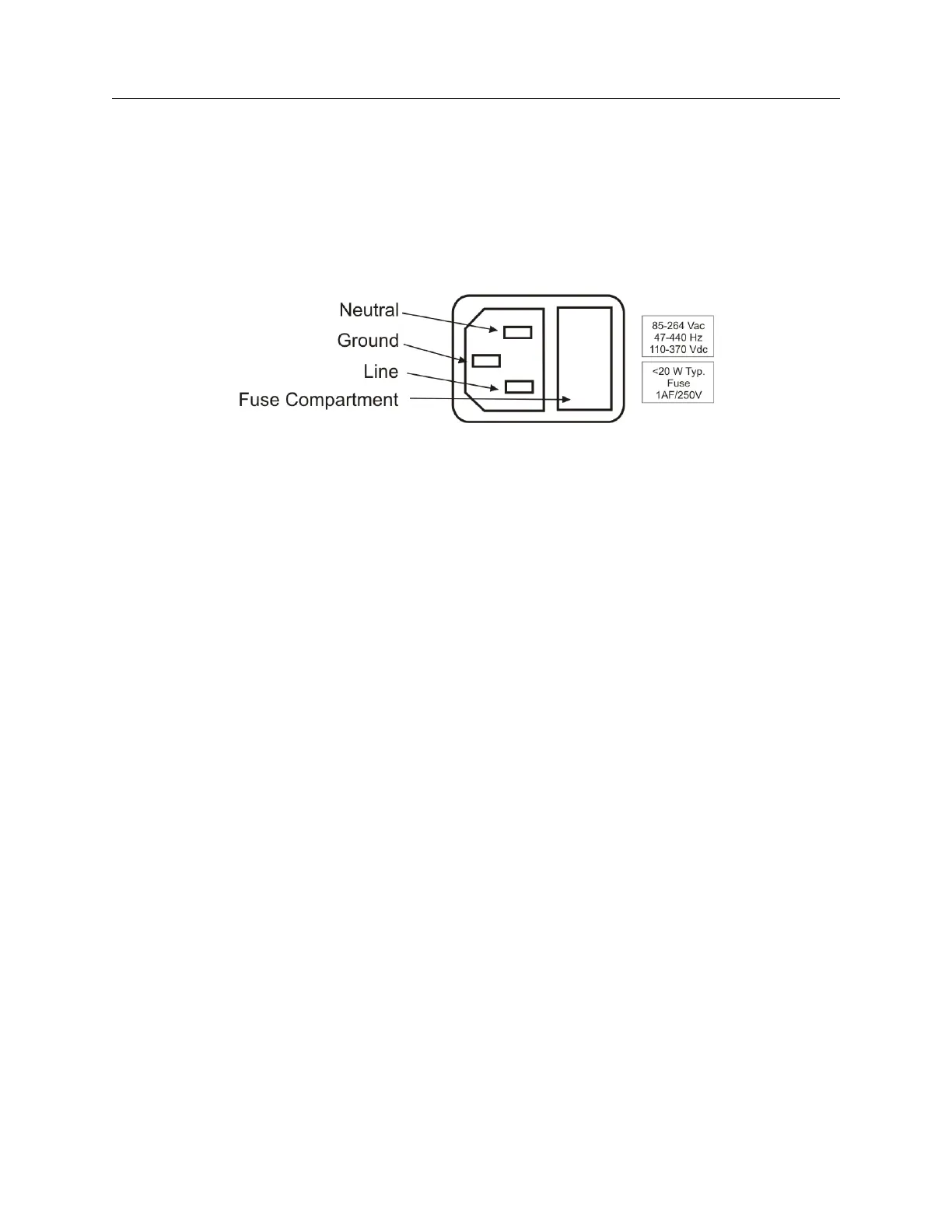

Figure C.4: Option 07 Power Supply Inlet Description
C.6.2 Specifications
Fuse
Type: Bussman GBD-1A
Current Rating: 1 Ampere, fast-acting
Voltage Rating: 250 Volts
Size: 5 mm x 20 mm
Input Power
AC Voltage Range: 85 to 264 VAC
Frequency Range: 47 to 440 Hz
DC Voltage Range: 110 to 370 VDC
Input Power: < 20 Watts
