Arbiter Systems 1092A User Manual

184 Options List
J2
J3
J4
J5
JMP9
JMP10
JMP11 JMP12
JMP13
JMP14
1! 2! 3! 4! 5! 6! 7! 8! 9!
10! 11! 12! 13! 14! 15! 16! 17! 18! 19! 20! 21! 22
1! 2! 3! 4! 5! 6!
7! 8! 9!
10! 11! 12! 13! 14! 15! 16! 17! 18! 19! 20! 21! 22
1! 2! 3! 4! 5! 6! 7! 8! 9!
10! 11!
12! 13! 14! 15! 16! 17! 18! 19! 20! 21! 22
1! 2! 3! 4! 5! 6! 7! 8! 9!
10! 11! 12! 13! 14! 15! 16!
17! 18! 19! 20! 21! 22
JMP1 JMP2 JMP3 JMP4
J1
Arbiter Systems, Inc.!
Assembly Number LB0050300 Rev.__
A! B
A! B
A! B
A! B

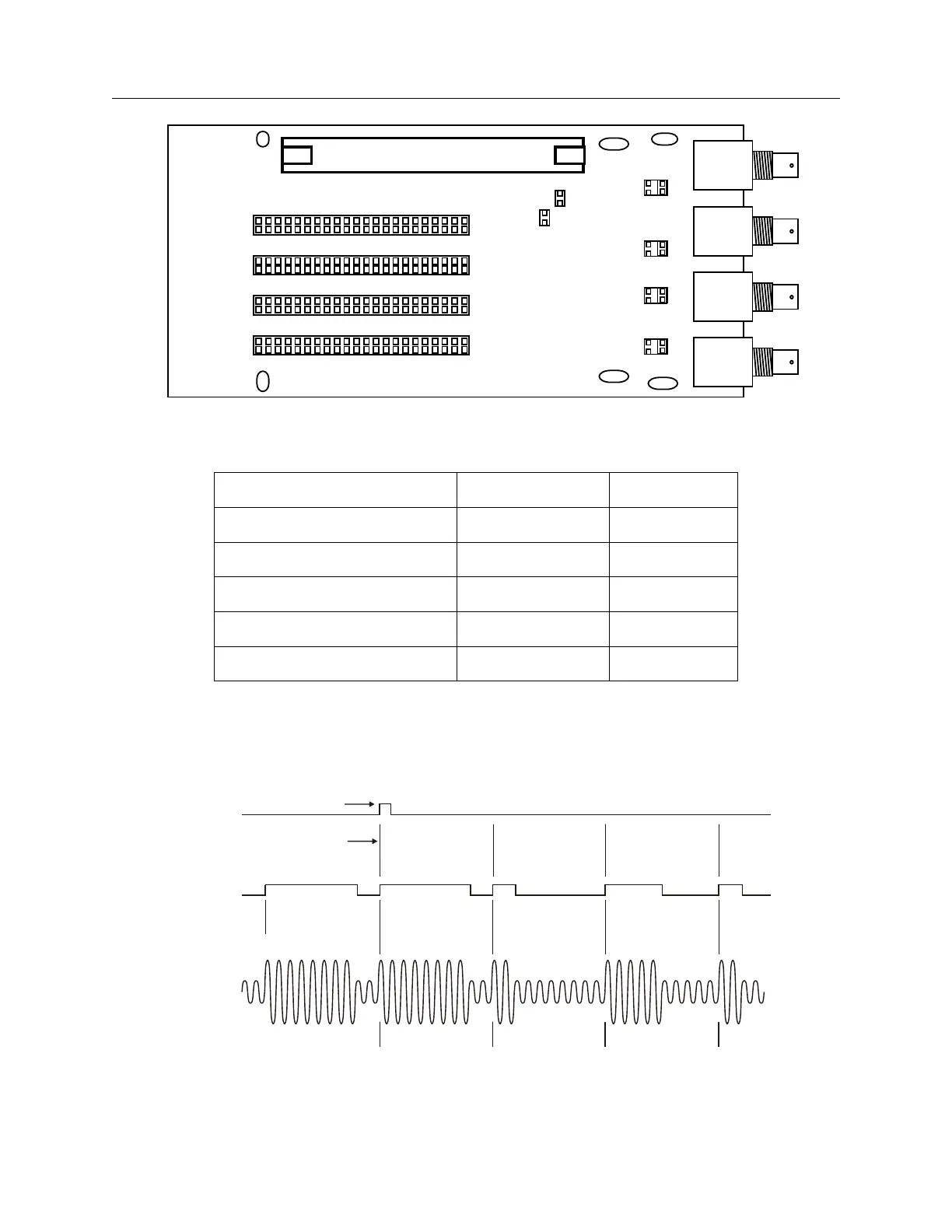

Figure C.43: Option 36 Jumper Configuration
Output Signal Function Jumper Mode Jumper
IRIG-B Modulated 1 B
IRIG-B Unmodulated 3 A
1 PPS 18 A
Programmable Pulse 19 A
Out of Lock 20 A
Table C.11: Option 36 Output Connector Jumper Settings
If IRIG-B is chosen as the output signal, then each selected output should produce a waveform
very similar to the drawings in the figure below.
ON-TIME 1 PPS
IRIG
B003
B004
REFERENCE
REFERENCE
IRIG ZERO
IRIG
B123
B124
IRIG ONE
Start of next
second in
time code
MODULATED
UNMODULATED
NOTE: If any of the jumpers were changed, replace the cover to the chassis before returning to
service.
