4.1 GPS Antenna Installation 15
RG-6 Cable
3/4” Pipe Nipple
Mounting Point
GPS Antenna
Operate LED

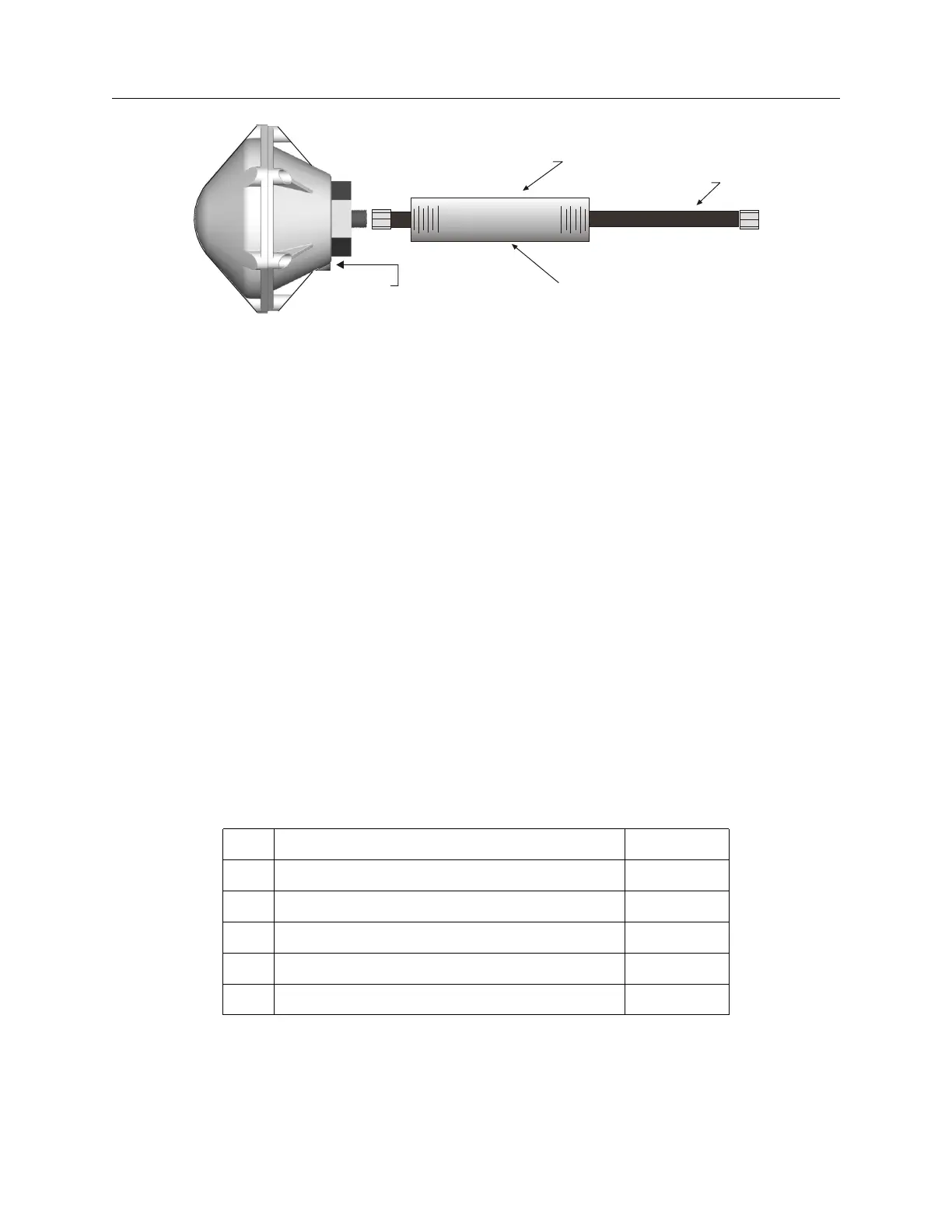

Figure 4.1: Antenna Assembly for Mounting
Antenna mounting procedure:
1. Thread the RG-6 antenna cable through the plastic pipe.
2. Tighten the Type F male connector to the female connector on the antenna. WARNING!
Do not spin the antenna onto cable. Attach and tighten using cable nut.
3. Thread the plastic pipe into the antenna mounting nut.
4. Mount the plastic pipe and antenna/cable assembly to a fixture.
4.1.2 Optional Antenna Mounting Bracket, Kit P/N AS0044600
The AS0044600 antenna mounting kit is designed specifically for use with antennas shipped with
Arbiter Systems GPS-controlled clocks. The hardware included with the bracket allows installation
of the antenna on a mast or pipe up to about 2–in. in diameter, and a different clamp may be
substituted for use with a larger diameter pipe. Also, the bracket can be mounted to a wall, a roof,
or any other flat surface.
For complete details on this product request Installation Instructions for Arbiter Systems GPS
Antenna Mounting Bracket on document number PD0024700A. All metallic hardware is stainless
steel.
Qty Description ASI P/N
1 GPS antenna mounting bracket HD0052700
1 U-bolt, 1-1/8–in., with 2 hex nuts HP0014700
1 3/4 x 4–in. threaded pipe, PVC, schedule 80 HP0014804
1 Hose clamp, worm drive HP0014900
1 Mounting bracket stabilizer HD0054200
Table 4.1: Antenna Mounting Bracket Parts List
