Arbiter Systems 1092A User Manual

C.15 Option 34: NTP/PTP Server 147
Configure Network Settings

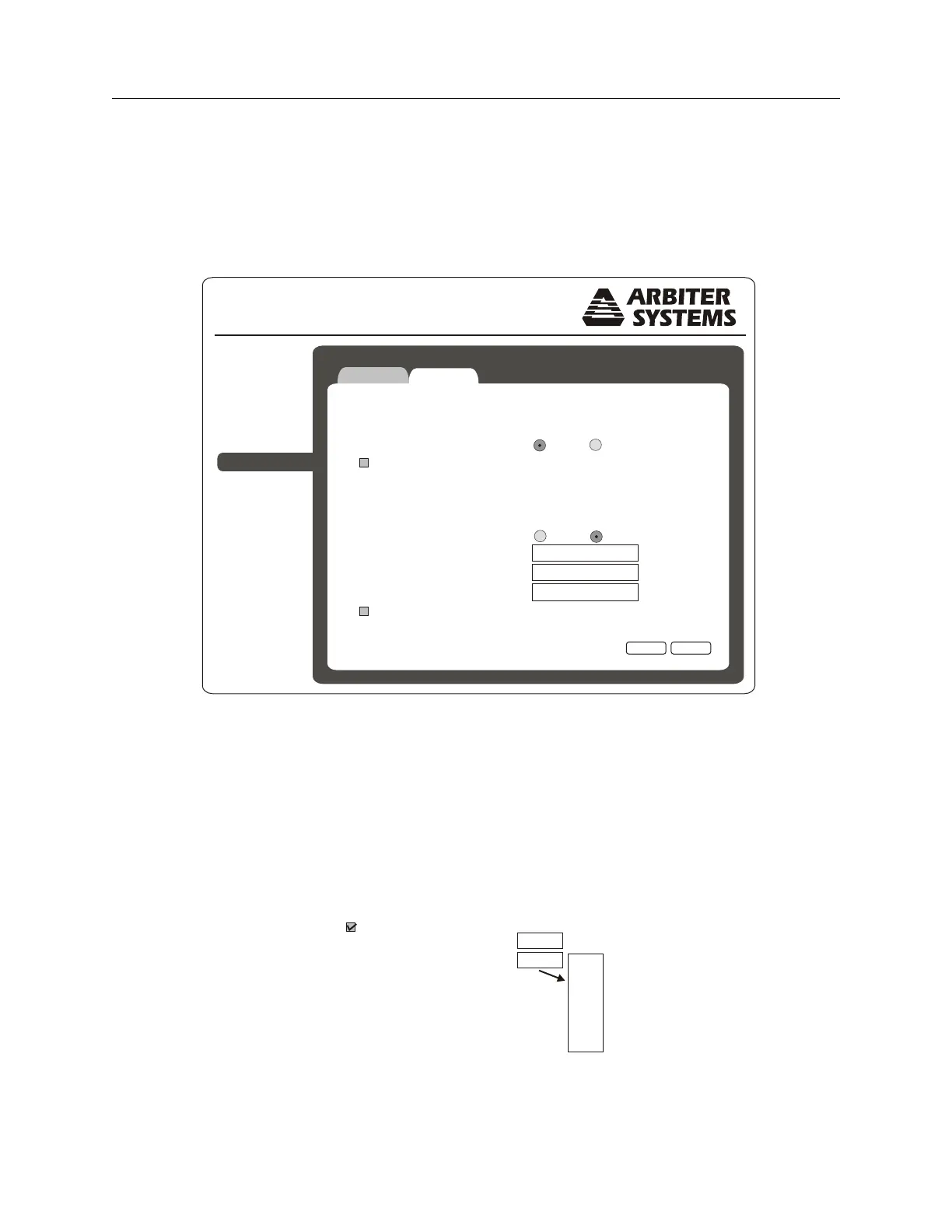

To configure the network settings of your Option 34 follow these instructions. Figure C.20 illustrates
the configurable network functions on Option 34. Notice that the Ethernet Port 1 Mode is selected
as DHCP and Ethernet Port 2 Mode is selected as Static. When selecting Static, the additional
settings (i.e. Address, Netmask and Gateway) will appear.
Option 34 Network Time Module
Status
Configure
NTP
PTP
SNMP
Clock
System
Support
Logout
Network
Ethernet Port 1
MAC Address 64:73:E2:00:00:0B
Mode DHCP Static
Enable VLAN
Ethernet Port 2
MAC Address 64:73:E2:00:00:0C
Mode DHCP Static
Address
Netmask
Gateway
Enable VLAN
Apply
Reset
192.168.0.65
255.255.255.0
Figure C.20: Configure Network Settings
Configure VLAN
To configure VLAN network settings, follow these instructions. Check the box to the left of Enable
VLAN to open these settings as seen in Figure C.21. Settings include an integer ID number, and
priority value from 0 to 7 seen in the drop down box.
Enable VLAN
VLAN ID
VLAN Priority
0
0
0
1
2
3
4
5
6
7
Figure C.21: Configure VLAN Network Settings
