SBC-GX1 Technical Manual
Appendix G – Display Conv
erter 1 (DC1)

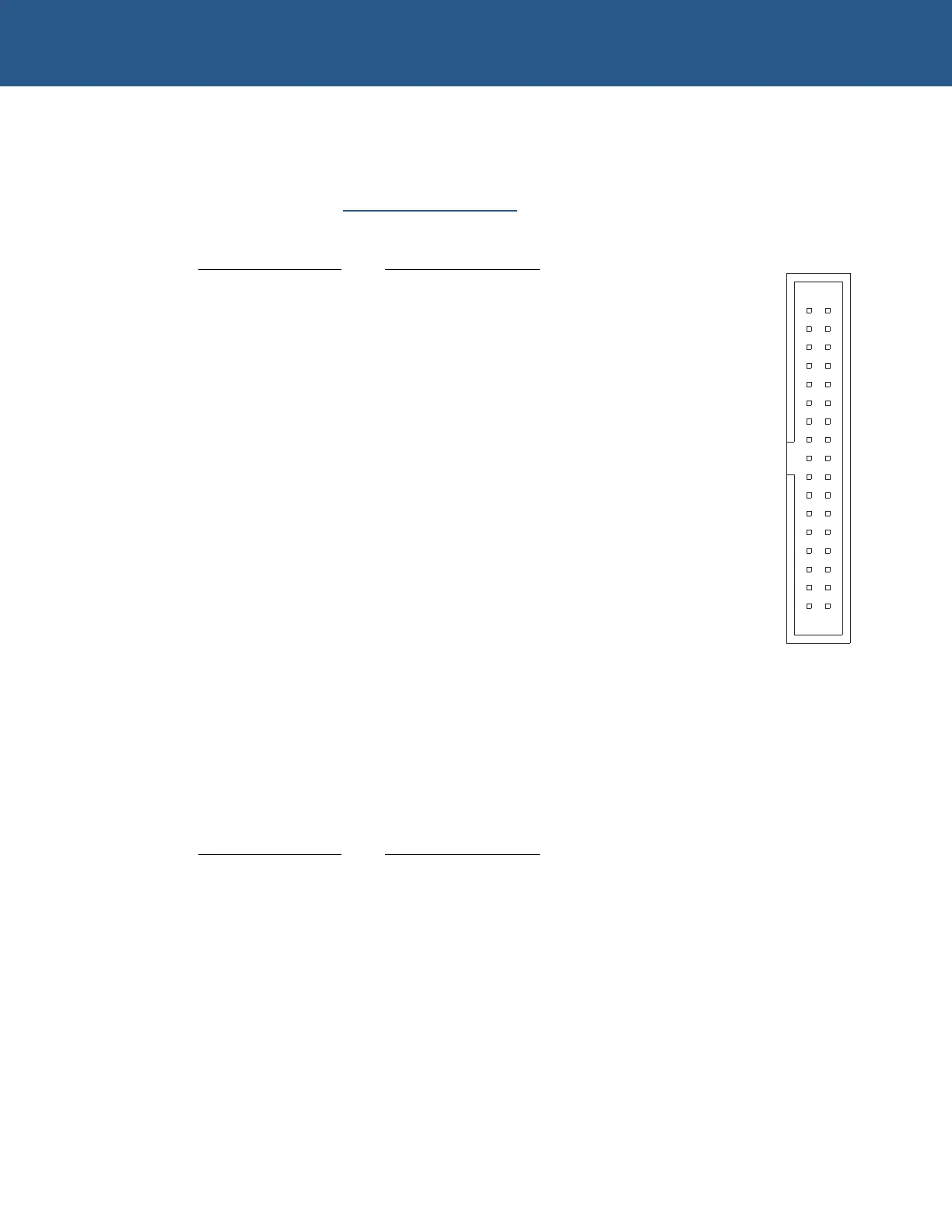

J2 - Flat panel interface connector
Connector: 34 way
, 2.54
mm (0.1”) x 2.54mm (0.1”) boxed header
Mating Connector:
Framatome 71600-034
Pin
Signal Name
Pin
Signal Name
1 FPD0
2
FPD1
3 FPD2
4
FPD3
5 Ground
6
FPD4
7 FPD5
8
FPD6
9 FPD7
10
Ground
1
1 FPD8
12
FPD9
13 FPD10
14
FPD1
1
15 Ground
16
FPD12
17 FPD13
18
FPD14
19 FPD15
20
Groun
d
21 FPD16
22
FPD17
23 Ground
24
CLKFP
25 Ground
26
FPVDD
27 FPVDD
28
HSYNC
29 VSYNC
30
Ground
31 BKLSAFE
32
DISPEN
33 VDDEN
34
BKLEN
33
3
4
12
© 2004 Arcom Issue D
106
105
107
Table of Contents
Table of Contents
3
Introduction
6
SBC-GX1 'At a Glance
7
Features
8
SBC-GX1 Support Products
10
Handling Your Board Safely
11
Conventions
12
Getting Started with Your SBC-GX1
13
CPU Configuration
13
Installing Memory
13
Connecting a Floppy Disk Drive
14
Connecting a Hard Disk Drive
14
Connecting a CD-ROM (IDE Type)
14
Using the Compactflash Socket
15
Connecting a Mouse
15
Using the Serial Interfaces (RS232)
15
Connecting a Printer
15
Using the Audio Features
15
Using the Flat Panel Interface
16
Using the PC/104 Expansion Bus
16
Using the USB Ports
17
Using the Ethernet Interface
17
Jumpers and Connectors
18
Jumpers
20
Connectors
24
Award BIOS Setup
25
The Main Menu
26
Control Keys
29
Standard CMOS Setup
30
BIOS Features Setup
31
Chipset Features Setup
34
Power Management
36
PNP / PCI Configuration Setup
38
Integrated Peripherals
39
General Software Embedded BIOS 2000
42
The Main Menu
43
Control Keys
45
Basic CMOS Configuration Screen
46
Custom Configuration Screen
49
Shadow Configuration Setup Screen
51
Software Support
52
Datalight ROM-DOS 6.22
52
Datalight Flashfx Flash Filing System
52
FLASHROM Utility
53
Boot Disk
53
Operating System Drivers
54
Windows 98 Driver Support
54
Windows NT4.0 Driver Support
58
Other Software Support
60
Hardware Support
61
Detailed Hardware Description
62
SBC-GX1 Block Diagram
62
Processor
63
Memory
63
Static RAM
66
Memory Map
66
I/O Map
67
Graphics Controller
68
Interrupt Assignments
70
DMA Controller
71
IDE Interface
72
Floppy Disk Controller
72
Real Time Clock
73
Keyboard/Mouse Controller
73
Ethernet Controller
73
16-Bit Soundblaster
74
Watchdog Timer
74
User Jumpers
75
USB Interface
75
General Purpose I/O
76
CPU Temperature Sensor
77
PC/104 Interface
77
PCI Bus Interface
78
Serial Ports
78
RS422/485 Interfaces
78
Rs422
79
Rs485
79
Parallel Port
79
Power Supply
80
Status Led's
81
PC Speaker
81
Suspend/Resume Switch
81
RESET Switch
81
Appendix A - Contacting Arcom
82
Appendix B - Connector Details
83
Appendix C - Specification
95
Appendix D - SBC-GX1 Mechanical Diagram
96
Appendix E - TFT Display Interface Cable
97
Appendix F - Reference Information
98
Appendix G - Display Converter 1 (DC1)
100
Index
111
