SBC-GX1 Technical Manual Detailed hardware description
Detailed hardware description
The following section provides a detailed description of the functions provided by the
SBC-GX1. This information may be required during development once you have started
adding extra peripherals or are starting to use some of the embedded features.

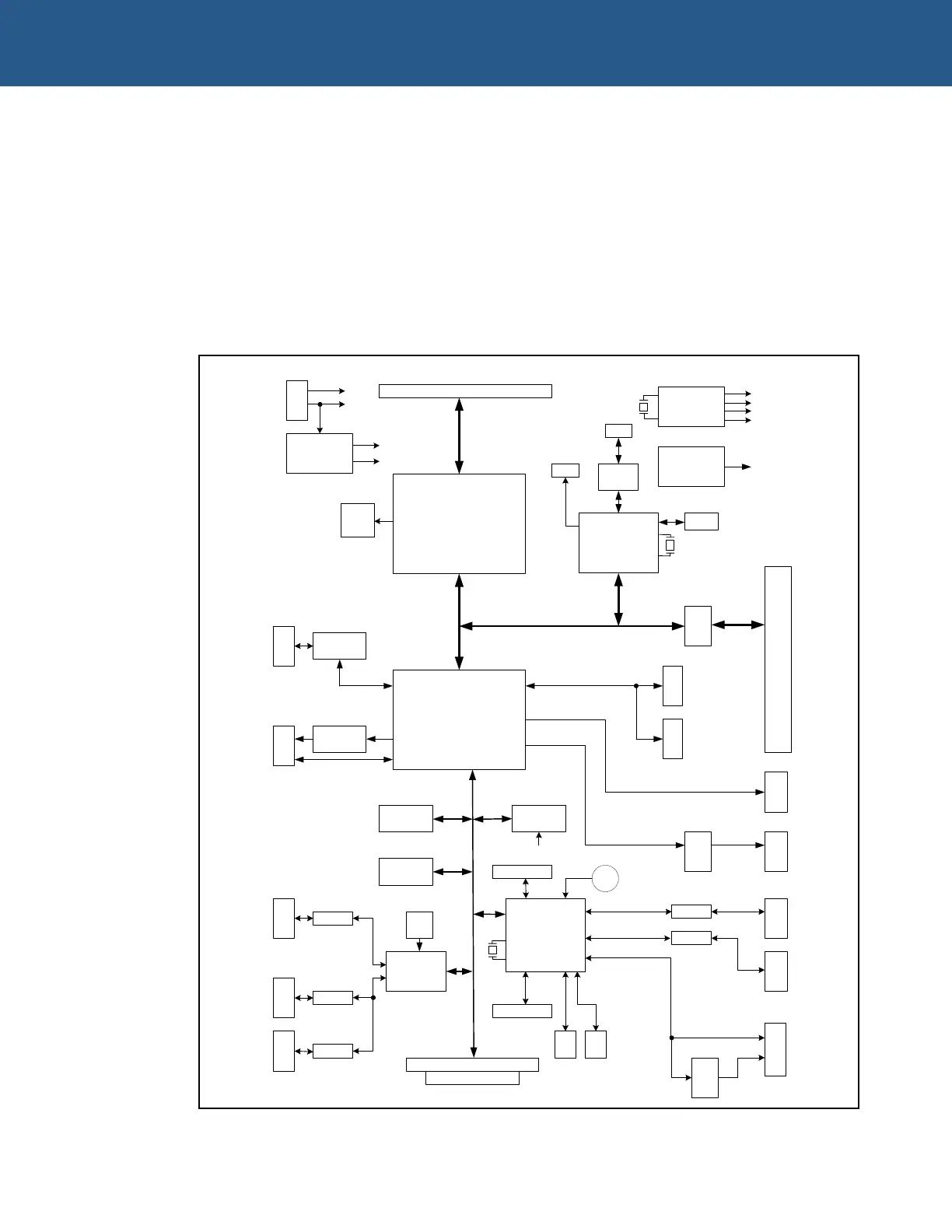

SBC-GX1 block diagram
The diagram below illustrates the functional organization of the SBC-GX1:
AMD GX1
300MHz
144-Pin SODIMM
Address, Data & Control
AMD CS5530
DP83815
Ethernet
Transformer
PL5
3V-5V
Buffer
PL4
PCI
3V PCI BUS
5V PCI
BUS
PL2 IDE
PL25 CompactFlash
Control & Data
Clock
Generator
14.31818MHz
33.33MHz
48MHz
14.318MHz
24.56MHz
DC/DC
+5V
+3.3V
+2.0V
PL20
PL23
PC/104 Bus
AC97
CODEC
PL24
Audio
PL8
USB
PWR Switch
Data
USB
256KB
BIOS
3V-5V
Buffer
PL15
PL11Analog RGB
Digital RGB
CRT
TFT
Flat Panel
16MB
FLASH
PC97317
Super I/O
16C2552
DUART
PL6
PL10
PL14
RS232
RS232
RS485
COM3
COM4 RS232
COM4 RS422/485
1.8432
MHz
.
RS232
RS232
PL19
PL18
PL13
Output
Buffer
PL17 Floppy
PL16 Parallel
3V Lithium
Battery
128KB
SRAM
25MHz
EEPROM
32.768KHz
ISA Bus
LM84
Temp
Sensor
PL9 PL17
KeyboardMouse
VBAT
COM1
COM2
10/100 Base-Tx
PL3
Ethernet
LED’s
PL12
+12V
Power
Watchdog
Timer
Reset
8 Digital I/O Lines
