SBC-GX1 Technical Manual Appendix G – Display Converter 1 (DC1)

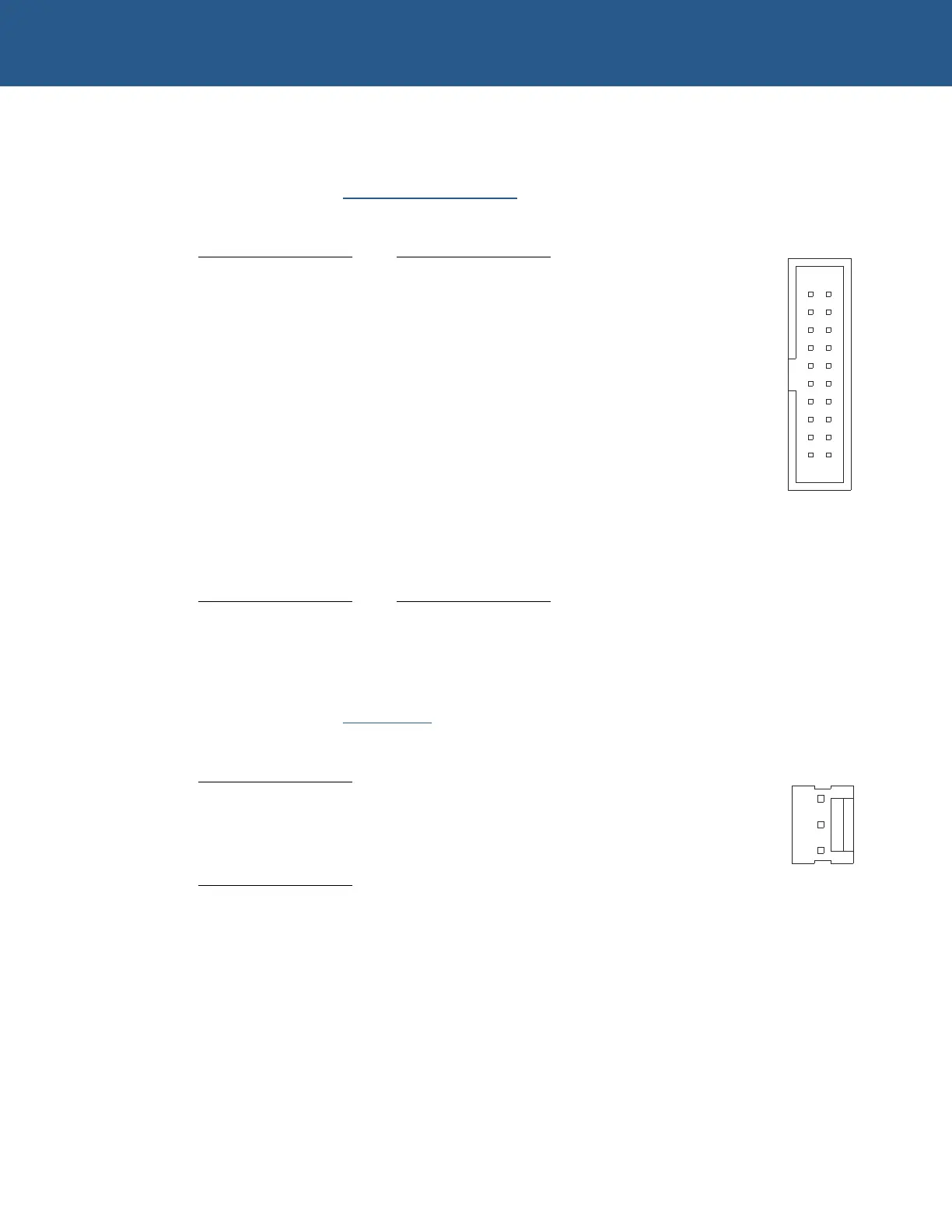

J5 SBC-GX1 General purpose I/0 lines
Connector: 20 way, 2.54mm (0.1”) x 2.54mm (0.1”) dual row boxed header
Mating Connector:
Framatome 71600-020
Pin Signal Name Pin Signal Name
1 +5V 2 +5V
3 GPIO0 4 GPIO1
5 GPIO2 6 GPIO3
7 GPIO4 8 GPIO5
9 GPIO6 10 Not Used
11 Ground 12 Ground
13 Not Used 14 Not Used
15 Not Used 16 Not Used
17 Not Used 18 Not Used
19 Not Used 20 Not Used
2
2019
1
J6 - Contrast Control/Backlight Power Connector
Connector Type: 3-pin Molex 22-27-2031 0.1” pitch straight friction lock header
Mating Connector:
Molex 2695
Pin Signal Name
1 +12V
2 Vcon
3 Ground
1
3
© 2004 Arcom Issue D 109
