SBC-GX1 Technical Manual Appendix B – Connector details

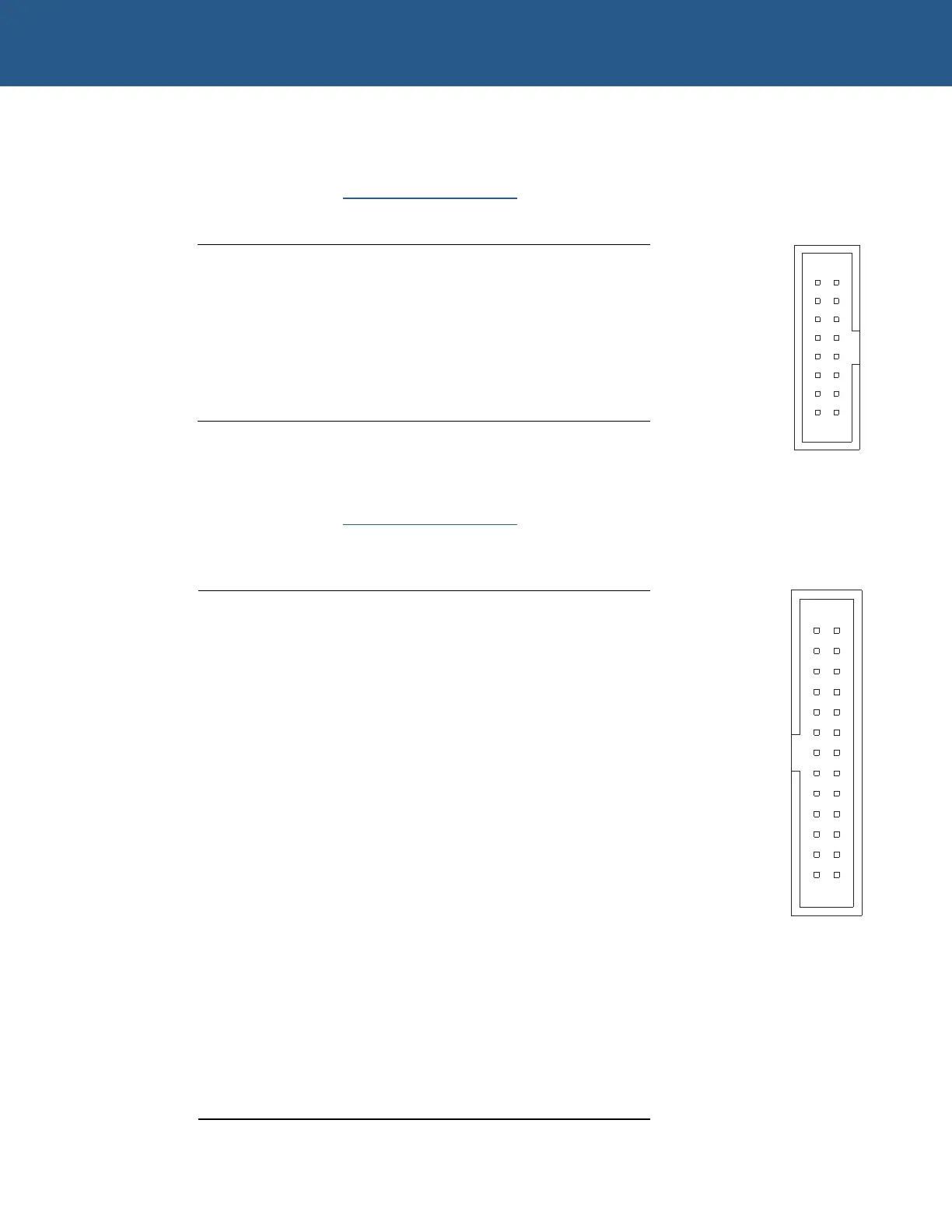

PL15 -VGA CRT connector
Connector: 16 way, 2.54mm (0.1”) x 2.54mm (0.1”) boxed header
Mating Connector:
Framatome 71600-016
Pin Signal Name Pin Signal Name
1 RED 2 Ground
3 GREEN 4 No Connect
5 BLUE 6 Ground
7 +5V (Fused) 8 No Connect
9 Ground 10 Ground
11 Ground 12 HSYNC
13 DDCSDA 14 VSYNC
15 DDCSCL 16 No Connect
21
16 15
PL16 - Printer port (LTP1)
Connector: 26 way, 2.54mm (0.1”) x 2.54mm (0.1”) boxed header
Mating Connector:
Framatome 71600-026
26-way boxed
header
Signal name 25-way D-type
socket
1 STROBE 1
2 AUTOFEED 14
3 D0 2
4 ERROR 15
5 D1 3
6 INIT 16
7 D2 4
8 SELECT IN 17
9 D3 5
10 Ground 18
11 D4 6
12 Ground 19
13 D5 7
14 Ground 20
15 D6 8
16 Ground 21
17 D7 9
18 Ground 22
19 ACKNOWLEDGE 10
20 Ground 23
21 BUSY 11
22 Ground 24
23 PAPER EMPTY 12
24 Ground 25
25 SELECT 13
26 No Connect -
25 26
12
© 2004 Arcom Issue D 89
