SBC-GX1 Technical Manual Appendix B – Connector details

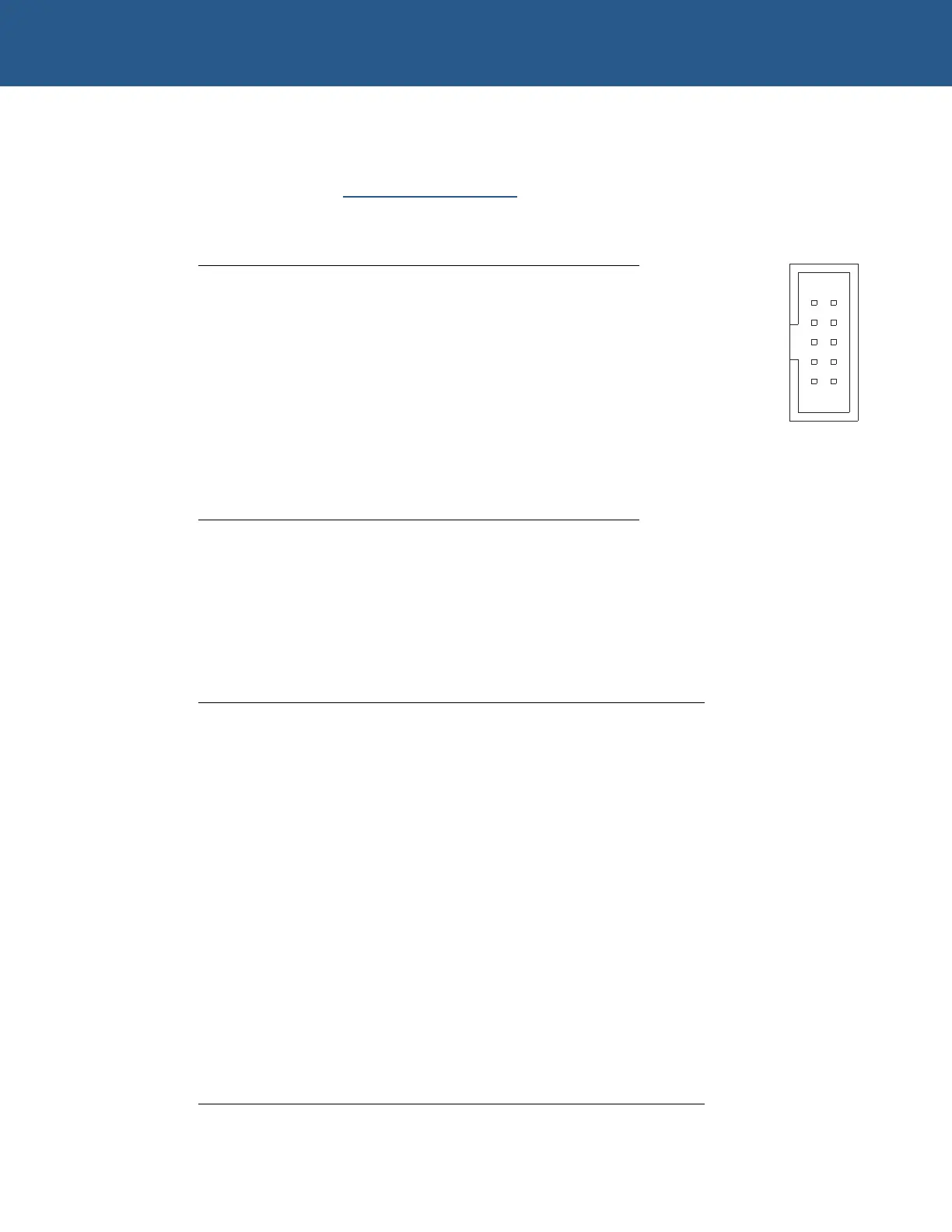

PL19 – COM1 RS232 serial port
Connector: 10-way, 2.54mm (0.1”) x 2.54mm (0.1”) boxed header
Mating Connector:
Framatome 71600-010
Pin (10-way
header) Signal Name
Pin (9-way
D-type plug)
1
Data Carrier Detect (DCD) 1
2
Data Set ready (DSR) 6
3
Receive Data (RX) 2
4
Request To Send (RTS) 7
5
Transmit Data (TX) 3
6
Clear To Send (CTS) 8
7
Data Terminal Ready (DTR) 4
8
Ring Indicator (RI) 9
9 Ground 5
10 No Connect -
1
9
2
10
PL20 & PL23 - PC/104 connector
PL20 connector: 64-way, 2.54mm (0.1”) x 2.54mm (0.1”) Non-Stackthrough PC/104
compatible connector (row A & B).
PL23 connector: 40-way, 2.54mm (0.1”) x 2.54mm (0.1”) Non-Stackthrough PC/104
compatible connector (row C & D).
Pin Row A Row B Row C Row D
0 - - Ground Ground
1 /IOCHCK Ground /SBHE /MEMCS16
2 D7 RSTDRV LA23 /IOCS16
3 D6 +5V LA22 IRQ10
4 D5 IRQ9 LA21 IRQ11
5 D4 -5V LA20 IRQ12
6 D3 DRQ2 LA19 IRQ15
7 D2 -12V LA18 IRQ14
8 D1 /ENDXFR LA17 /DACK0
9 D0 +12V /MEMR DRQ0
10 IOCHRDY KEY /MEMW /DACK5
11 AEN /SMEMW D8 DRQ5
12 A19 /SMEMR D9 /DACK6
13 A18 /IOW D10 DRQ6
continued…
© 2004 Arcom Issue D 91
