Install Traction Drive Idler Assembly

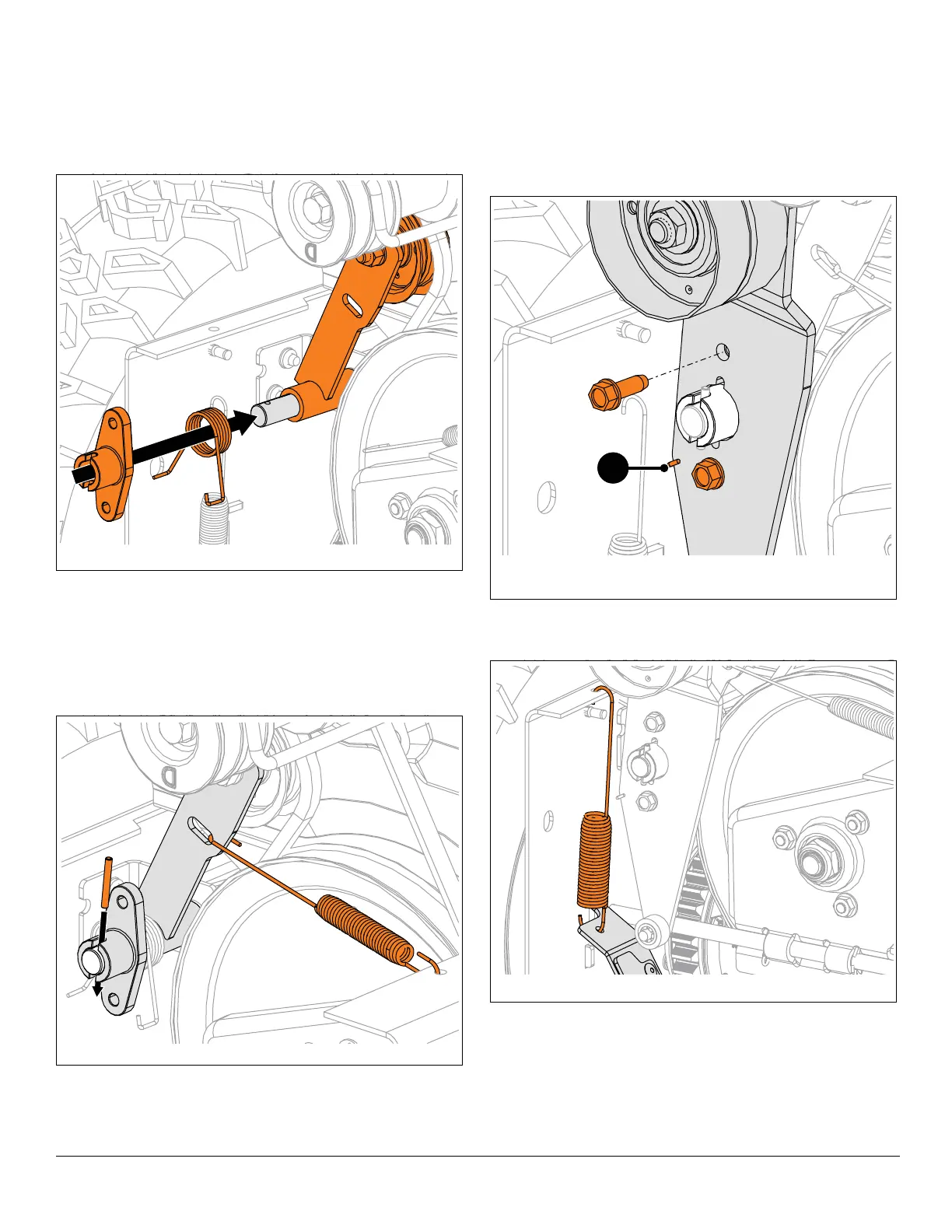

See Figure 37.
1. Reinstall traction drive idler assembly and torsion
spring onto idler pivot rod.
2. Reinstall attachment idler arm hub onto idler pivot rod.
See Figure 38.
3. Position attachment idler arm hub beyond hole
through pivot rod and reinstall roll pin. Align hub with
roll pin.
4. Reinstall idler spring onto traction drive idler arm and
ensure traction drive belt is aligned in all pulleys.
5. Reinstall attachment drive idler assembly. See Install
Attachment Drive Idler Assembly on page 20.
Install Attachment Drive Idler Assembly
See Figure 39.
1. Secure attachment idler arm to hub with original
tapping screws.
2. Reinstall torsion spring around attachment idler arm.
IMPORTANT: Ensure attachment idler arm has tension.
3. Reinstall attachment brake spring onto frame. See
Figure 40.
4. Reinstall auger housing. See Reinstall Auger Housing
on page 11.
5. Adjust attachment drive clutch. Refer to Operator’s
Manual for adjustment procedure.
6. Reconnect spark plug wire.
IMPORTANT: Check all adjustments after first use.
Figure 39
1. Torsion Spring
1
