Install Scraper Blade
1. Position scraper blade inside auger housing and align
with holes in housing.
2. Insert seven flat head square neck bolts through
scraper blade from inside housing. Secure with seven
top locking flange nuts.
3. Insert two round head square neck bolts through
scraper blade ends and skid shoes from inside
housing. Secure with two flat steel washers and two
hex nuts.
4. Return unit to operating position.
5. Adjust scraper blade and skid shoes. Refer to
Operator’s Manual for adjustment procedures.
6. Reconnect spark plug wire and fill fuel tank.
IMPORTANT: Check all adjustments after first use.
HEADLIGHT REPLACEMENT
Remove Bulb
IMPORTANT: Save all hardware for reinstallation.
1. Stop engine, remove key and wait for all moving parts
to stop and for hot parts to cool.
2. Disconnect spark plug wire from engine.

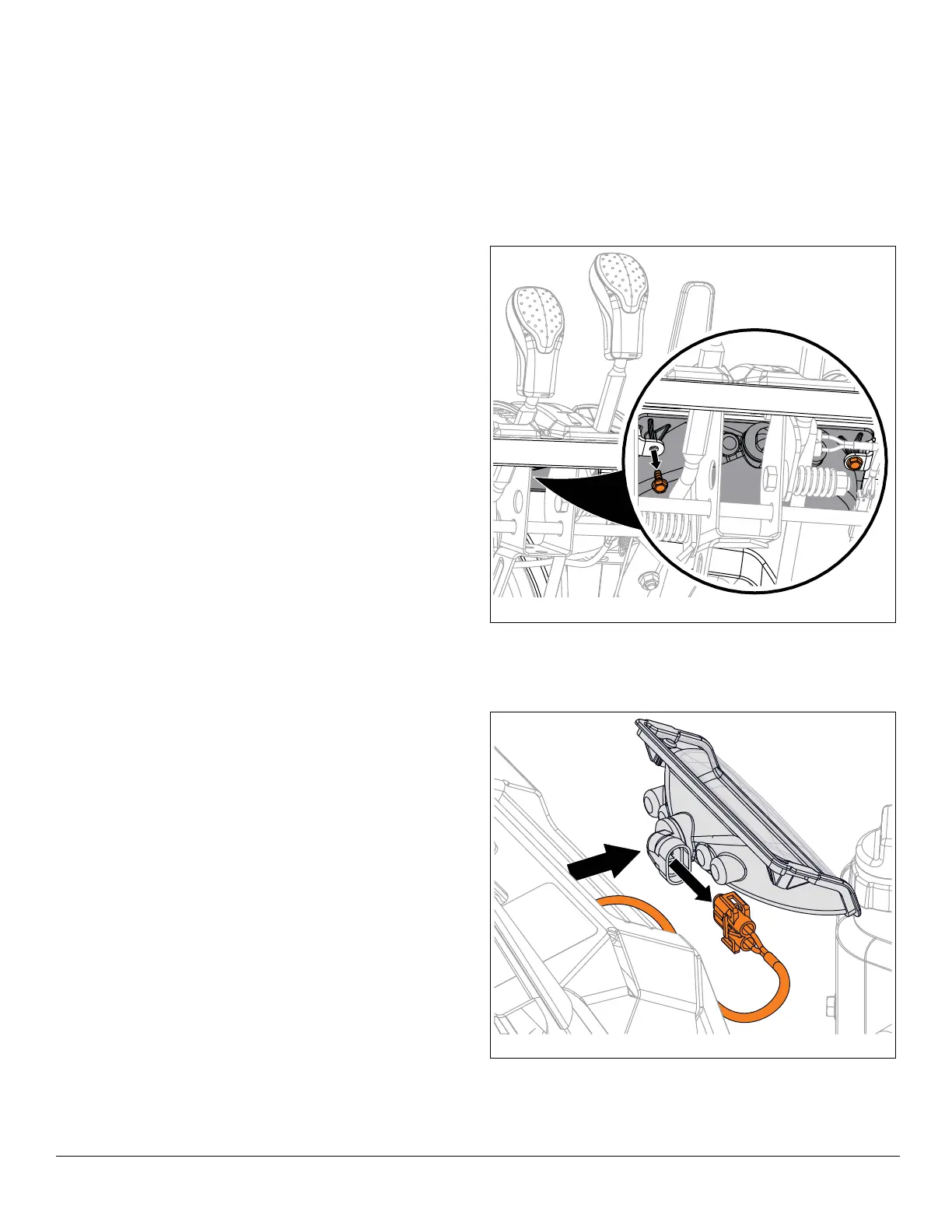

3. Remove hardware securing headlight to dash panel.
See Figure 128.
See Figure 129.
4. Remove headlight from dash panel.
5. Disconnect wire harness from bulb.
