EN – 53

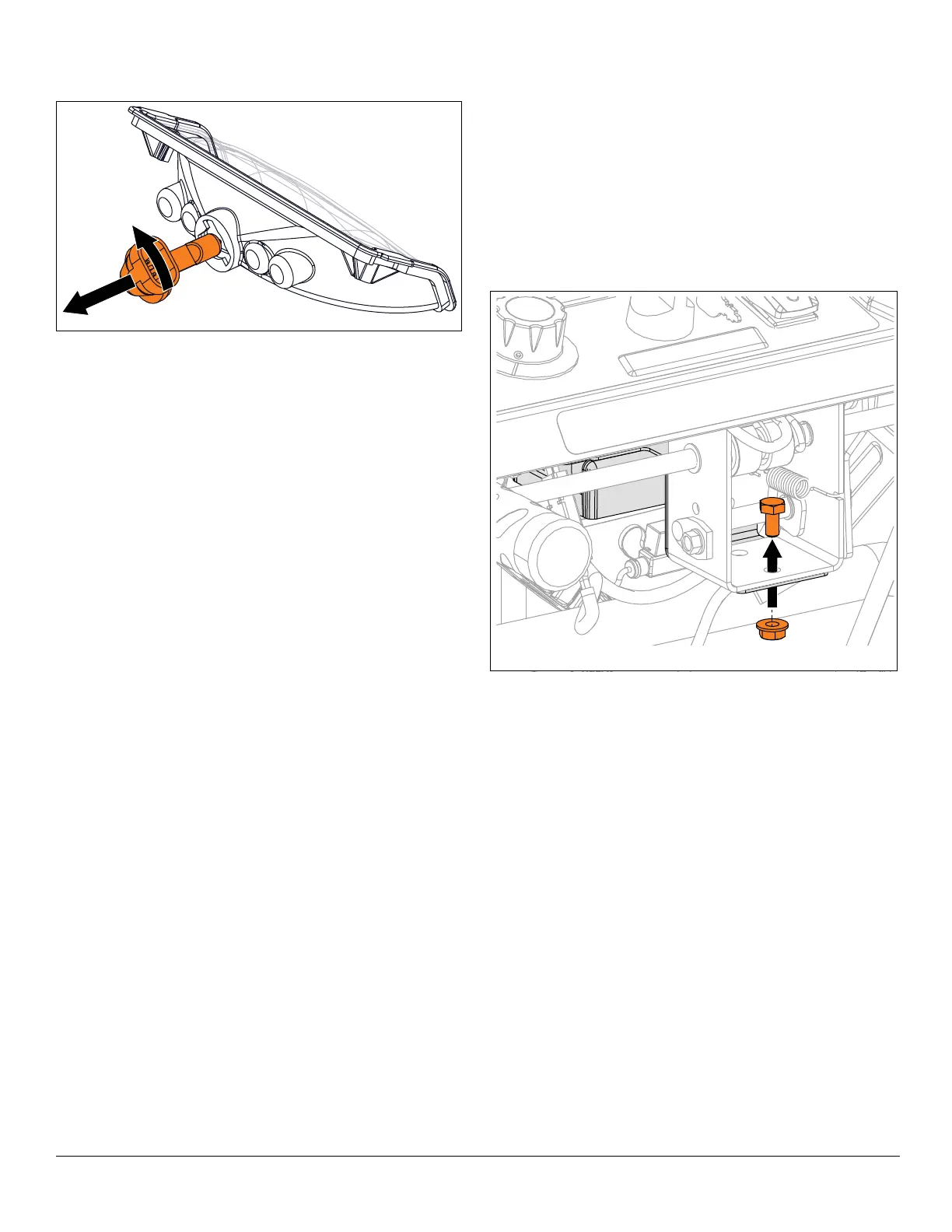

6. Turn bulb one-eighth turn counterclockwise and
remove from headlight bezel. See Figure 130.
Install Bulb
NOTICE: DO NOT touch new bulb with bare hands; wear
gloves. Body oil on a headlight bulb can increase bulb
temperature and reduce life of the bulb.
1. Install bulb into headlight bezel and turn one-eighth
turn clockwise.
2. Connect bulb to wire harness.
3. Reinstall headlight housing into dash panel and
secure with two tapping screws.
4. Reconnect spark plug wire.
EFI BATTERY REPLACEMENT
Model 921049
Remove Battery
IMPORTANT: Save all hardware for reinstallation.
1. Stop engine, remove key and wait for all moving parts
to stop and for hot parts to cool.
2. Disconnect spark plug wire from engine.
3. Disconnect wire harnesses from ECU.
4. Remove hardware retaining ECU bracket and remove
bracket. See Figure 131.
See Figure 132.
5. Disconnect wire harness from battery connector.
6. Remove hardware retaining battery bracket and
remove bracket.
To Next Page
