l A direct wired ISP connection or a wireless uplink.
l One or more DHCP pools for private VLANs.
l One downlink port configured on a private VLAN without authentication for connecting to slave IAPs.
Ensure that the downlink port configured in a private VLAN is not used for any wired client connection.
Other downlink ports can be used for connecting to the wired clients.

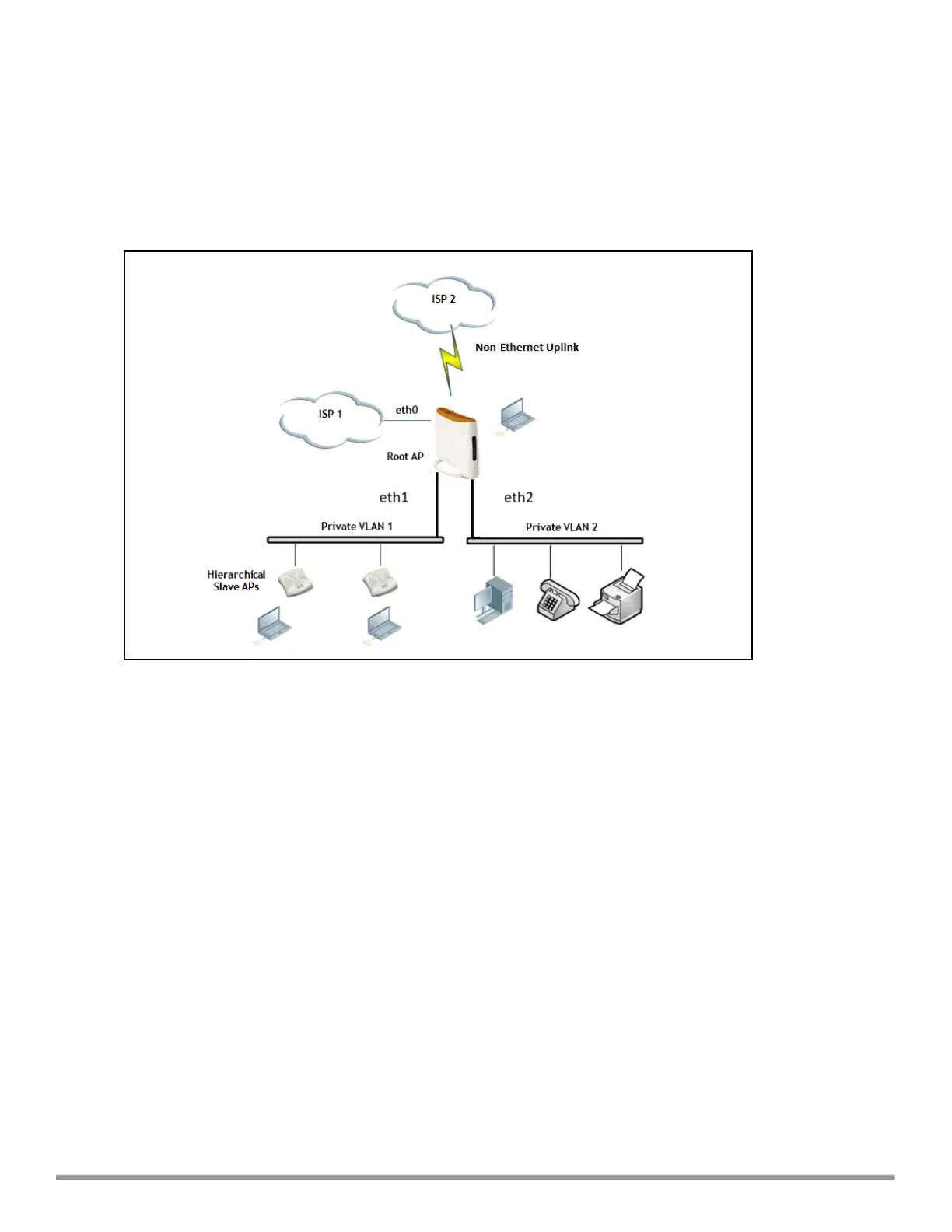

The following figure illustrates a hierarchical deployment scenario:
Figure 31 Hierarchical Deployment
Aruba Instant 6.5.0.0-4.3.0.0 | User Guide Wired Profiles | 116
