CHAPTER 4 REFERENCE GUIDE
EFD1000 PRO MAX PFD Pilot’s Guide
Page 4-86
091-00005-002 ()
4.10.5.1 FOV1 - Narrow Field of View
FOV1 (Figure 4-134 and Figure 4-135) presents an approximate 20º horizontal view
(10º either side of the nose) and a visible pitch ladder range between 5º to -20º for SV1.
FOV1 (Narrow Field of View) is the most accurate representation of the outside view.
4.10.5.2 FOV2 - Wide Field of View
FOV2 (Figure 4-136 and Figure 4-137) presents an approximate 50º horizontal view
(25º either side of the nose) and a visible pitch ladder range between 20º to -50º for SV1.
The pitch ladder scale on FOV2 is equal to that on the standard display.
FOV2 is a wider field of view and objects on the display are closer than they appear.
FOV2 is best used for enroute.
(Figure 3-19) shows the portion of FOV1 display that is depicted in FOV2.
NOTE
The vertical Field of View is also narrow.
See Figure 4-138.

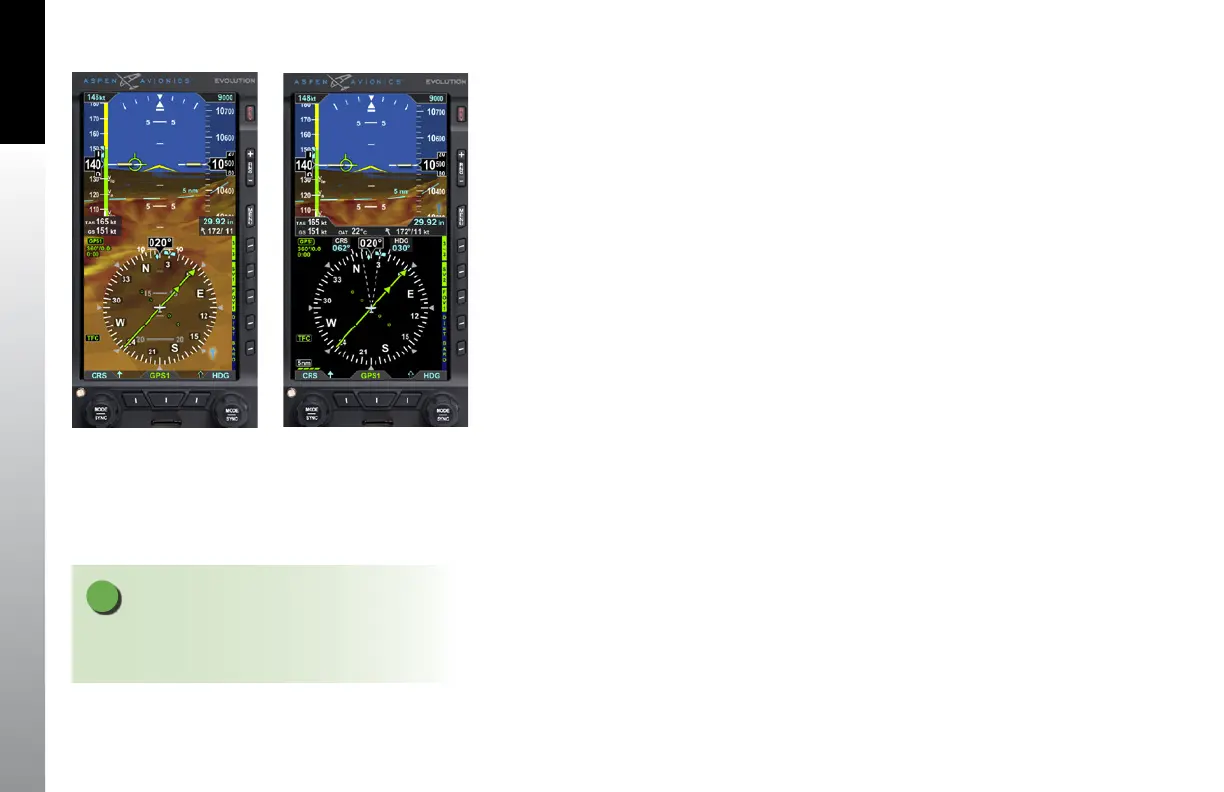

Figure 4-134
FOV1 Narrow Field of View
Figure 4-135
FOV1 Narrow Field of View
