4.5.9 Bearing Pointer Source Selection

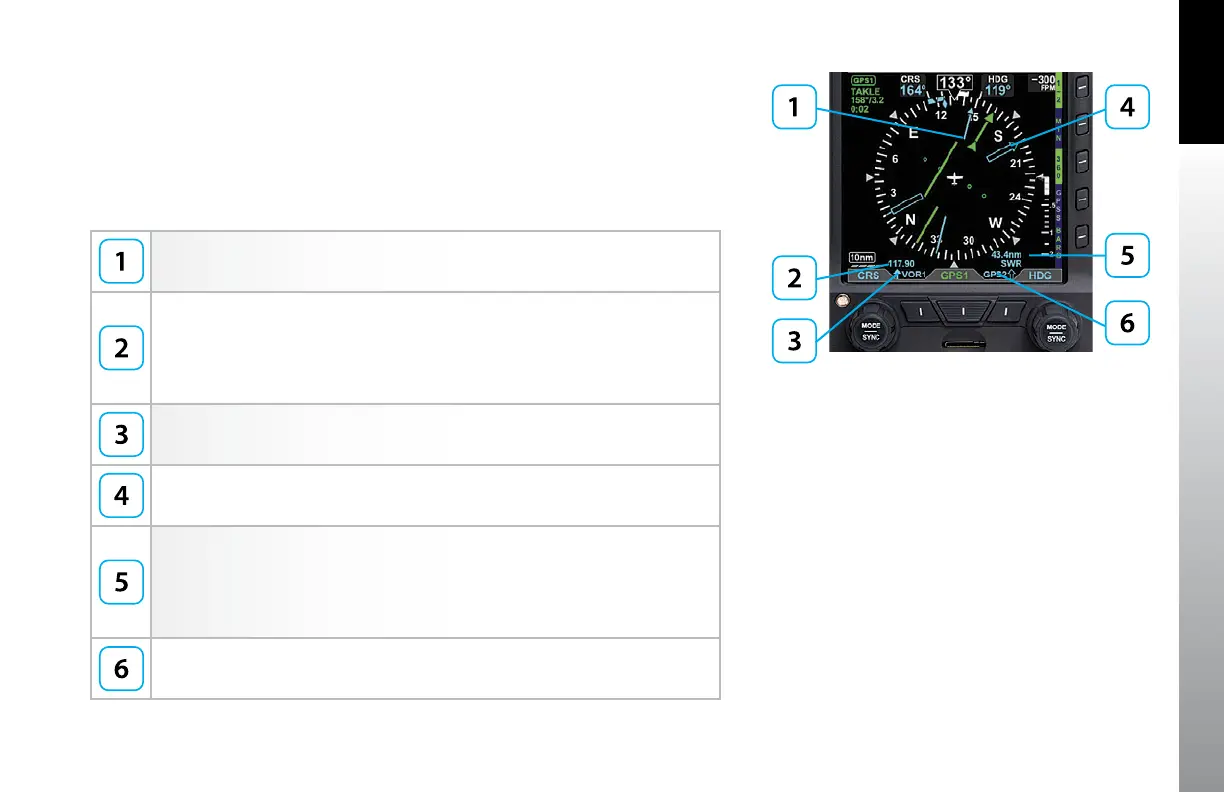

When the 360° Compass mode is selected, single- and double-line bearing pointers are
available (Figure 4-74). The bearing pointers are independent of the CDI and provide
supplemental navigation information by pointing to active GPS waypoints or navaids.
By default, the bearing pointers are off and not displayed.
Single-Line Bearing Pointer
Single-Line Bearing Pointer Source Information
• Distance (NM) to active GPS waypoint
• Waypoint identifier, station identifier (when available, or the tuned frequency of
the associated VHF NAV radio (when available)
Single-Line Bearing Pointer Icon
Double-Line Bearing Pointer
Double-Line Bearing Pointer Source Information
• Distance (NM) to active GPS waypoint
• Waypoint identifier, station identifier (when available, or the tuned frequency of
the associated VHF NAV radio (when available)
Double-Line Bearing Pointer Source
