CHAPTER 4 REFERENCE GUIDE
EFD1000 PRO MAX PFD Pilot’s Guide
Page 4-17
091-00005-002 ()
4.3.3. MINIMUMS Annunciation
The Pro PFD provides an adjustable MINIMUMS field to enhance situational awareness
during instrument approaches. The Pro PFD provides a MINIMUMS annunciation with a
series of markers on the Altitude Tape that provide the pilot with improved awareness
when approaching and operating at minimums. There are three different color
markers that are shown on the altitude tape that are associated with the MINIMUMS
Annunciation, as described in Table 4-3.

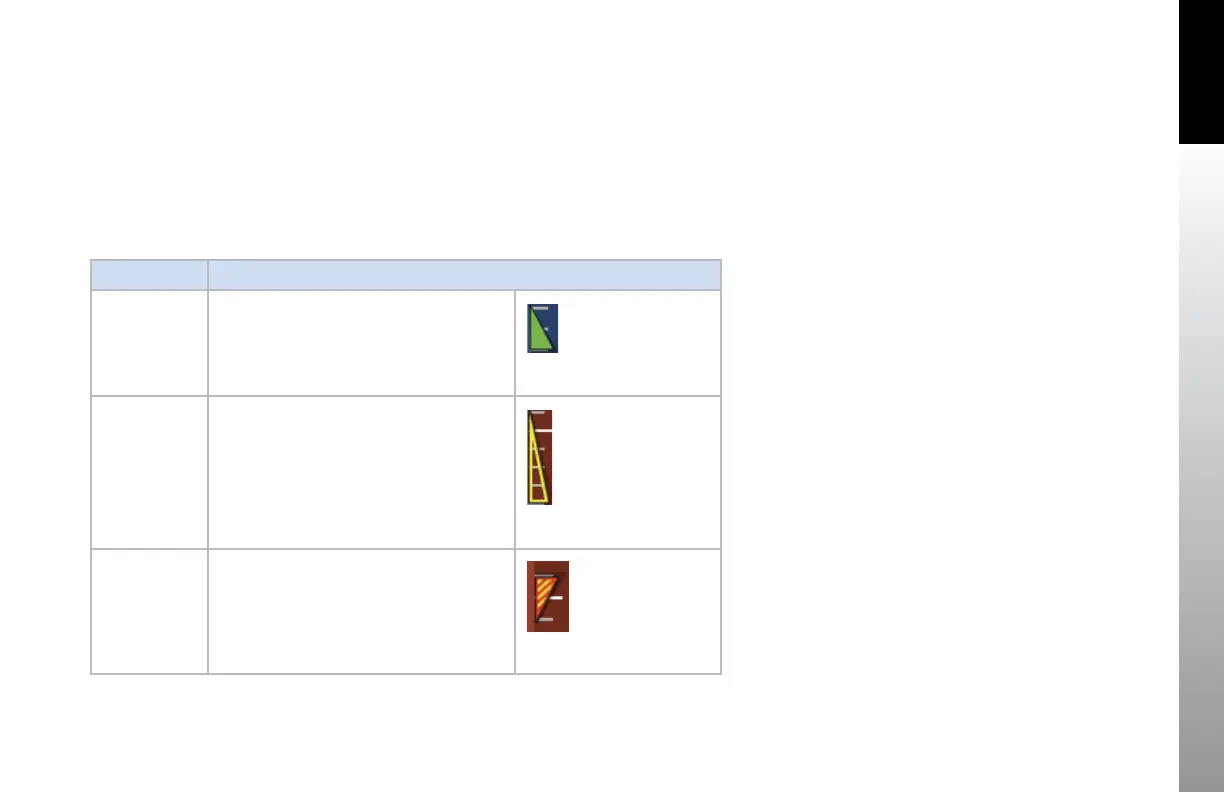

Marker Color Description
Green
The aircraft is 500 feet above selected
MINIMUM.
Figure 4-24
Minimums Green Triangle
Hollow Yellow
The aircraft is 100 feet to 200 feet above the
selected MINIMUM.
The marker base is at 100 feet above
MINIMUM, and the tip is at 200 feet above
MINIMUM.
Figure 4-25
Minimums Hollow Yellow Triangle
Red and
Yellow stripes
The aircraft is at the selected MINIMUM.
Figure 4-26
Minimums Red/ Yellow Striped Triangle
Table 4-3
Selected MINIMUMS Markers
