2.3 Menu
The MENU button is used to access the EFD1000 PFD’s Menu to change options and
customize how information is display on the PFD .
Press the MENU button to activate the Menu. The current menu page name is shown
on the bottom center of the Navigation Display. Directly below the menu page name
is a segmented menu page bar, giving a graphical representation of the current page
relative to the total number of menu pages. The current menu page number is shown
in the lower right corner of the Navigation Display.
The Menu operates either in the Navigation or Edit mode, as indicated by the label
directly above the Right Knob. When the MENU button is first pressed, the Main Menu
is in the Navigation mode, indicated by the magenta label SEL PAGE directly above
the Right Knob (Figure 2-6). When in the Navigation mode, rotating the Right Knob
navigates through the menu pages. Rotate the Right Knob clockwise to advance to
the next menu page, counterclockwise to return to the previous page.
Each Menu Page has up to five selectable hot keys, each adjacent to one of the five
Hot Keys which double as Menu Keys when the Menu is active (Item 1 of Figure 2-7
and Table 2-4). After navigating to the Menu Page containing the option you want to
change, press the Menu Key adjacent to that option label, which initiates the Menu’s
Edit mode. When the Menu is in the Edit mode, the label, EDIT VALUE, is shown above
the Right Knob in magenta (Figure 2-8), and the label of the item selected for editing
is also shown in magenta. Rotate the Right Knob to change the value of the selected
item. When finished, either select another displayed Menu option to change , or press
the Right Knob to exit the Edit mode and return to Navigation mode to select another
Menu Page.
When you are finished changing Menu options, press the MENU Button to exit.

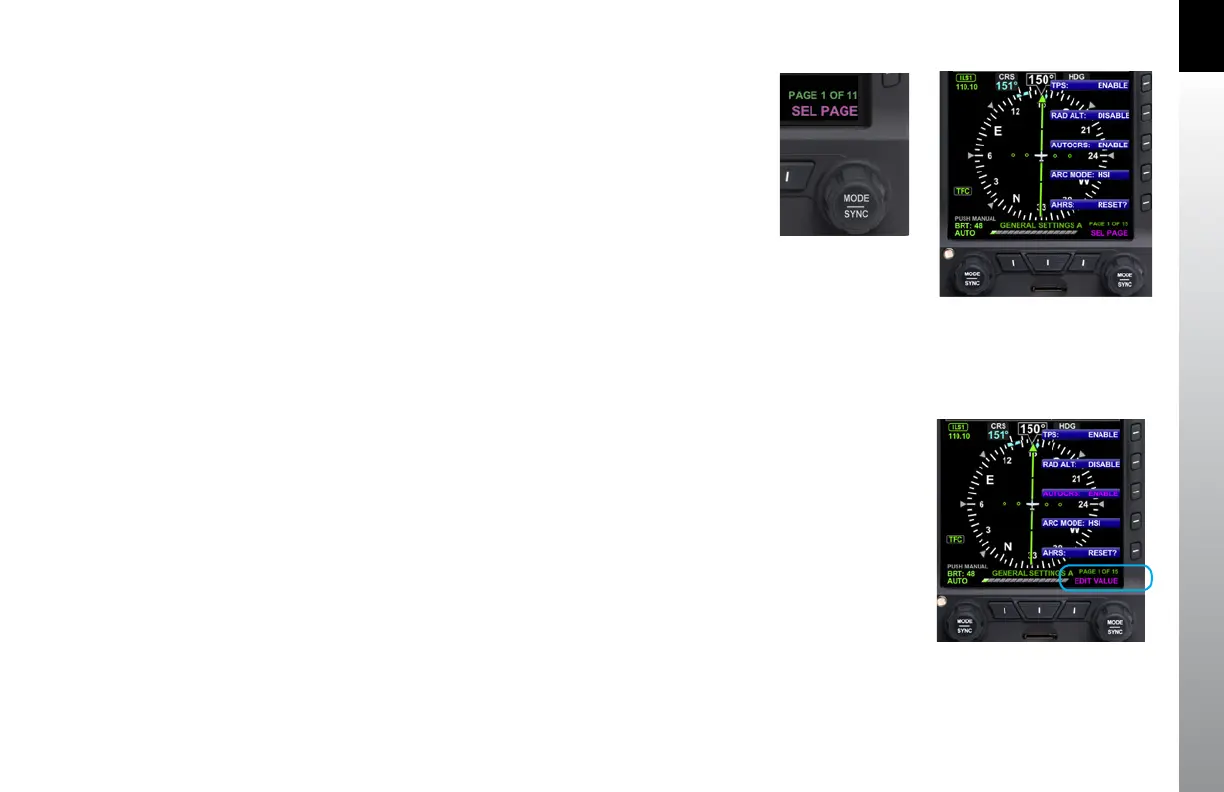

Figure 2-7
Menu Display
Figure 2-6
Menu Navigation Mode
Figure 2-8
EDIT VALUE Displays Above Right Knob
