NOTE
The FPM shows the predicted path of the aircraft and
lags in dynamic maneuvers.
4.10.6.3 Flight Path Marker Coloring
The Flight Path Marker (FPM) has a terrain warning function when a collision with terrain
or an obstacle is predicted. The FPM will change shape and color, depending on the
predicted time to collision. The FPM colors are green, white, amber, and red.
• A green FPM indicates normal enroute operation (Figure 4-143).
• A white FPM indicates operation with the Airport Area with reduced terrain
coloring and alerts (Figure 4-144).
• An amber FPM is a Caution alert predicting terrain/obstacle collision within 45
seconds if the current flight path is maintained (Figure 4-145).
• A red FPM is a Warning alert predicting terrain/obstacle collision within 30 seconds
if the current flight path is maintained (Figure 4-146).

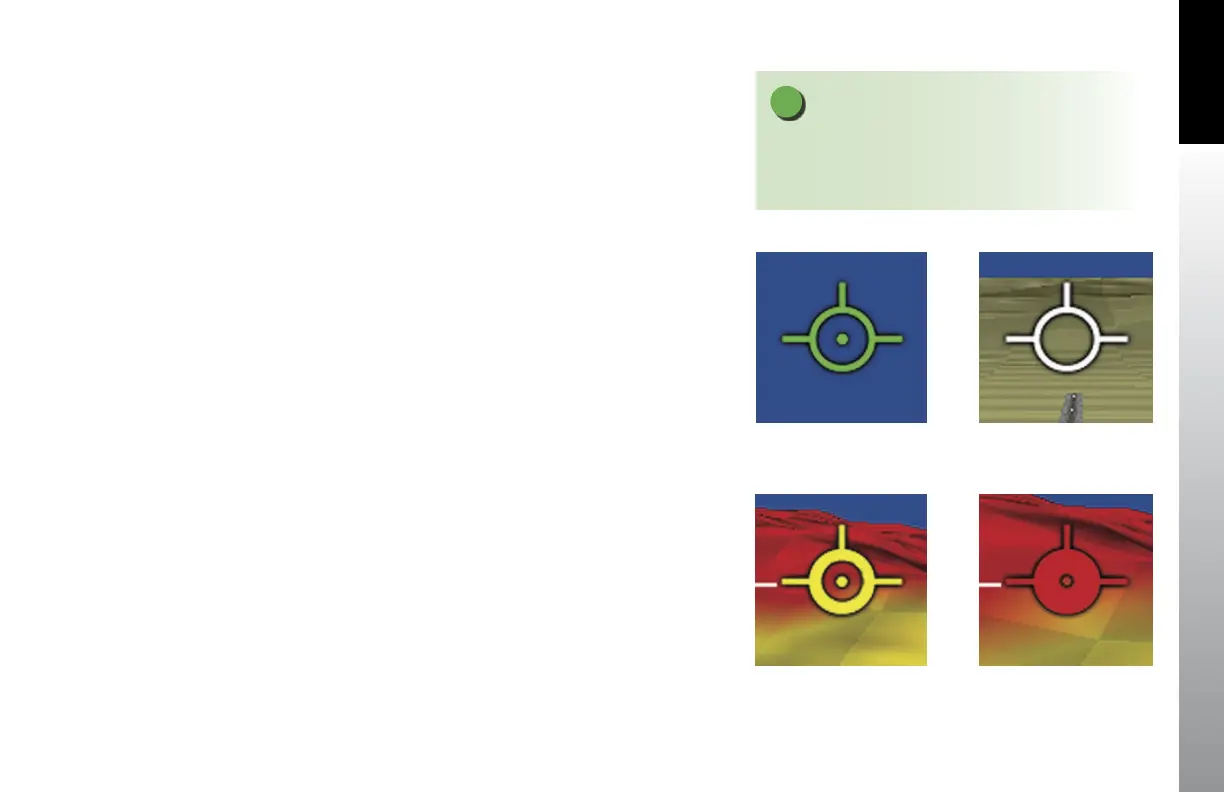

Figure 4-143
Green FPM
Figure 4-145
Amber FPM
Figure 4-144
White FPM
Figure 4-146
Red FPM
