CHAPTER 2 CONTROLS AND DISPLAY
EFD1000 PRO MAX PFD Pilot’s Guide
Page 2-2
091-00005-002 () EFD1000 PRO MAX PFD Pilot’s Guide
Page 2-3
091-00005-002 ()

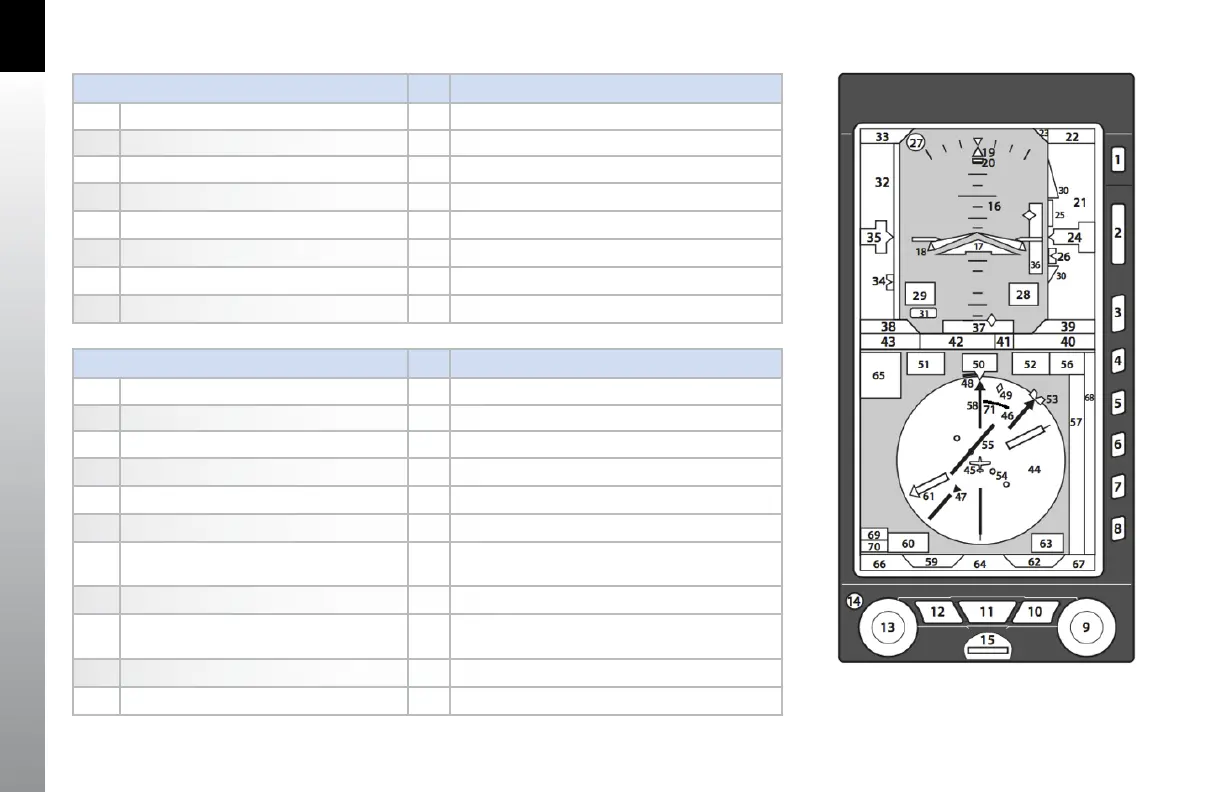

Figure 2-2
Pro PFD MAX Display Elements
CONTROLS
1 Reversion and Power Button 9 Right Knob
2 Range Buttons 10 Right Button, Double-Line Bearing Pointer Source Select
3 Menu Button 11 CDI Navigation Source Select Button (Middle Button)
4 Hot Key Menu select 12 Left Button, Single-Line Bearing Pointer Source Select
5 Feature/Mode Selection Keys 13 Left Knob
6 Feature/Mode Selection Keys 14 Automatic Dimming Photocell
7 Feature/Mode Selection Keys 15 microSD Card Slot
8 BARO
ATTITUDE DISPLAY
16 Attitude Display 27 Decision Height Annunciation
2
17 Aircraft Reference Symbol 28 Selected Minimums Field
18 Single-Cue Flight Director
1
29 Radio Altitude
2
19 Roll Pointer 30 MINIMUMS Marker
20 Slip/Skid Indicator 31 LDI Navigation Source Annunciation
21 Altitude Tape 32 Airspeed Tape
22 Selected Altitude Field (controls the
Altitude Bug)
33 Selected Airspeed Field (controls the Airspeed Bug)
23 Altitude Alerter 34 Airspeed Bug
24
Numerical Altitude Indication, Altitude
Drum/ Pointer
35 Numerical Airspeed Indicator, Airspeed Drum/ Pointer
25
Altitude Trend Vector 36 Vertical Deviation Indicator (VDI)
26
Altitude Bug 37 Lateral Deviation Indicator (LDI)
