CHAPTER 2 CONTROLS AND DISPLAY
EFD1000 PRO MAX PFD Pilot’s Guide
Page 2-2
091-00005-002 () EFD1000 PRO MAX PFD Pilot’s Guide
Page 2-3
091-00005-002 ()

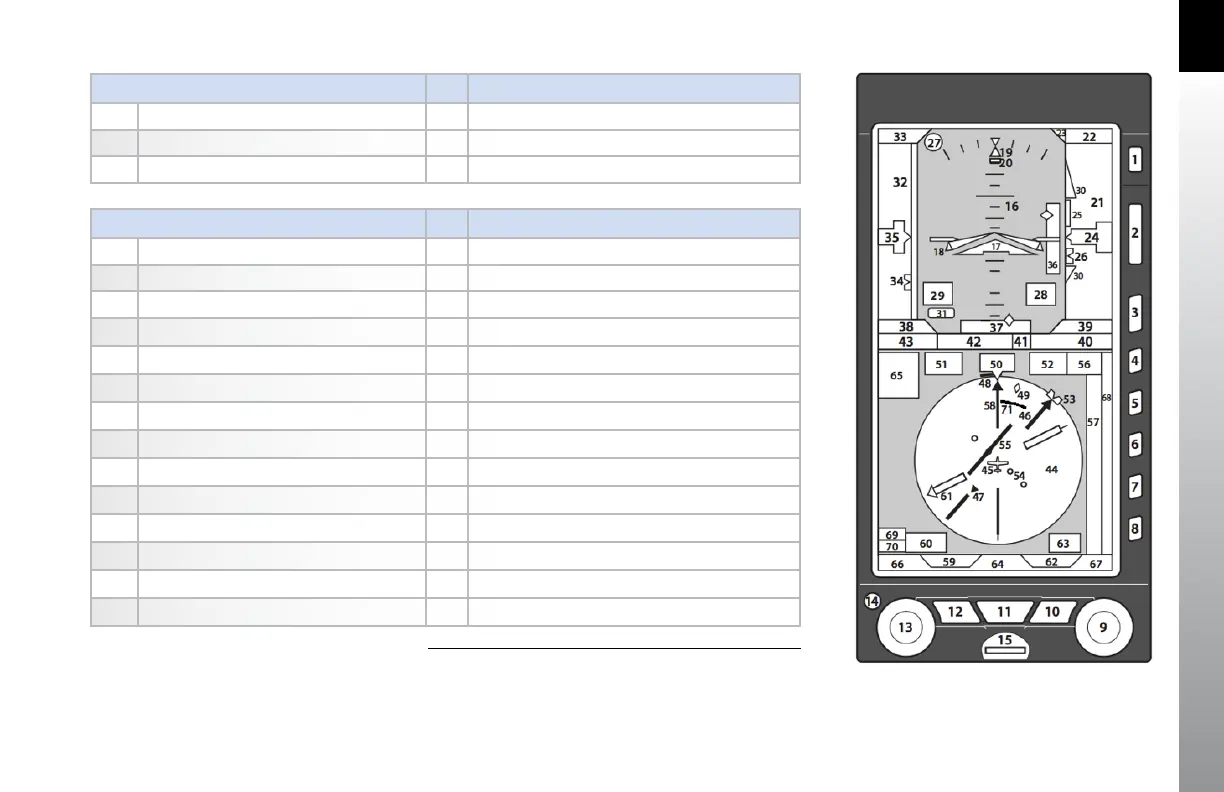

Figure 2-2
Pro PFD MAX Display Elements
Table 2-1
PFD Components
DATA BAR
38 True Airspeed (TAS) or Mach number 41 Wind Direction Arrow
39 Barometric Pressure Setting Field 42 Outside Air Temperature (OAT)
40 Wind Direction and Speed 43 Ground Speed
NAVIGATION DISPLAY
44 Navigation Display 58 Single-Line Bearing Pointer
45 Ownship Symbol 59 Single-Line Bearing Pointer Source
46 Course Pointer 60 Single-Line Bearing Pointer Source Info Block
47 TO/FROM Indicator 61 Double-Line Bearing Pointer
48 Rate of Turn Indicator 62 Double-Line Bearing Pointer Source
49 Ground Track Marker 63 Double-Line Bearing Pointer Source Info Block
50 Numerical Direction Indicator 64 Selected CDI Navigation Source
51 Selected Course (CRS) Field 65 Selected CDI Navigation Source Information Block
52
Selected Heading Field 66 Left Knob State
53
Heading Bug 67 Right Knob State
54 Course Deviation Scale
68 Hot Key Label
55 Course Deviation Indicator 69
Range
56
Vertical Speed Numerical Value
70
Declutter Level
57
Vertical Speed Tape
71
Altitude Intercept Arc
1. With compatible autopilots
2. With compatible radar altimeters
To Next Page
