When available, the bearing and distance to station is displayed on the third line of the
information block in the format dddº/nnnn or dddº/nn.n, where ddd is the bearing in
degrees and nnnn or nn.n is the distance in nautical miles (e.g., 360º/1103 or 322º/3.2,
shown in (Figure 4-62 ).
When available, the estimated time enroute information is displayed on the fourth line
of the information block in the format h:mm (where h is hours and mm is minutes).
When CDI Navigation Source data is invalid or unavailable from a configured navigation
source, the HSI course deviation bar and the TO/FROM indicator are removed from the
display (Figure 4-63). Additionally, the selected CDI Navigation Source label in the CDI
Source Information Block is slashed with a red line (Figure 4-64).
• When information for a configured and selected navigation source is
CDI Source Information Block is blank (Figure 4-65)

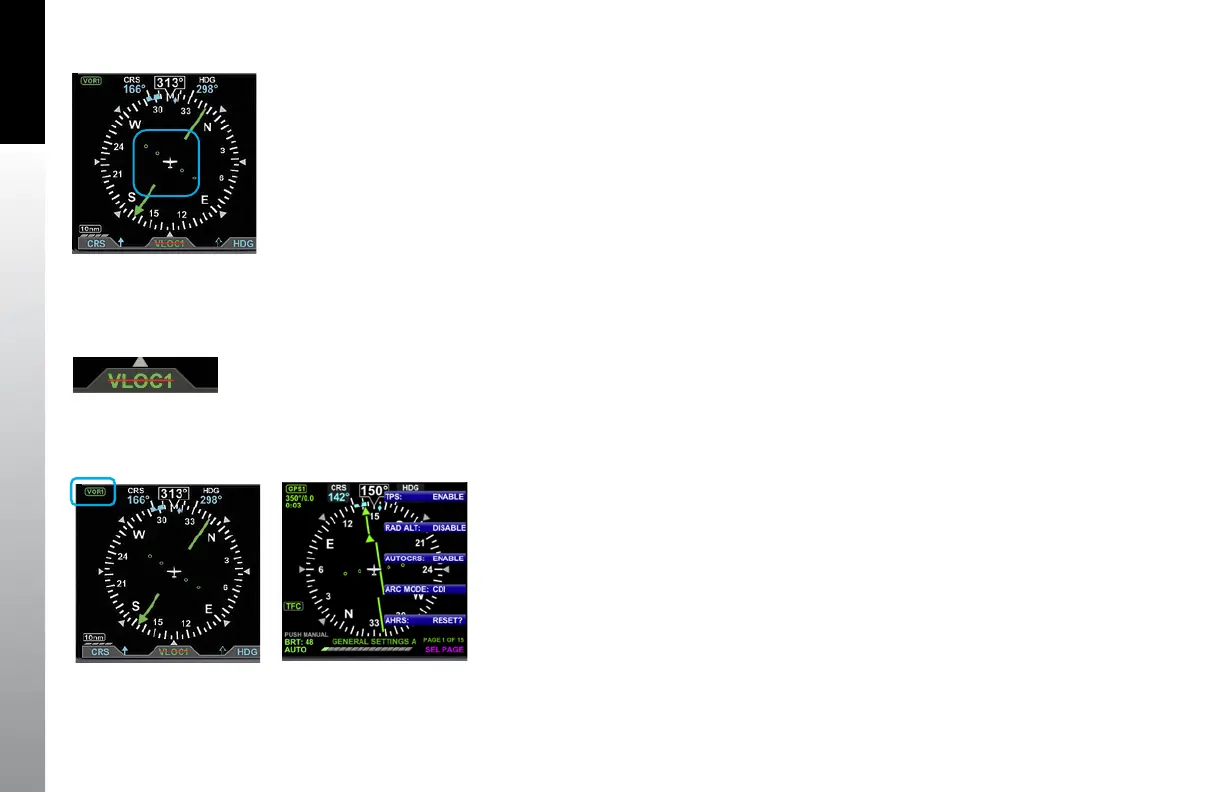

Figure 4-64
Invalid CDI Navigation Source Label
Figure 4-63
No Course Deviation Bar or TO/FROM
Indicator
Figure 4-65
CDI Source Information Blank Block
Figure 4-66
Menu, GENERAL SETTINGS
To Next Page
