CHAPTER 4 REFERENCE GUIDE
EFD1000 PRO MAX PFD Pilot’s Guide
Page 4-35
091-00005-002 ()
Radio Mode Information Block Label
GPS GPS1 or GPS2
VHF
VOR VOR1 or VOR2
Localizer LOC1 or LOC2
Localizer Back LOC1(BC) or LOC2 (BC)
ILS ILS1 or ILS2
Table 4-6
VHF NAV Radio Modes
Selected CDI Navigation Source
Waypoint identifier or tuned frequency (when available)
Bearing (in degrees)/Distance (in Nautical Miles) to waypoint or navaid
(when available)
Estimated Time Enroute (Hours:Minutes)
If both the station identifier and the tuned frequency of the associated VHF NAV
radio are available, only the station identifier is displayed on the second line of the
information block. In most cases, however, only the tuned frequency is available for
display from integrated GPS/VLOC devices.

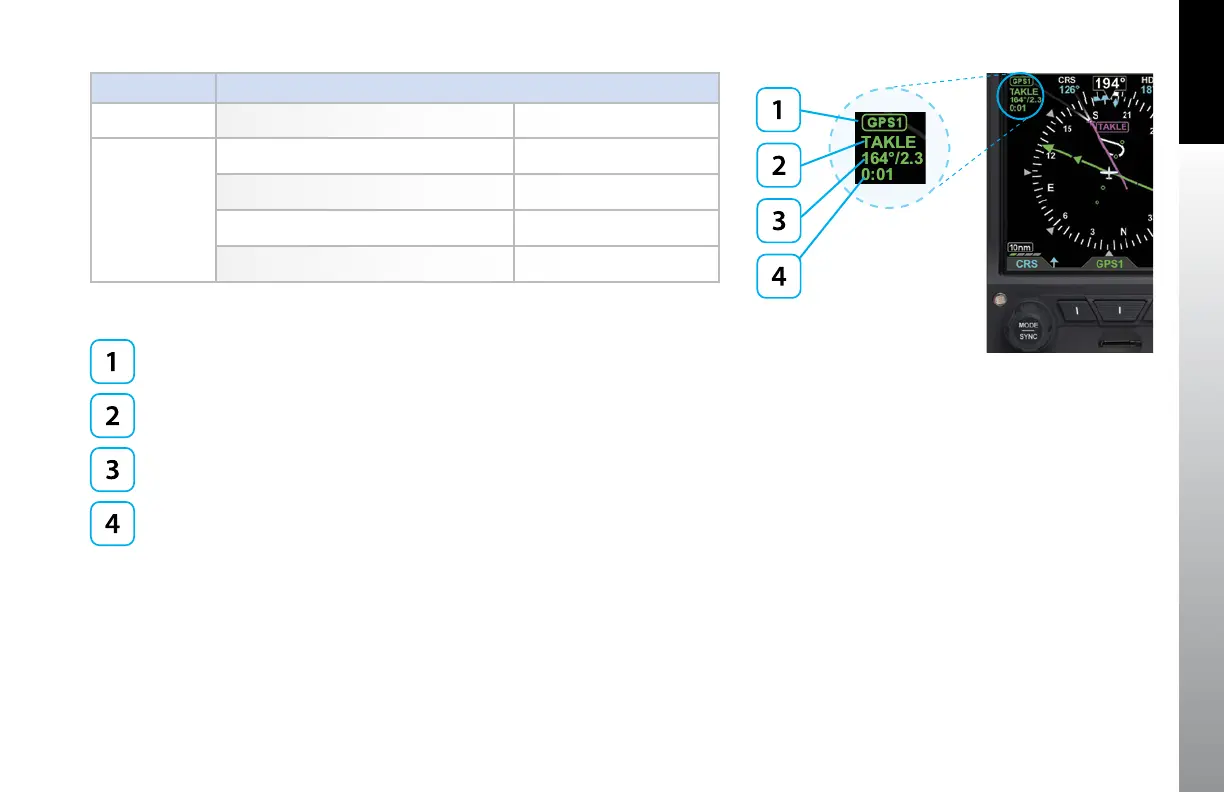

Figure 4-62
CDI Source Information Block
