2.4 Mounting the Phone
The phone can be mounted on a:
n
Desk (see Section 2.4.1 below)
n
Wall (see Section 2.4.2 on page 16)
See also https://www.youtube.com/watch?v=oGe9STB9lFE to assemble the base stand.
2.4.1 Mounting the Phone on a Desktop
This section shows how to place the phone on a desk or flat surface.
Ø To mount the phone on a desk or flat surface:

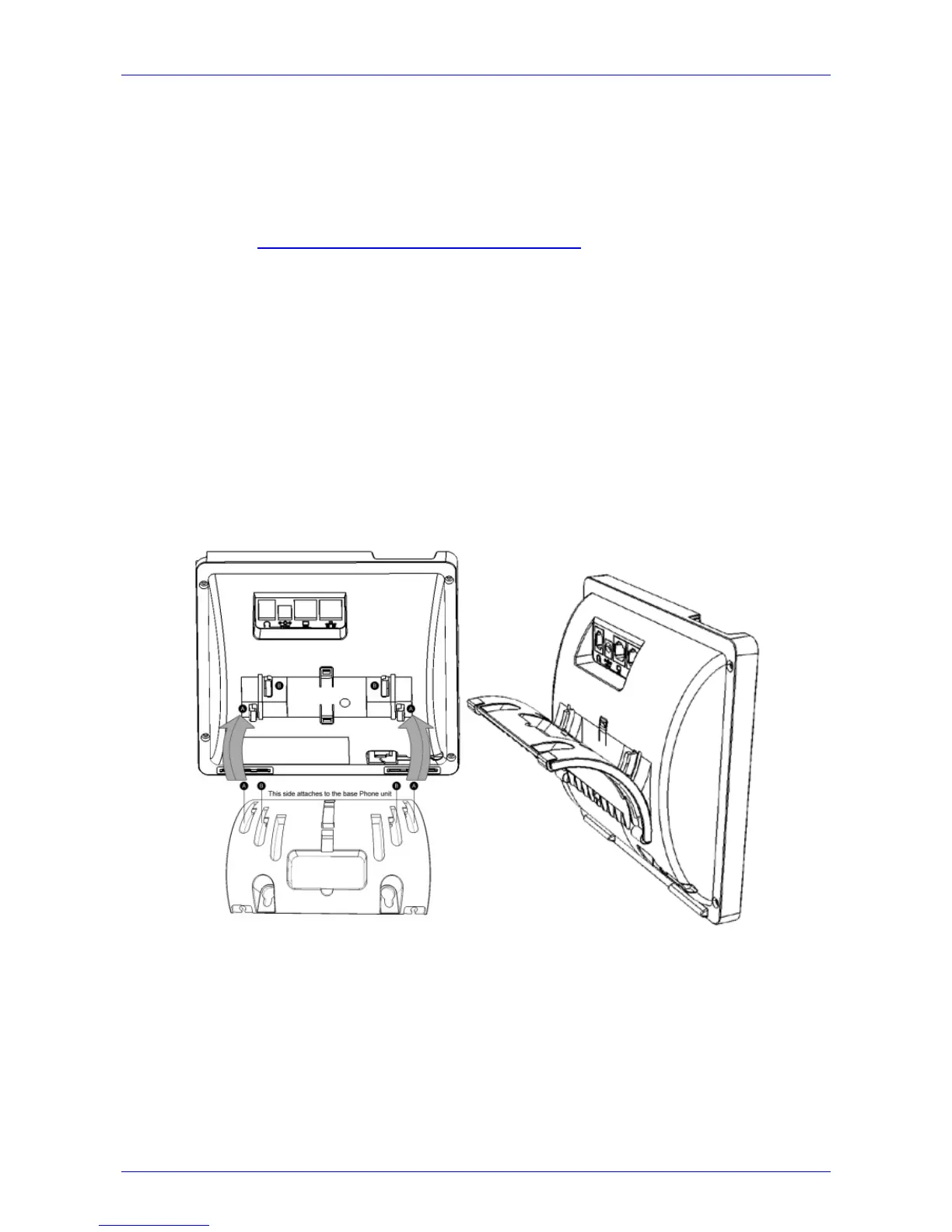

1. Off-hook the handset (if on-hook) and place the phone upside down, i.e., base-up, on your
desktop.
2. On the phone's base, identify outer rails.
3. On the phone's stand, identify outer notches.
4. Invert the stand and align its outer notches with the base's outer rails.
5. Insert the stand's outer notches into the base's outer rails and slide the notches along the
rails until the stand click-locks into the base.
6. Revert the phone and stand it on the desktop.
2.4.1.1 Routing the Handset Cable
The phone features a groove for routing the handset cable.
