73

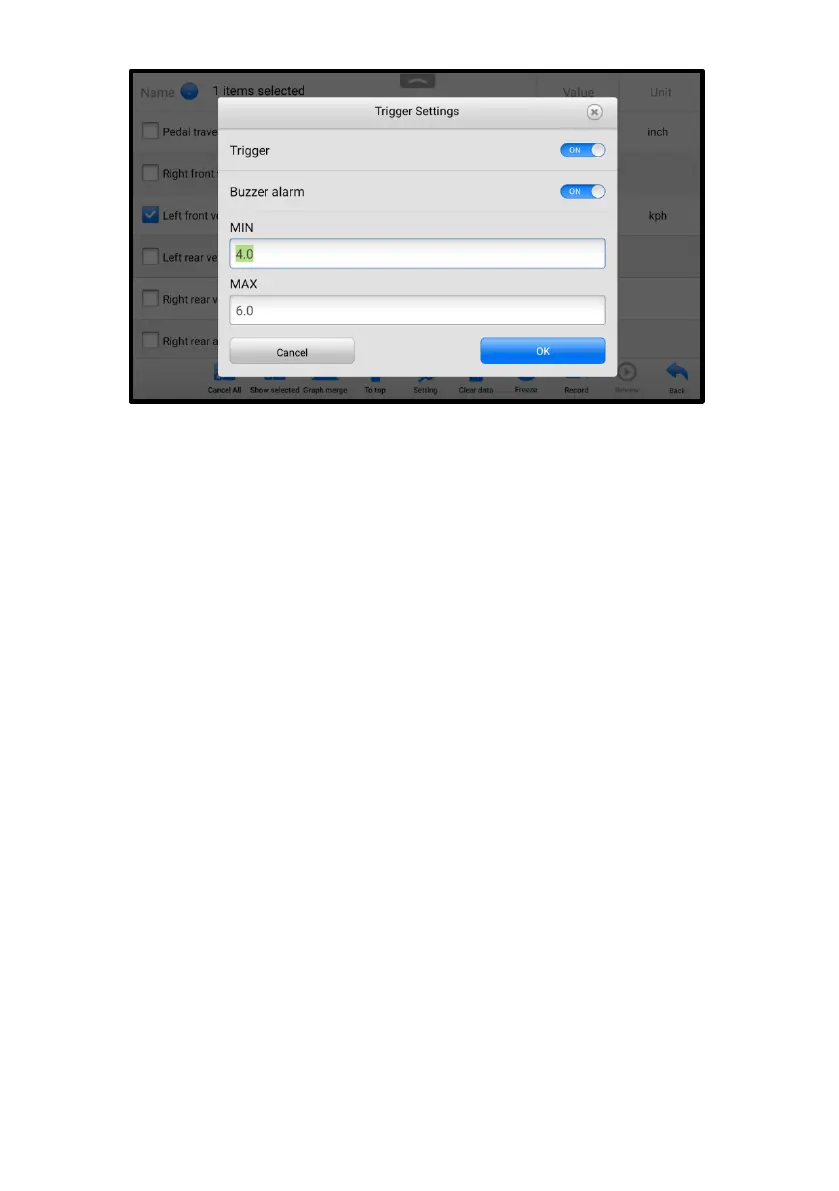

Figure 5-20 Trigger Settings Screen
Two buttons and two input boxes are available in the Trigger Settings screen.
a) Trigger — switches the trigger on or off. The trigger is ON by default.
b) Buzzer Alarm — switches the alarm on or off. The alarm function makes a
beeping sound as an alert when the data reading reaches the preset minimum
or maximum point. The buzzer alarm will only sound at the first trigger.
c) MIN — tap this input box to enter the required lower limit value.
d) MAX — tap this input box to enter the required upper limit value.
➢ To set a trigger
1. Tap the drop-down button on the right side of a parameter name to open a
submenu.
2. Tap the Trigger button on the right side of the submenu to open the Trigger
Settings screen.
3. Tap the MIN value input box to enter the required minimum value.
4. Tap the MAX value input box to enter the required maximum value.
5. Tap OK to save the settings and return to the Live Data screen, or tap Cancel
to exit without saving.
When the trigger is successfully set, a trigger mark will display in front of the parameter
name. The mark is gray when it is not triggered, and displays orange when triggered.
Moreover, two horizontal lines display on each of the data graphs (when Waveform
Graph Mode is applied) to indicate the alarm point. The limit lines are shown in different
colors to differentiate them from the parameter waveforms.
