To wire a third-party device
BACnet: You can wire a third-party BACnet device to the G5CE's Gig-E port, Port S1, or Port S2. See the
BACnet Integration Guide for the G5CE.
Modbus: You can wire a third-party Modbus TCP/IP device (client or server) to the G5CE's Gig-E port or
a Modbus master or slave device to Port S1 or Port S2. See Modbus Integration Guide for the G5CE.
Wiring devices to the G5CE's Rnet port
You can wire the following devices to the G5CE's Rnet port in a daisy-chain configuration:
• ZS sensors
• Wireless Adapter that communicates with wireless sensors
• Equipment Touch
• OptiPoint™ interface
See the device's Technical Instructions for complete wiring instructions.
NOTES
• ZS sensors, a Wireless Adapter, and an Equipment Touch can share the same Rnet.
• The Rnet communicates at a rate of 115.2 kbps.
To communicate through the BACnet/IP Service Port network
You can connect to the Service Port to access your network through the WebCTRL® application.

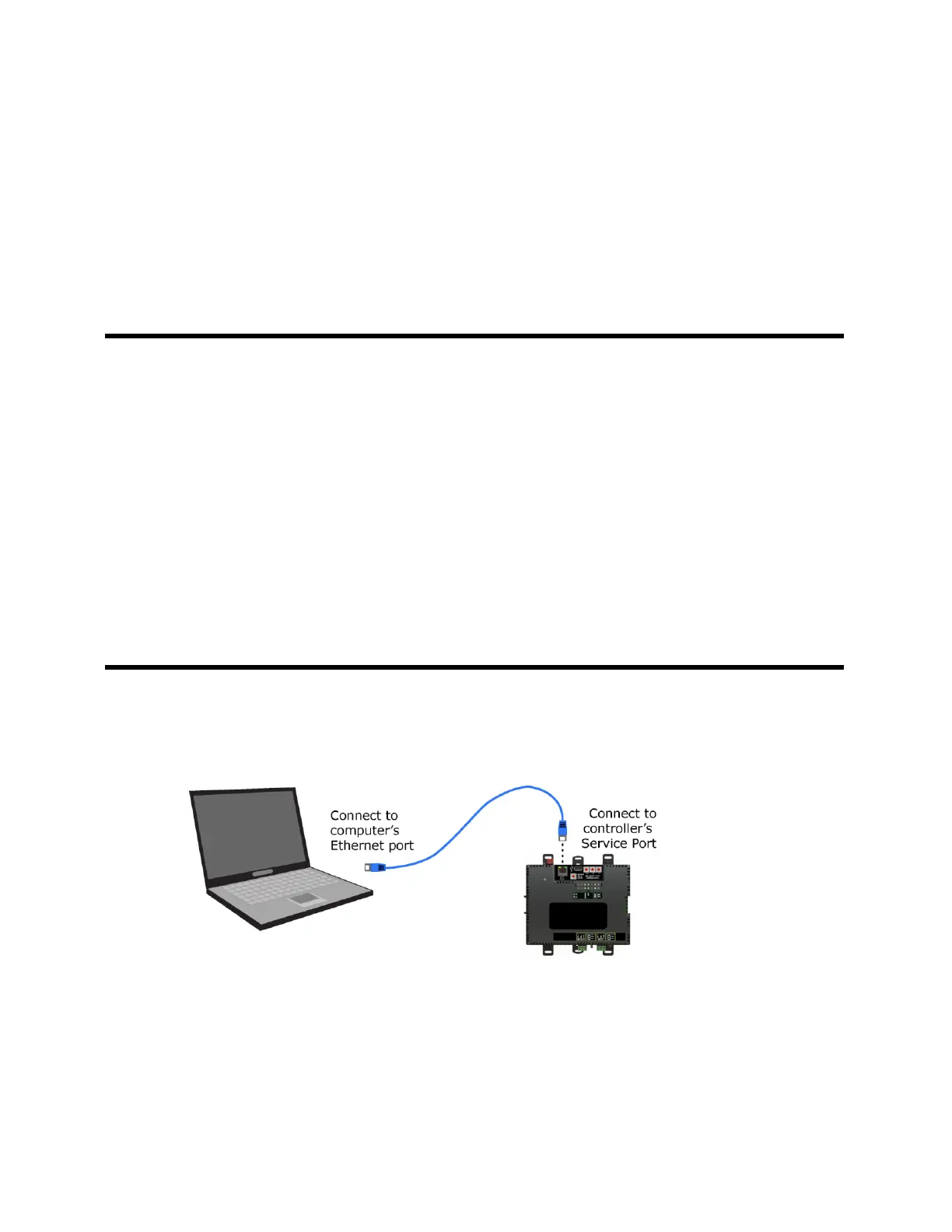

1 Connect an Ethernet cable from a computer to the controller as shown below.
2 Turn off the computer's Wi-Fi if it is on.
3 If your computer uses a static IP address, use the following settings:
○ Address: 169.254.1.x, where x is 2 to 7
○ Subnet Mask: 255.255.255.248
○ Default Gateway: 169.254.1.1
4 If it uses a DHCP address, leave the address as it is.
