Troubleshooting
If you have problems mounting, wiring, or addressing the G5CE, contact Automated Logic® Technical
Support.

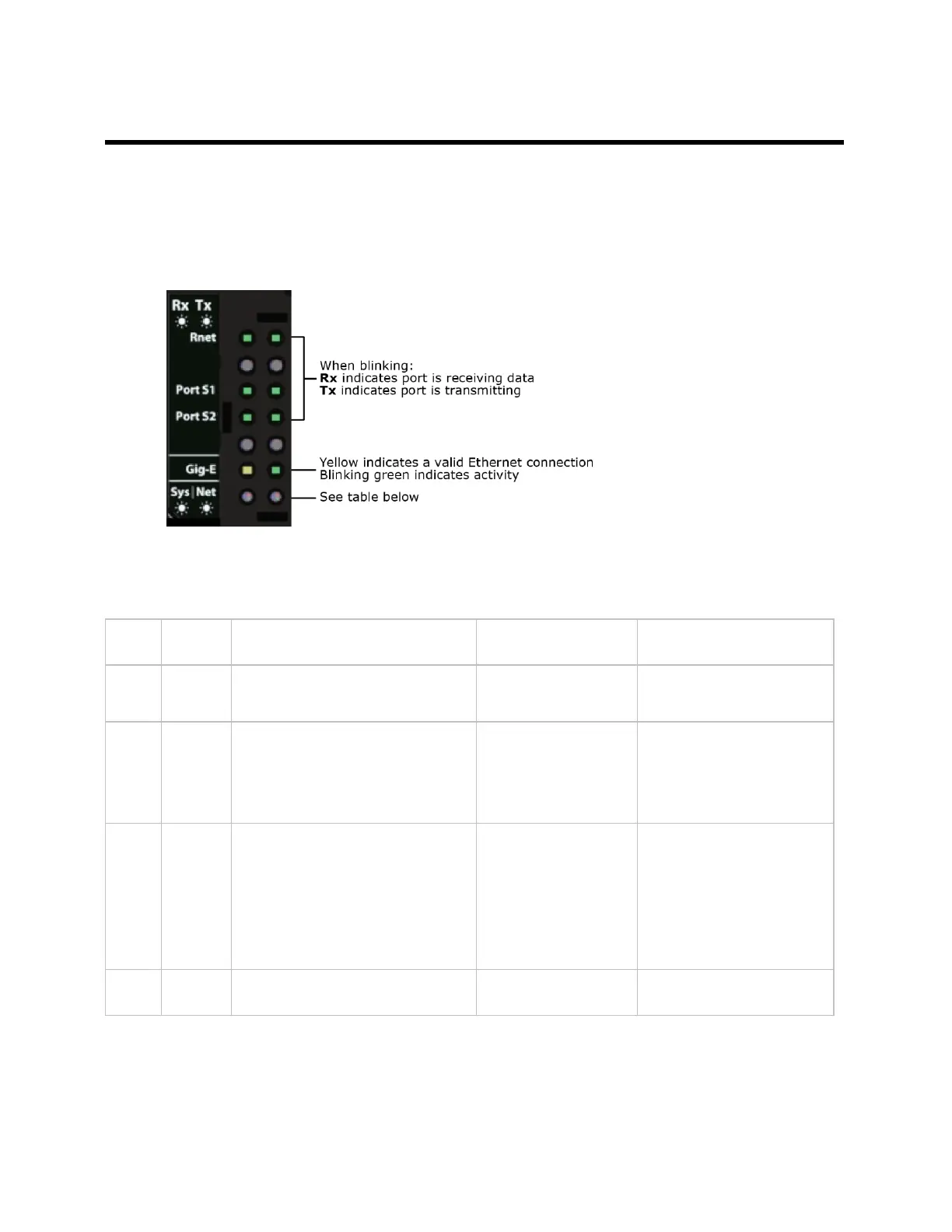

LEDs
NET (Network Status) Tricolor LED
Color
Pattern
Condition
Message in Module
Status
Possible Solutions
Red
On
Ethernet connection problem
No Ethernet Link
• Connect Ethernet Cable
• Check other network
components
Red
1 blink
One of the following BACnet/IP
(Ethernet) DLL reporting issue:
• Unable to create tasks
• Unable to open socket for
BACnet port
BACnet/IP error
Cycle power
Red
2 blink
Current default IP address does
not match the current rotary switch
setting
Default IP address
mismatch
• Use the controller setup
Ports tab to set the IP
address
• Cycle power to accept
new IP address
• Change rotary switches
to match current
default IP address
Red
3 blink
Unable to get address from DHCP
Error unable to find
DHCP server
Check with network
administrator
