OptiFlex™ BACnet Integrator (part no. G5CE) Automated Logic Proprietary and Confidential A Carrier Company. © 2022 Carrier.
Rev. 6/9/2022 All rights reserved.
22
BACnet Router Properties
The BACnet Router Properties page provides the following information plus the items described in the
table below:
• The G5CE's Ethernet MAC address
• Whether Port S1 is being used for ARCNET, MS/TP, Modbus, or is disabled
• Whether Port S2 is being used for MS/TP, Modbus, or is disabled
The address that is set on the three rotary switches.
For Port S1—The address that is set on the three rotary switches.
For Port S2—A unique address on the MS/TP network.
To enable autobaud, select Yes. This device will receive its baud rate from the
master device.
Set this to a baud rate that all other devices on the MS/TP network are set to.
To increase MS/TP performance, enter the highest address used on the
MS/TP network for a master controller. This number must be less than or
equal to 127.
This is the maximum number of information messages a controller may
transmit before it must pass the token to the next controller. Valid values are
1 to 255.
TIP Set Max Info Frames to a number in the range 20 to 100 so that the
router does not become a bottleneck for traffic being routed from a
high-speed network to the slower MS/TP network.

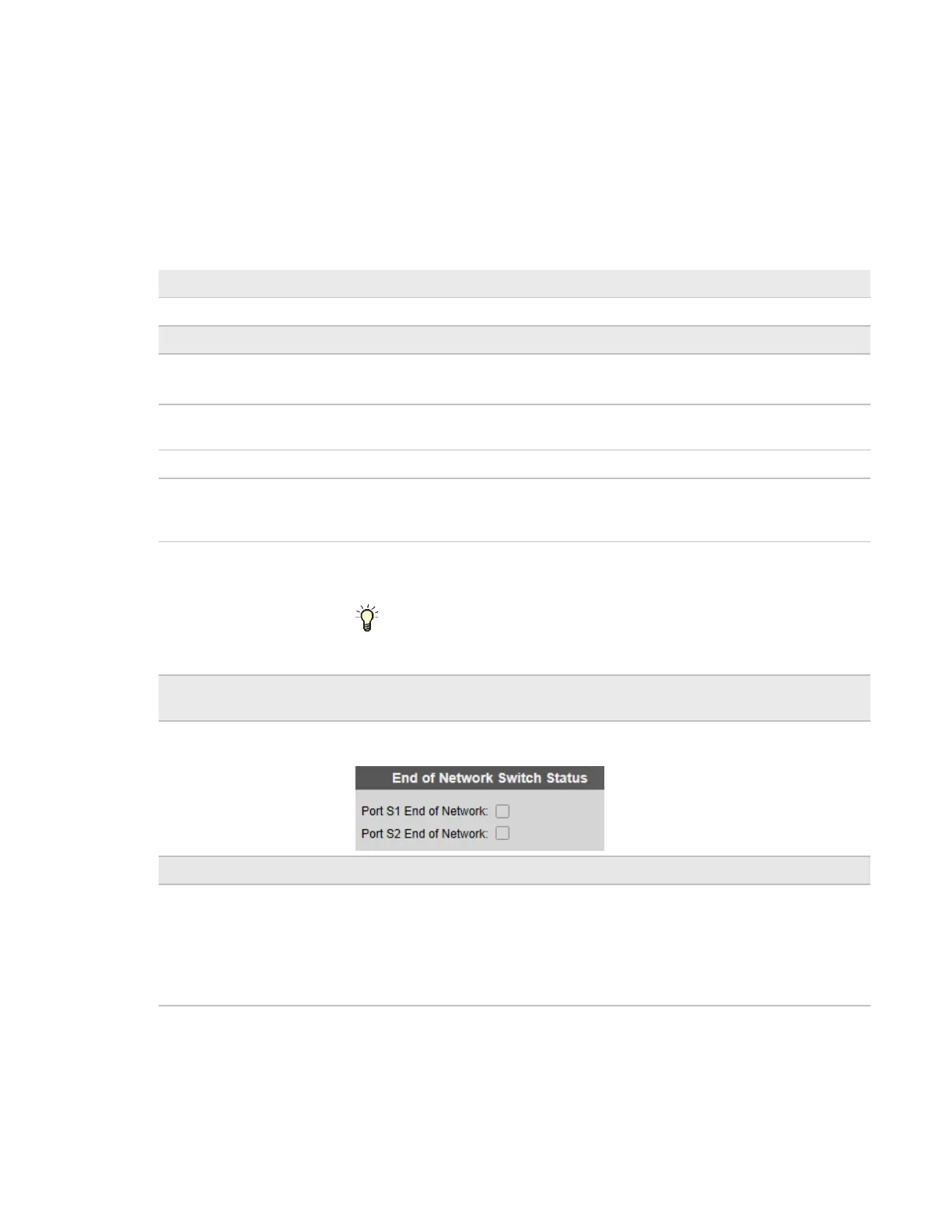

End of Network Switch
Status
This displays the state of the End of Net? termination switch for the Port S1
and Port S2 networks.
These numbers must match the numbers defined on controller setup Ports
tab. See To set up the controller through the Service Port (page 29). Check
Autogenerated only if you plan to let the controller autogenerate the network
number.
NOTE When downloaded from the WebCTRL® application, these numbers
match those set using SiteBuilder.
